H60.XYZTR5SK Hexapods, 80μmCurrent Location:Product Homepage >> 6 Axes Nanopositioner>>H60.XYZTR5SK Hexapods, 80μm
  • Introduction
  • Feedback

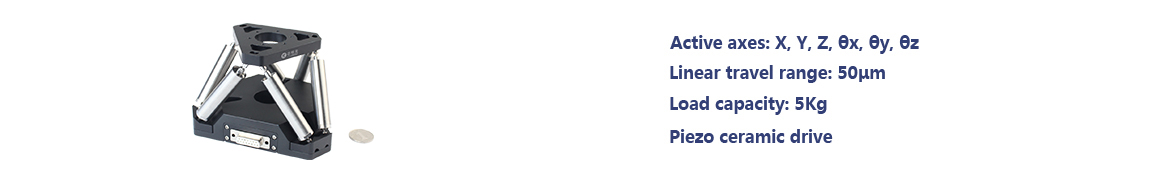

    H60 Piezo Hexapod is a piezo stage with 6-axis motion of θx, θy, θz, X, Y, and Z. 6-axis movement in space is realized by the coordinated expansion and contraction of six piezo actuators. The closed-loop model has high positioning accuracy. It is suited for applications such as microelectronics precision machining, test, etc.


Characteristics


 θx, θy, θz, X, Y, Z motion

 Closed-loop control with high accuracy

 Ultra small coupling

 No accumulation of error


Piezo Drive

Motion Directions

Performance Test

Travel vs Voltage Curves

Angular Motion Resolution Curve


Typical Applications


 6 axes precise positioning

 Semiconductor equipment

 Lithography

 Wafer inspection/micromachining

 Medical

 Aerospace





    Technical data

Models

S - closed loop

K - open  loop

H60.XYZTR5S

H60.XYZTR5K

Units

Active axis

X, Y, Z, θx, θy, θz

X, Y, Z, θx, θy, θz



Drive control

6 driving channels 6 sensing channels

6 driving channels



Linear travel in X, Y (0~120V)

±40

±40

µm±20%

Linear travel in Z (0~120V)

±27.5

±27.5

µm±20%

Tilt angle in θx, θy(0~120V)

±0.6(≈±123″)

±0.6(≈±123″)

mrad±20%

Tilt angle in θz(0~120V)

±0.8(≈±165″)

±0.8(≈±165″)

mrad±20%

Tilt resolution, θx,θy

Better than 0.5(0.1″ )

Better than 0.5(0.1″ )

μrad

Tilt resolution, θz

Better than 0.5(0.1″ )

Better than 0.5(0.1″ )

μrad

Resolution in XY

Better than 0.5

Better than 0.5

nm

Resolution in Z

Better than 0.5

Better than 0.5

nm

Closed-loop linearity

Better than 0.1

-

%F.S.

Closed-loop repeatability

Better than 0.1

-

%F.S.

Unloaded resonant frequency

1

1

kHz±5%

Structure

 Hexapods

 Hexapods



Driving source

Piezo actuators

Piezo actuators



Load capacity

5

5

kg

Mass

1300

1300

g±5%

    Drawings(Click on the picture to enlarge it)

    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

     3D diagram presentation
