- Introduction
- Feedback
Characteristics
|
|
|
|
|
|
|
|
|
|
|

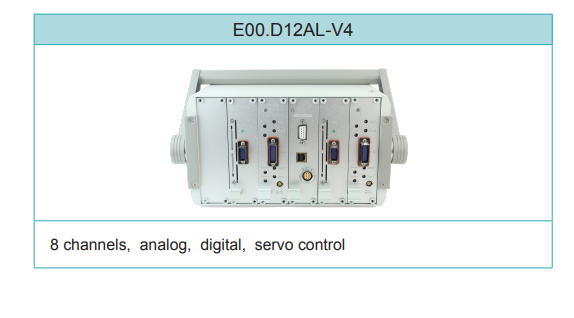

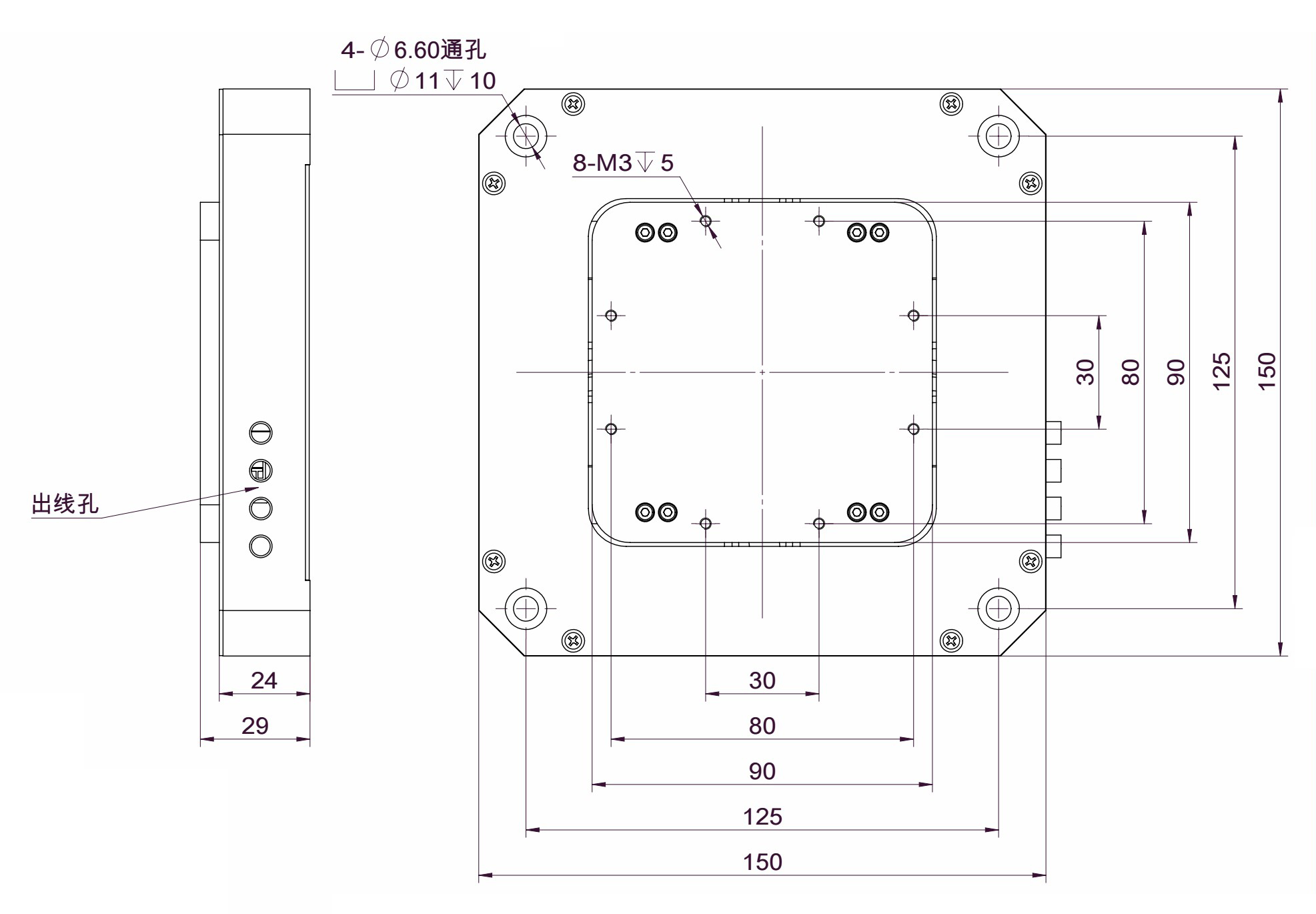

Recommended Controllers  |
| Technical Data | ||||
|
Type |
P65.XY200Z50S
|
P65.XY200Z50K |
Units |
|
|
Active axes |
X,Y,Z |
X,Y,Z |
|
|
|
Drive control |
8 driving channels 8 sensing channels |
8 driving channels |
|
|
|
Nominal travel range(0~120V) |
XY160/Z40 |
XY160/Z40 |
μm±10% |
|
|
Max.travel range(0~150V) |
XY200/Z50 |
XY200/Z50 |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
XY3/Z2 |
XY1/Z0.6 |
nm |
|
|
Linearity |
XY0.015/Z0.007 |
- |
%F.S. |
|
|
Repeatability |
XY0.017/Z0.006 |
- |
%F.S. |
|
|
Pitch/Yaw/Roll |
＜10 |
＜10 |
μrad |
|
|
Unloaded resonant frequency |
X260/Y220/Z280 |
X260/Y220/Z280 |
Hz±20% |
|
|
Resonant frequency@500g |
150 |
150 |
Hz±20% |
|
|
Step time |
100@500g |
10 |
ms±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
|
Vertical |
0.1 | 0.1 | ||
|
Inverted |
0.2 | 0.2 | ||
|
El. capacitance |
XY13.6/Z3.2 |
XY13.6/Z3.2 |
μF±20% |
|
|
Material |
Steel,Al |
Steel,Al |
|
|
|
Mass(Cable included) |
1.24 |
1.24 |
kg±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
|
|
