P06 Amplified Piezo ActuatorsCurrent Location：Product Homepage >> Amplified Piezo Actuator>>P06 Amplified Piezo Actuators
  • Introduction
  • Feedback

Characteristics


 30μm to 1.9mm travel

 Blocking force to 1000N

 Unloaded resonant frequency to 3900Hz

 Nanoscale resolution


Applications


视光学：

 Probe scanning

 Optical mirrors positioning

 Optical switch

 Shutter

 Wafer testing

 Astronomy

 Focus positioning

 Laser cavity tuning

 Fiber coupling and deformation

 FBG deformation

 Chopper

 Interferometer

 Piston machining

 Damping



   Technical Data

Type

Active axes

Stroke *

[μm]±20%

Unloaded resonant

frequency[Hz]±20%

Blocking force

[N]

Stiffness

[N/μm]±20%

El. capacitance

[μF]±20%

Mass

[g]±5%

Material

Sensor

Drawing

Specs

Step

P06.30KA

X

30

3150

6

0.2

0.075

-

Steel

Optional

/

P06.35KA2

X

35

1900

9

0.26

0.17

-

Steel

Optional

/

/

P06.40S/KA5

X

40

3900

76

1.9

0.8

14

Steel

Optional


P06.50KA2

X

50

2000

7

0.14

0.125

-

Steel

Optional

/

/

P06.60S/KA5

X

60

2500

43.2

0.72

1.8

29

Steel

Optional


P06.70S/KA5

X

70

900

49

0.7

1.8

-

Steel

Optional

/

/

P06.80S/KA5

X

80

700

32

0.4

1.8

-

Steel

Optional

/

/

P06.80S/KA14

X

105

1700

1000

13

44

-

Steel

Optional

/

P06.95S/KA10

X

95

350

540

5.7

21.6

253

Steel

Optional

/

/

P06.100S/KA5

X

100

1850

67.0

0.67

3.6

-

Steel

Optional


P06.100S/KA7

X

100

1950

155.0

1.55

7.2

-

Steel

Optional

/

P06.115S/KA10

X

115

1050

253

2.2

21.6

-

Steel

Optional

/

P06.120S/KA14

X

120

400

54

0.45

29

-

Steel

Optional

/

/

P06.125S/KA5

X

125

1150

25

0.2

3.6

-

Steel

Optional

/

/

P06.130S/KA5

X

130

900

7.8

0.06

1.8

44

Steel

Optional

/

/

P06.150S/KA5

X

150

1250

39

0.26

3.6

22

Steel

Optional


/

P06.180S/KA5

X

180

750

18

0.1

3.6

-

Steel

Optional

/

/

P06.200S/KA3

X 200 800 5 0.025 0.7 - Ti Optional / / /

P06.200S/KA5

X

200

850

20

0.1

3.6

-

Steel

Optional


/

P06.200S/KA10

X

200

600

60

0.3

21.6

-

Steel

Optional

/

P06.230S/KA10

X

230

200

59.8

0.26

43

-

Steel

Optional

/

/

P06.240S/KA5

X

240

600

12

0.05

3.6

-

Steel

Optional

/

/

P06.300S/KA10

X

300

450

69

0.23

21.6

-

Steel

Optional

/

/

P06.400S/KA5

X

400

470

16

0.04

3.6

-

Steel

Optional


P06.400S/KA7

X

400

300

16

0.04

10.8

103

Steel

Optional

/

/

P06.500S/KA10

X

500

390

22.5

0.045

43

-

Steel

Optional

/

/

P06.550S/KA14

X

550

210

126.5

0.23

130

-

Steel

Optional

/

P06.700S/KA7

X

600

530

3.6

0.006

10.8

59

Steel

Optional

/

/

P06.900S/KA10

X

720

280

36

0.05

43

-

Steel

Optional

/

/

P06.1000S/KA14

X

800

220

112

0.14

130

-

Steel

Optional

/

/

P06.1500S/KA10

X

1200

160

12

0.01

43

-

Steel

Optional

/

P06.2000S/KA10

X

1900

125

38

0.02

47

170

Steel

Optional

/

* The driving source of P06.30KA/P06.50KA2 is Piezo Stack.


    P06.30KA Drawings（Click on the picture to enlarge it）
点击图片可放大查看
    P06.35KA2 Drawings（Click on the picture to enlarge it）
点击图片可放大查看
    P06.40S/KA5 Drawings
点击图片可放大查看
    P06.50KA2 Drawings
点击图片可放大查看
    P06.60S/KA5 Drawings
点击图片可放大查看
    P06.70S/KA5 Drawings
点击图片可放大查看
    P06.80S/KA5 Drawings
点击图片可放大查看
    P06.80S/KA14 Drawings
点击图片可放大查看
    P06.95S/KA10 Drawings
点击图片可放大查看
    P06.100S/KA5 Drawings
点击图片可放大查看
   P06.100S/KA7 Drawings
点击图片可放大查看
    P06.115S/KA10 Drawings
点击图片可放大查看
    P06.120S/KA14 Drawings
点击图片可放大查看
    P06.125S/KA5 Drawings
点击图片可放大查看
    P06.130S/KA5 Drawings
点击图片可放大查看
    P06.180S/KA5 Drawings
点击图片可放大查看
    P06.150S/KA5 Drawings
点击图片可放大查看
    P06.200S/KA5 Drawings
点击图片可放大查看
    P06.200S/KA10 Drawings
点击图片可放大查看
    P06.230S/KA10 Drawings
点击图片可放大查看
    P06.240S/KA5 Drawings
点击图片可放大查看
    P06.300S/KA10 Drawings
点击图片可放大查看
    P06.400S/KA5 Drawings
点击图片可放大查看
    P06.400S/KA7 Drawings
点击图片可放大查看
    P06.500S/KA10 Drawings
点击图片可放大查看
    P06.550S/KA14 Drawings
点击图片可放大查看
    P06.700S/KA7 Drawings
点击图片可放大查看
    P06.900S/KA10 Drawings
点击图片可放大查看
    P06.1000S/KA14 Drawings
点击图片可放大查看
    P06.1500S/KA10 Drawings
点击图片可放大查看
    P06.2000S/KA10 Drawings
点击图片可放大查看

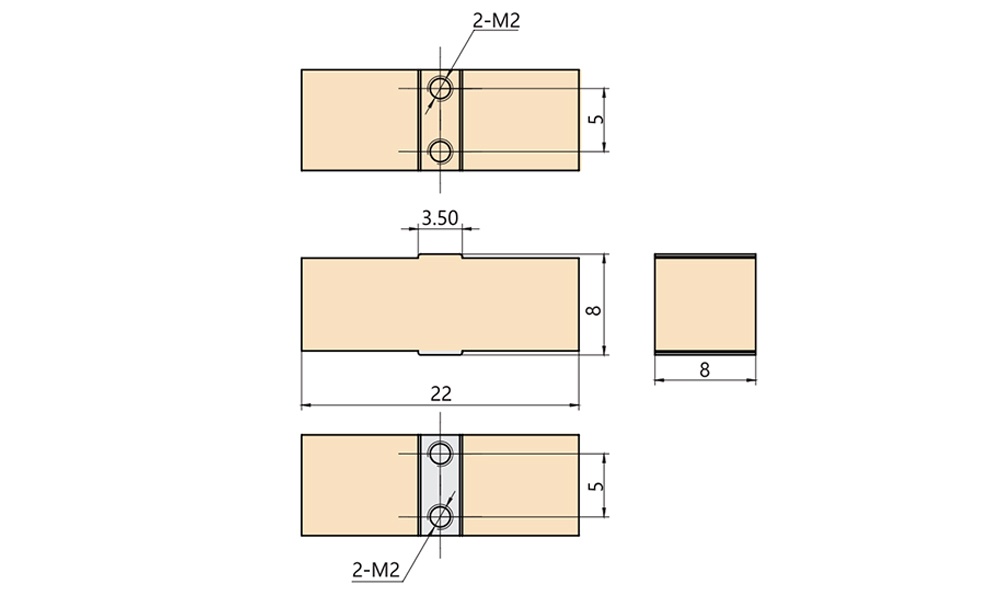

    P06.200S/KA3 Drawings
点击图片可放大查看
