The XD700 series piezo actuators are piezoelectric actuators with a mechanically packaged shell and an air-cooled heat dissipation interface. It is easy to install and fix with the external mechanical structure, and is suitable for dynamic application scenarios.
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Travel vs Voltage
|
Linearity
|
Customization:Custom size, connection, displacement, voltage and etc. are available according to your requirements.
|

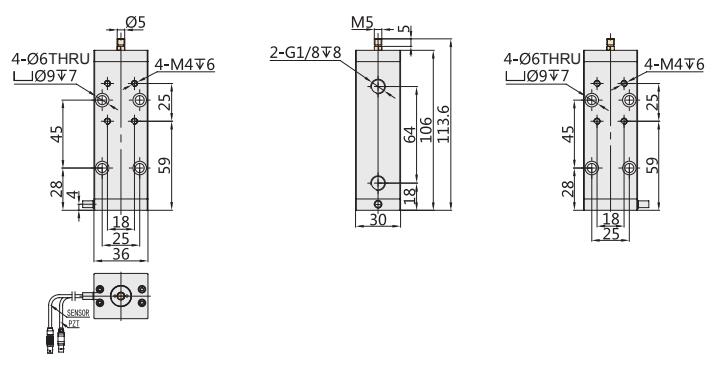

| Technical Data | |||
|
Type |
XD700.100S |
XD700.100K |
Units |
|
Active axes自由度 |
Z |
Z |
|
|
Travel range(0~120V) |
68 |
68 |
μm±10% |
|
Max.travel range(0~150V) |
85 |
85 |
μm±10% |
|
Integrated sensor |
SGS |
- |
|
|
Resolution |
2.5 |
1 |
nm |
|
Closed-loop linearity |
0.3 |
- |
%F.S. |
|
Repeatability |
0.2 |
- |
%F.S. |
|
Push/pull force capacity |
1200/200 |
1200/200 |
N |
|
Stiffness |
10 |
10 |
N/μm±20% |
|
Unloaded resonant frequency |
5000 |
5000 |
Hz±20% |
|
El. capacitance |
9 |
9 |
μF±10% |
|
Operating temperature[1] |
-20~80 |
-20~80 |
℃ |
|
Material |
Steel |
Steel |
|
|
Cable length[2] |
1.5 |
1.5 |
m±10mm |
|
Connector[2] |
LEMO |
LEMO |
|
Note: Max driving voltage could be -20V~150V, 0~120V is recommended for long-term and high-reliable operation.Unless otherwise specified, the above parameters are measured at room temperature about 25° C.
[1] Custom ultralow temperature and ultrahigh vacuum versions are available.
[2] Custom cable length and connector is available.
Note: The parallelism of the moving platform is about 20μm, and the roughness is about 1.6 to 3.2. Please contact the sales engineer for confirmation before purchase.
