CoreMorrow S38 Piezo Tip/Tilt Platform

Update time：2022-07-20 13:15:23Clicks：1455second
With the continuous progress of science and technology, especially the emergence of laser technology and its application in the optics field, the accuracy of laser operation and adjustment is constantly improved. From classical optical technology to adaptive optical engineering, piezo ceramic technology has been expanded in the application field of optical technology with its precise micro-nano control and ultra-high adjustment accuracy.

Piezo tip tilt platform is drived by piezo actuator, with internal non-return difference flexible hinge parallel guide structure design, and the external mechanical structure achieves uniaxial or multi-axial angular tilt motion through the expansion of internal piezo actuator, its small amount of compensation ensures that the deflection mirror with high accuracy and stability of movement. The built-in high precision sensors for closed-loop control, achieves sub-micro radian resolution and micro radian positioning accuracy.

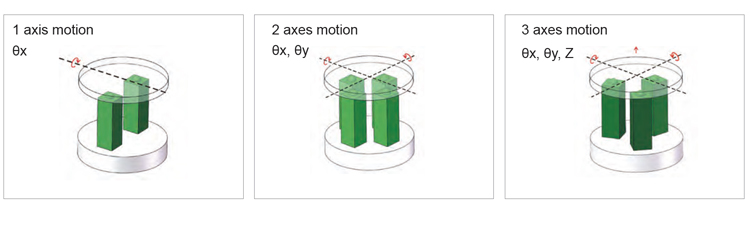

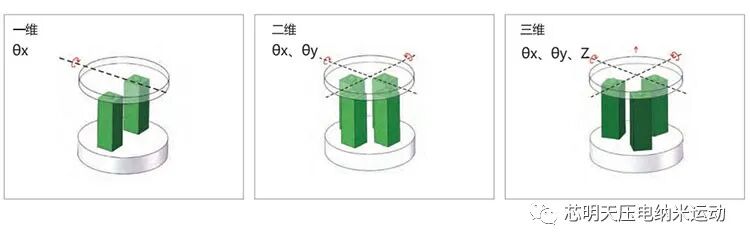

According to motion dimension, the tip tilt platform generally has three motion modes: θx tilt, θx θy tilt, θx θy tilt and Z motion.

图片压电偏转镜一般可分为三种运动方式



θx, θy Tilt



The S38-C1 piezo tip tilt platform is a θx, θy two-dimensional deflection piezo fast steering mirror with two optional tilt angles of 1.2mrad, 2.4mrad. The upgraded S38-C1 is more convenient and can be integrated into a cage structure with a right-angle adapter.

升级前 压电偏转镜图片

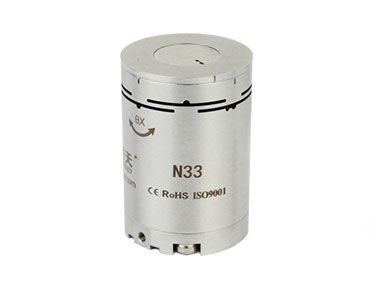

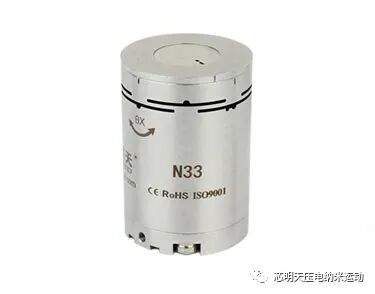

Before Upgrading

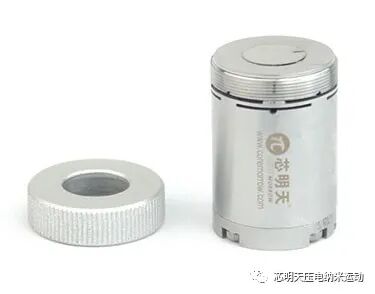

After Upgrading

图片S38-C1压电偏转镜

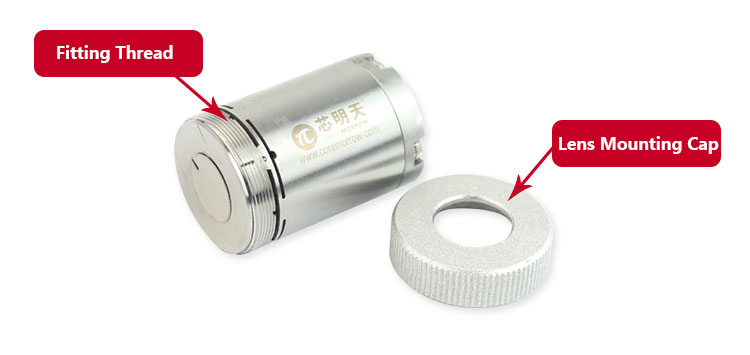

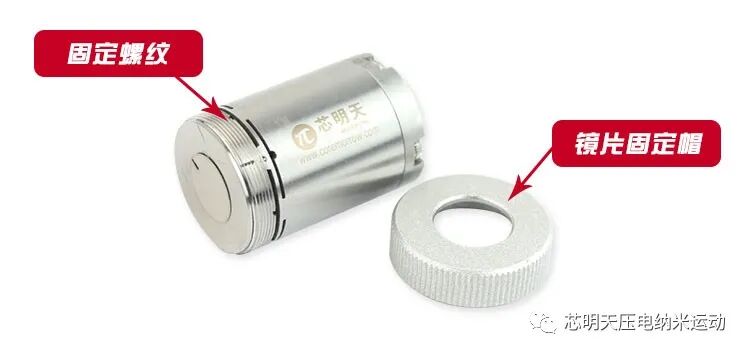

Lens Replaceable


S38-C1 piezo tip tilt platform was designed with a moving end screw, fitted with a lens mounting cap. The lens can be replaced according to user requirements. Compared with the traditional piezo tip tilt platform, which requires the lens to be glued to the moving end face and cannot be easily disassembled, the structure design of the replaceable lens of S38-C1 increases the convenience and makes the operation more simple.

S38-C1系列压电偏转镜采用了运动端螺纹结构设计





Small Size, High Dynamic, Applicable for Optical Communication, Imaging and Environmental Monitoring



S38-C1 piezo tip tilt platform has a mall size, its outer diameter is only 20mm, with 20mm or 29mm height. Its unloaded resonant frequency can be up to 7kHz and is suitable for dynamic beam tilt applications. Its small size and high dynamic make it applicable for optical communication, optical imaging and environmental monitoring, etc.

For example, temporary network communication in emergency situations can be built by UAV, while S38-C1 series can quickly maintain the stability of the network due to its high dynamic characteristics and high tilt accuracy. When UAV is used for imaging and taking photos, the fast optical deflection of S38-C1 fast mirror can also be used to make the imaging clearer and more stable. It provides a stable channel for data transmission during environmental monitoring in remote areas.

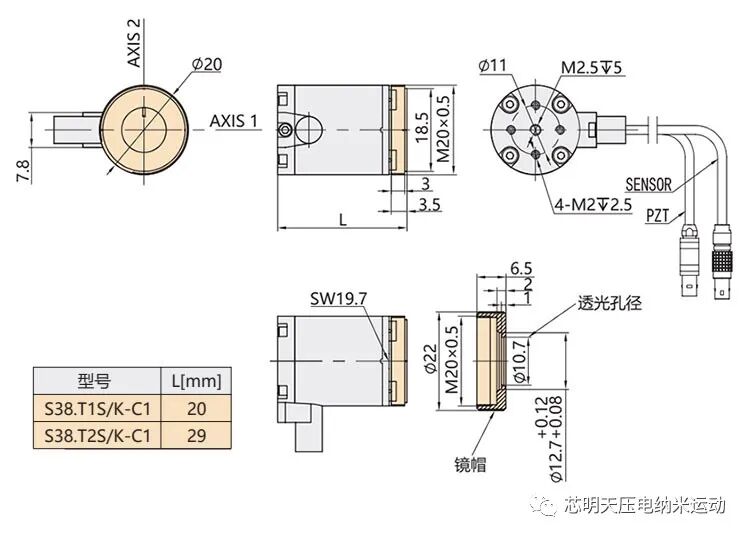

S38-C1压电偏转镜尺寸图

S38-C1 Drawing




Characteristics



• θx, θy tilt
•Tilt stroke up to 2.4mrad
•Optional closed loop sensor
•Optional right-angle adapter structure




Application



•Light path adjustment
•Laser communication
•Light path stabilization
•Laser fast scanning




Technical Data



Model: S38.T1S/K-C1
Active axes: θx, θy
Driving: 3 channels
Tilt angle: 1 or±0.5mrad (≈±103’’)@100V
Tilt angle: 1.2 or±0.6mrad (≈±123’’)@120V
Integrated sensor: SGS/-
Closed-loop/open loop resolution: 0.03/0.01μrad(＜0.01’’)
Closed-loop linearity: 0.3%F.S.
Closed-loop repeatability: 0.1%F.S.
Unloaded resonant frequency: 7000Hz
El. Capacitance: 1.6μF
Material: Steel, bronze
Mass: 50g (Not include cable)

Model: S38.T2S/K-C1
Active axes: θx, θy
Driving: 3 channels
Tilt angle: 2 or±1mrad (≈±206’’)@100V
Tilt angle: 2.4 or±1.2mrad (≈±247’’)@120V
Integrated sensor: SGS/-
Closed-loop/open loop resolution: 0.07/0.02μrad
Closed-loop linearity: 0.4%F.S.
Closed-loop repeatability: 0.2%F.S.
Unloaded resonant frequency: 2000Hz
El. Capacitance: 3.6μF
Material: Steel, bronze
Mass: 60g (Not include cable)
