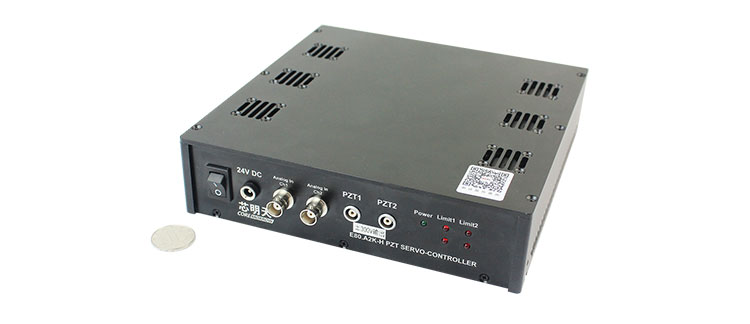

E80.A2K is an open-loop, 2-channel output piezo amplifier. The output voltage is up to -300V~+300V, and bandwidth is up to 1kHz. E80.A2K adopts bipolar voltage output mode, which can drive and control bipolar piezo bender or piezo tube scanner. The peak current of 500mA can make piezo actuator achieve faster step response time.
Features
• Open loop, 2-channel output
• Output voltage : -300V~+300V
• Bandwidth up to 1kHz
• Peak current up to 500mA
Applications

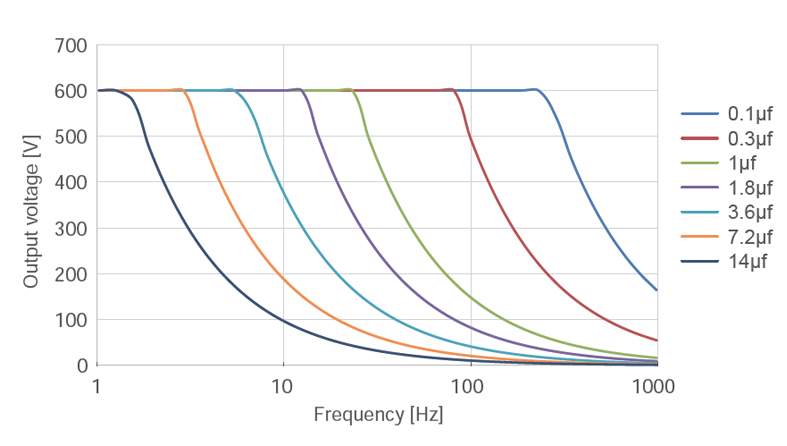

Frequency vs Load Curve

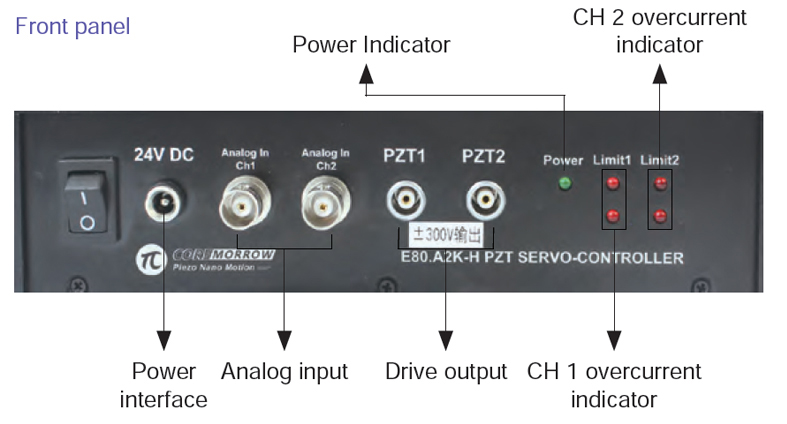

Panel Introduction
Parameters
Model: E80.A2K
Channel: 2
Analog input voltage: -5~+5V
Output voltage: -300~+300V
Peak current: 500mA/channel
Average current: 15mA/channel
Average power: 9W/channel
Bandwidth: 1000Hz/channel
Operating temperature: -25~65℃
Power supply: 28V/5A
Power supply interface: SF812-S2
Analog input connector: BNC-50KY
PZT output connector: ERA.0S.116.CTL
Size: 200×200×50mm
