CoreMorrow Small Size High Performance PZT Servo Controller

Update time：2022-03-18 09:03:42Clicks：1128second


With the wide application of piezoelectric technology in various industries, users have more higher requirements for piezo control systems. With the improvement of control system integration and the limitation of application space, the demand for miniaturization is gradually increasing. In response to the miniaturization needs of users, CoreMorrow has designed E53.B1S-I series small-sized piezo controller with small size and light weight.


E53.B1S-I is a servo controller specially designed for industrial applications, featuring small size, light weight, single-channel, servo control. It adopts analog input signal for control, which can realize closed-loop control of one-dimensional piezo actuator. It not only meets the high volume requirements in restricted applications, but also provides routine parametric performance.
Custom industrial terminal block connections are available.







Small Size PZT Servo Controller

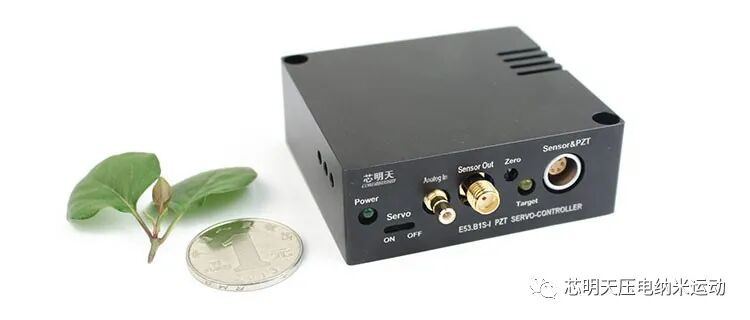

The volume of E53.B1S-I piezo controller is only 64mm×59mm×23.5mm, and a complete servo system is integrated in it, which includes servo analog control circuit, signal processing and power amplification circuit, etc., which can realize the servo control. For example: piezo stacks, piezo actuators, piezo stages, etc.






Low Power Consumption


The static power consumption of E53.B1S-I is less than 2.4W, which is suitable for application systems with limited power requirements. It realizes servo control and also achieves lower power consumption.






Shell Heat Dissipation


E53.B1S-I adopts the shell heat dissipation method, which can directly dissipate heat to the shell through the system fan, or install and fix it on the metal shell to dissipate heat through heat conduction.







Panel Introduction

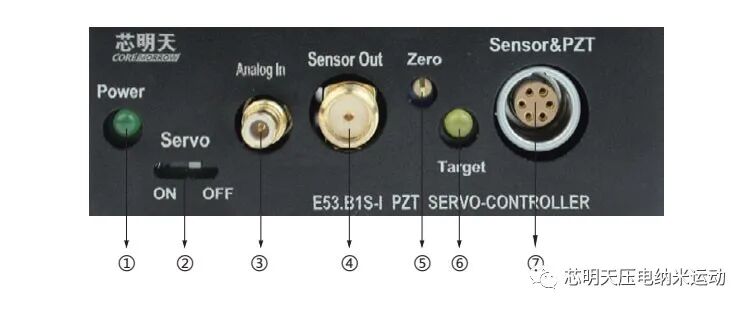

① Power indicator: lights when power on
② Servo switch: open loop/servo control switch
③ Analog input: analog voltage input interface
④ Sensor monitor: output sensor monitor voltage
⑤ Zero adjustment: adjust zero of sensor
⑥ Target indicator: lights when deviate the target travel
⑦ Sensor & driving connector: sensor input & voltage output

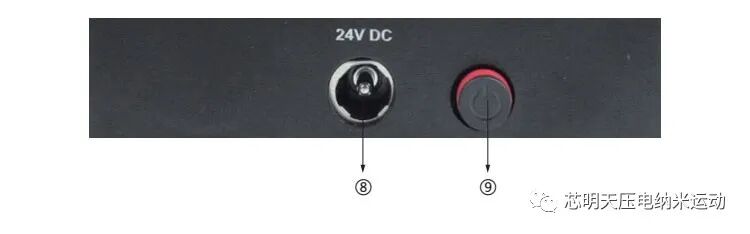

⑧ DC port: power supply port
⑨ Power switch: press down, power on; lift, power off







Parameters


Channel: 1
Input voltage: 0~10V
Output voltage: 0~120V
Peak current: 82mA
Ave. current: 27mA
Bandwidth: 1kHz
Ripple: 10mVpp@1.8μF
Control input connector: SMB
PZT&SENSOR sensor: LEMO-ECG-0B-306
Sensor: SGS
Sensor output connector: SMA
Operating temperature: 0~50℃
Output short circuited current: 27mA
Static dissipation: <2.4W
Size: 64×59×23.5mm
Mass: 97g
Power supply: 24VDC/500mA
