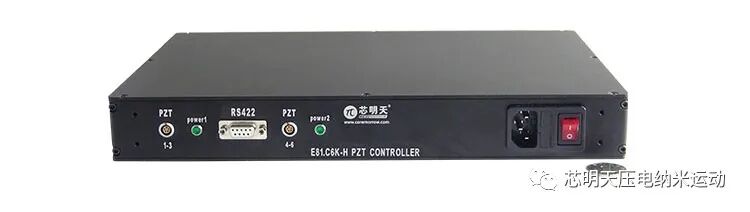

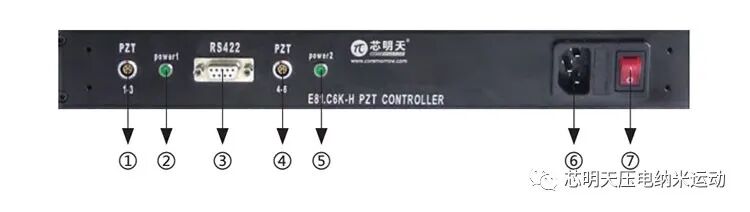

Panel introduction
Functions

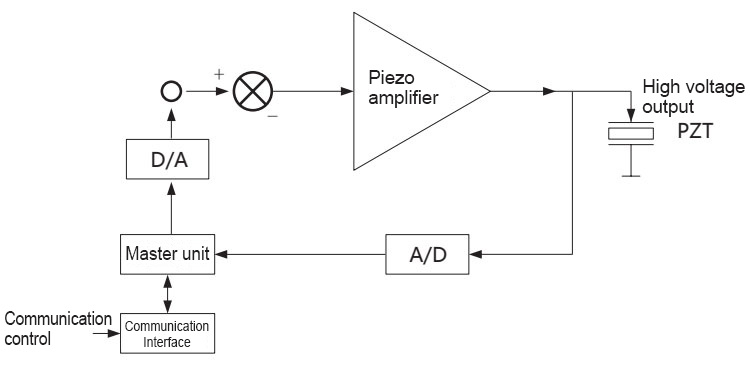

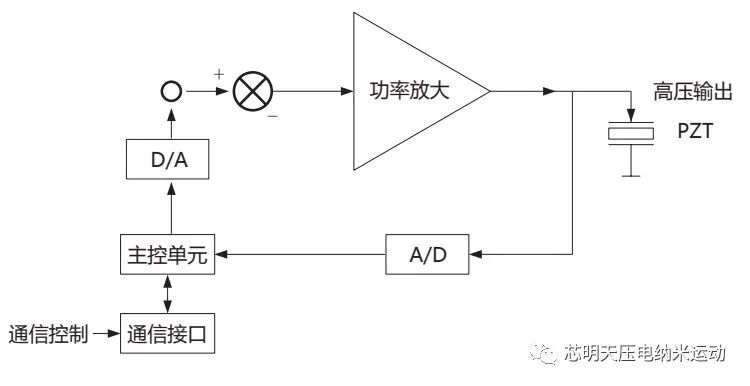

Principle

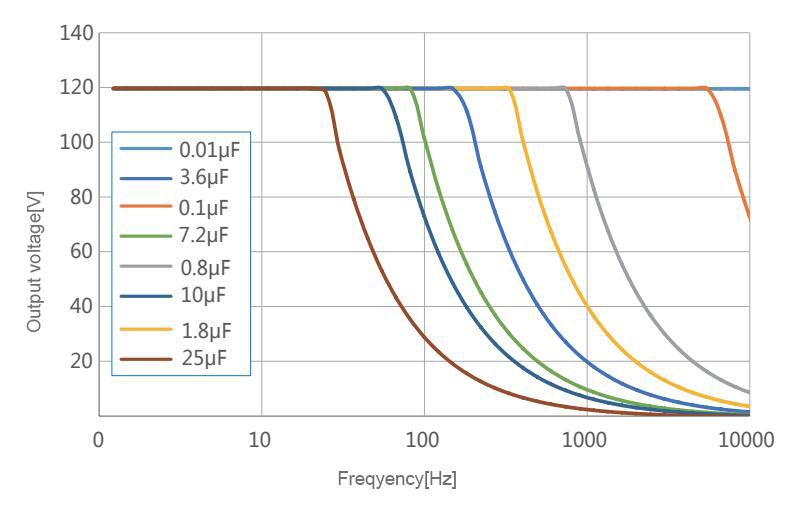

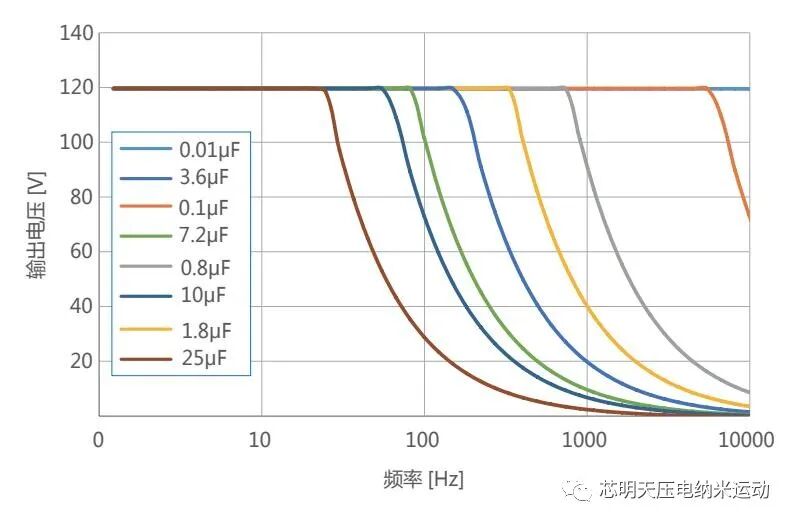

Frequency vs Load Curve
Parameters
Model: E81.C6K-H
Function: Piezo Controller
Channel: 6
Output voltage: -20~120V
Peak current: 1000mA/channel
Ave current: 70mA/channel
Bandwidth: 10kHz/channel
Ripple: 10mVpp/channel
PZT connector: EGG.0B.305.CLL
Communication interface: RS-422(D-SUB9)
Baud rate:
Operating temperature: -20~65℃
Storage temperature: -40~70℃
Environment humidity:
Size: 335×205×44mm
Mass: 2.35kg
Power supply: 220VAC
Power supply interface: IEC socket
