In various optical applications, with the continuous increase of aperture and improvement of resolution, or the change of application environment, all kinds of micro-vibration will have adverse effects on the optical system, such as greatly reducing the quality of imaging or optical communication. It is necessary to design a corresponding vibration isolation system for this micro-vibration.
In order to design a vibration isolation system that is more suitable for optical loads, it is necessary to fully understand and study the micro-vibration, and to carry out practical and sufficient experimental verification of the vibration isolation performance. Therefore, a high-reliability and high-precision micro-vibration simulator will be one of the necessary tools in the design of vibration isolation systems. Moreover, due to the large weight of the entire optical load system, the load capacity of the micro-vibration simulator must be excellent!
According to the characteristics of application environment of micro-vibration simulation or disturbance simulation, CoreMorrow has developed and produced a variety of piezo tilt stages for vibration simulation with advanced piezo nano-positioning and control technology. Moreover, each model has the characteristics of high precision and large load, which can fully meet the requirements of vibration simulation. XD500 series piezo tilt stage is one of them.

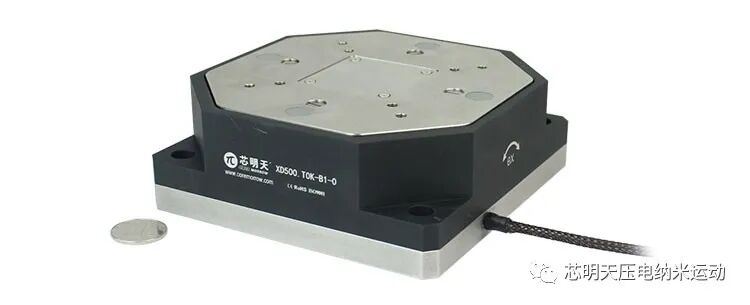

XD500 is a piezo stage with 2-axes deflection of θx and θy. Its bearing capacity is up to 10kg, the tilt angle is ±0.29mrad, and resolution can reach 0.1μrad. XD500 is specially designed for large load deflection applications, it is very suitable for large load deflection motion experiments, such as space disturbance simulation, vibration simulation and so on.
Features
Applications

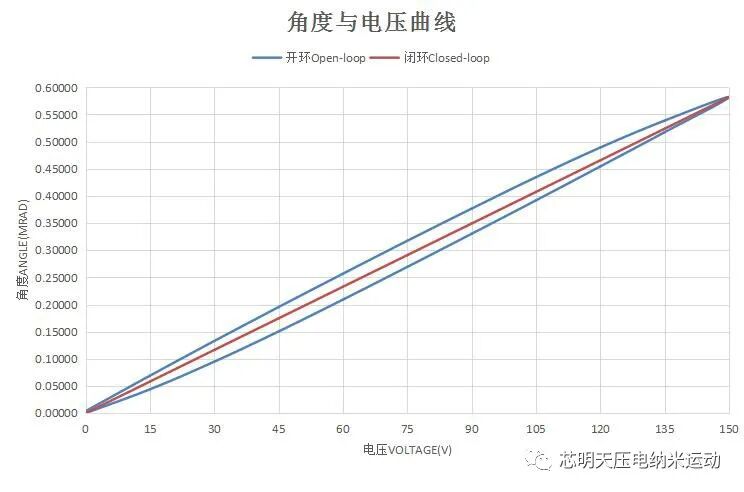

Tilt Angle vs. Driving Voltage Curve
Parameters
Model: XD500.T0S/K-B1
Axis: θx, θy
Drive control: 3-channel drive
Nominal tilt angle (0~120V): 0.46mrad/axis
Tilt angle (0~150V): 0.58mrad/axis
Sensor Type: SGS
Closed/Open Loop resolution: 0.2/0.1μrad
Closed-loop repeatability: 0.1%F.S.
Push/Pull: 200/20N
Unload resonance frequency: 1000Hz
Resonance frequency@10kg: 230Hz
Load capacity: 10kg
Capacitance: 21.5μF/axis
Material: Steel, Aluminum
Weight: 5kg
