This time, we will bring a 6-axis piezo nanopositioning sanner-H61.XYZTR0S!
H61.XYZTR0S is a 6-axis motion piezo with high precision and large bearing capacity. It is suitable for static 6-axis linear nanopositioning and angular nano-radian deflection. For transmitted light applications for nano-scale high-precision positioning adjustment.
Driving form of the H61.XYZTR0S is different from the 6-degree-of-freedom structure. Its shape is more conventional, and the movement area is limited to the central square moving table, which is very easy to install and fix the platform and the load.
Large aperture for light-transmitting application
The center of the H61.XYZTR0S has a 50mm × 50mm square through hole, which is very suitable for transmitted light applications, such as sample observation and microscopic imaging.
Large load capacity for heavy load application

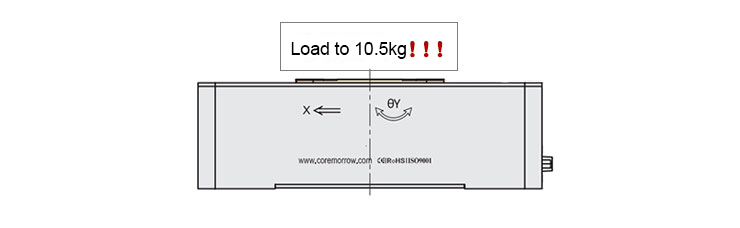

The carrying capacity of the H61.XYZTR0S can reach 10.5kg! Ideal for 6-axis nanopositioning of larger sample loads.
6-axis nanopositioning, higher precision
The displacement of H61.XYZTR0S in XY is 80μm (or ±40μm), Z is 35μm, the deflection stroke in θx θy is 0.7mrad/axis (or ±0.35mrad/axis), θz is 0.3mrad/axis (or ±0.15mrad/axis).
Under such a small range of motion, the 6-axis piezo stage can perform more precise nano-level linear motion and nano-radian level angular motion, providing ultra-high-precision motion control for the application environment.
Recommend piezo controller - E51.D7S
As shown in the figure below, E51.D7S piezo controller is a low-power, low-ripple controller specially designed and developed for driving 6-axis piezo stage. It has a compact structure and is easy to integrate. It forms a high-precision 6-axis nano-positioning system with H61.XYZTROSS. Under the control of the E51.D7S, the operation and control of the six dimensions of H61.XYZTR0S X, Y, Z, θx, θy, and θz will be more flexible, even under a super-large load of 10kg. The application scope of H61.XYZTR0S is extended to many fields.
H61.XYZTR0S 6-axis positioning system
Applications
• Six-axis ultra-precision position adjustment
• Prism position adjustment
• Optical applications
• Transmitted light applications
Measurement Curves

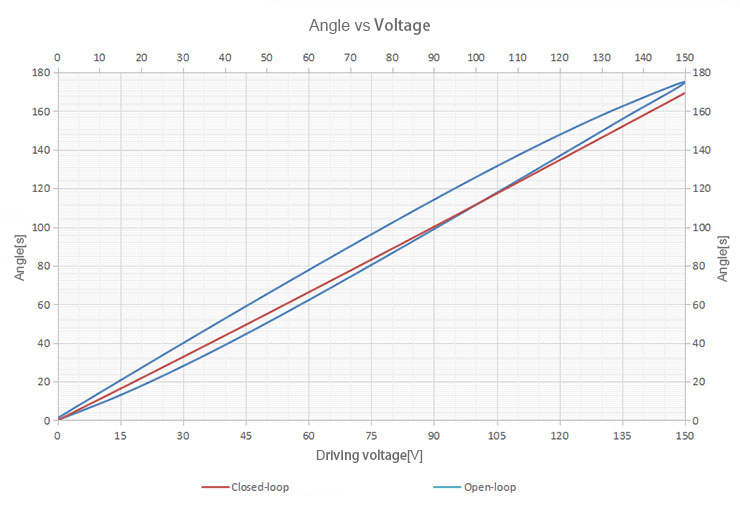

1)Angel vs Voltage

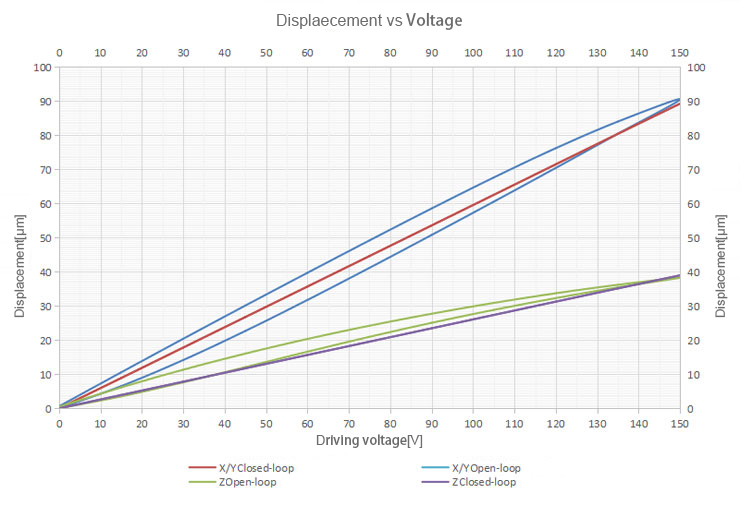

2)Linear displacement vs Voltage
3)Step time
Parameter
Model: H61.XYZTR0S
Axis: X, Y, Z, θx, θy, θz
Drive control: 7-way drive
XYZ nominal travel range (0~120V): XY: ±32μm/axis, Z: 28μm
XYZ travel range (0~150V): XY: ±40μm/axis, Z: 35μm
θxθy Nominal deflection stroke (0~120V): ±0.28mrad/axis
θz Nominal deflection stroke (0~120V): ±0.12mrad/axis
θxθy deflection stroke (0~150V): ±0.35mrad/axis
θz deflection stroke (0~150V): ±0.15mrad/axis
No-load resonance frequency: 350Hz
Load 10.5kg Resonant frequency: 50Hz
Sensor: SGS
Carrying capacity: 10.5kg
Aperture: 50mm×50mm
Dimensions: L200×W200×H64 mm^3
Usage: forward use, static
Capacitance: XYZ 29μF/axis, θxθyθz 15μF/axis
Weight: <4kg
Material: Steel, Aluminum
