E80.D156 piezo amplifier
E80.D156 piezo amplifier with breakout box
Aging test

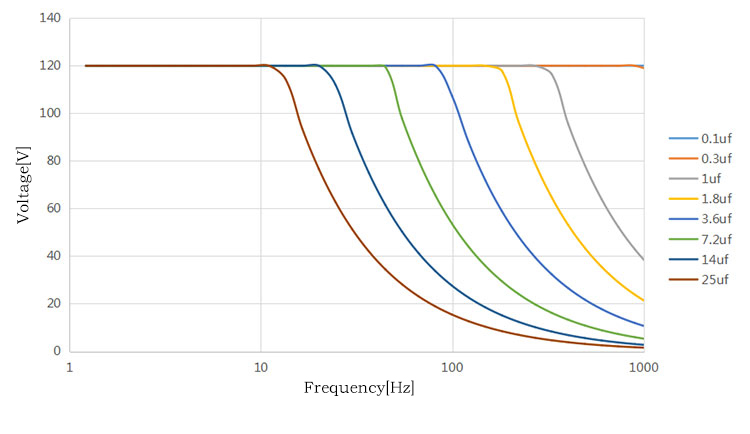

Frequency vs Load curve
Panel introduction
Features
• 156 channels output
• Output voltage 0~120V
• PC software control
• Ethernet port communication
• Closed loop control
Applications
• Phased Array Antenna
• anamorphic mirror
• Adaptive optics
• PZT fiber phase modulation
Parameters
Model: E80.D156
Output channels: 156
Output voltage: 0~120V (optional 0~150V)
Output voltage resolution: 5mV
Output voltage ripple: 10mV (RMS)
Single channel average current: 30mA
Single channel peak current: 90mA
Output bandwidth: 1kHz
Output protection function: overcurrent protection
Output interface: AVIC Optoelectronics J14A series (optional)
Sensor Type: SGS
Servo Characteristics: Analog P-I
Sensor connector: AVIC Optoelectronics J14A series (optional)
Communication interface: Fast Ethernet
AD acquisition function: software interface display
Supply voltage: 220V AC
Working environment temperature: 0~+40℃
Size: W482×H134×D545mm, standard 3U
