XD500.T0S/K-B1 Piezo Tilt StageCurrent Location:Product Homepage >> Piezo Z/Tip/Tilt Stages>>XD500.T0S/K-B1 Piezo Tilt Stage
Piezo Tip Tilt Platform from CoreMorrow
  • Introduction
  • Feedback

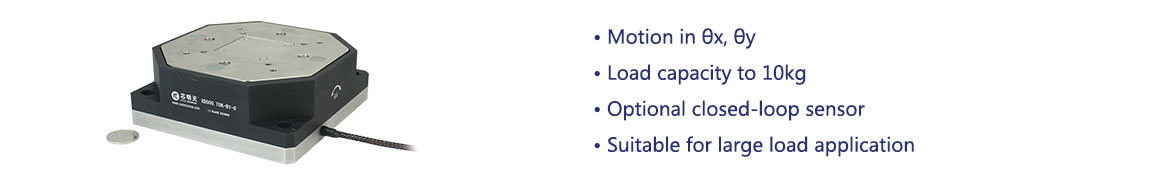

XD500.T0S/K-B1 piezo tilt/tip platform does the motion in θx and θy direction, its load capacity is to 10kg, which is designed for large load tilt application.


Characteristics


 Motion in θx, θy

  Load capacity to 10kg

 Optional closed-loop sensor

 Suitable for large load application


Angular Travel vs Voltage Curve


Application


  Laser beam deflection

  Heavy mirror holder deflection

 Laser beam combining

 Beam scanning

    Technical Data

Type

XD500.T0S-B1

XD500.T0K-B1

Units

Active axes

θx、θy

θx、θy

Drive control

3 driving channels 2 sensing channels

3 driving channels

Travel range(0~120V)

0.46/axis

0.46/axis

mrad±10%

Travel range(0~150V)

0.58/axis

0.58/axis

mrad±10%

Sensor

SGS

-

Closed/open loop resolution

0.2

0.1

μrad

Repeatability

0.1

-

%F.S.

Push/pull force

200/20

200/20

N

Unloaded resonant frequency

1000

1000

Hz±20%

Resonant frequency@10kg

230

230

Hz±20%

Load capacity

10

10

kg

El. capacitance

21.5/axis

21.5/axis

μF±20%

Material

Steel, aluminum

Steel, aluminum

Mass

5

5

kg±5%

    Drawings(Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

    3D diagram presentation
