P35A.T35 is a 2-axis piezo tip/tilt platform with large angle, high precision and high frequency, which can produce θx, θy deflection. It has ±18.5mrad tilt angle, 2kHz unloaded resonance frequency, and 0.025%F.S. closed-loop repeatability with optional closed-loop sensor. It’s square body was designed for maximizing the physical space and easy integration, very suitable for high-precision large stroke angle of fast deflection applications. The product is shown in the following figure.
Characteristics
θx, θy deflection
Tilt angle to ±18.5mrad
Unloaded resonance frequency to 2kHz
Custom service available
Optional closed loop sensor
Application

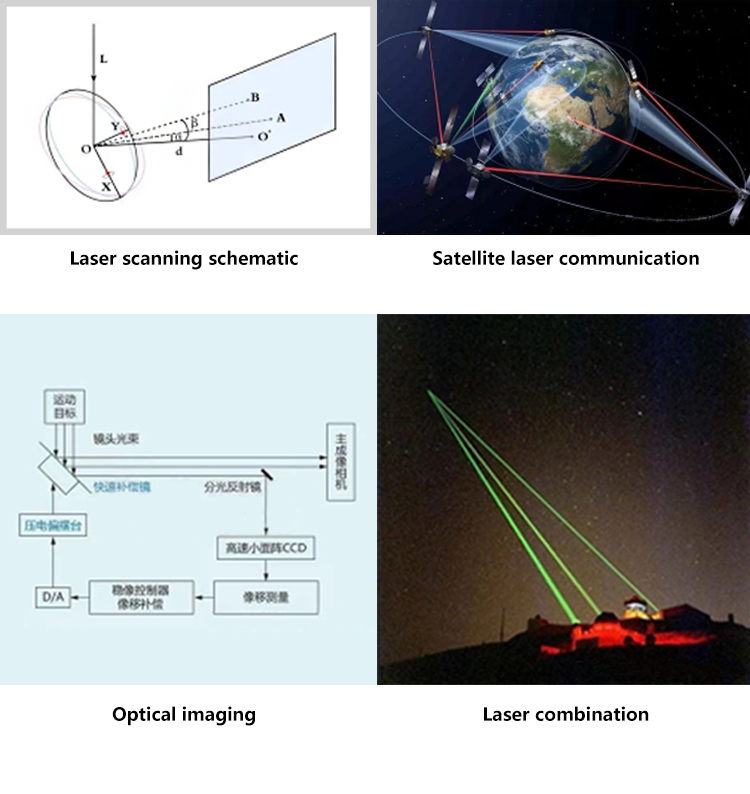

P35A.T35 piezo tip/tilt platform can be widely used in image processing/stabilization, interlace scanning/dithering, light filtering/switching, laser scanning, beam deflection and stabilization, scanning microscopy and other optical applications.
Technical Data
Model |
P35A.T35S/K |
Active axis |
θx、θy |
Drive/Control |
3 driving channels, 2 sensing channels |
Nominal tilt angle(0~120V) |
±14.8mrad/axis |
Tilt angle(0~150V) |
±18.5mrad/axis |
Sensor |
SGS/- |
Closed/open loop resolution |
1.2μrad/0.4μrad |
Linearity |
0.13%F.S./- |
Repeatability |
θx0.05%F.S.,
θy0.025%F.S./- |
Unloaded resonant frequency |
2000Hz |
Loaded resonant frequency |
1800Hz(Φ12.7×3mm mirror) 1100Hz(Φ24.5×3mm mirror) |
Closed loop step time |
7ms@Φ12.7×3mm mirror 8ms@Φ24.5×3mm mirror |
El. capacitance |
7.2μF/axis |
Material |
Invar, Al |
Mass |
155g |
Recommend Controller
E80.D3S-P multi-channel piezo controller is very suitable for driving P35A.T35 piezo tip/tilt platform. It uses analog and digital control, with 3 output channels, of which 1 channel output constant voltage, very suitable for differential drive. In addition, the controller is equipped with a sensing signal monitoring part, which can feedback the voltage signal reflecting the tilt angle of the piezo tip/tilt platform to achieve high precision control of the deflection mirror. The controller can meet the electromagnetic compatibility test (CS101, CS114, CS115, CS116, RE102, RS103), mechanical impact test (gravity acceleration 20g), 22.6kPa low pressure test (absolute value) and many other strict environmental tests.
For more details, please contact us by calling 0451-86268790, 17051647888(Wechat ID).
