New Product| N18.Z5K Small Volume Linear Motor, Z Motion!

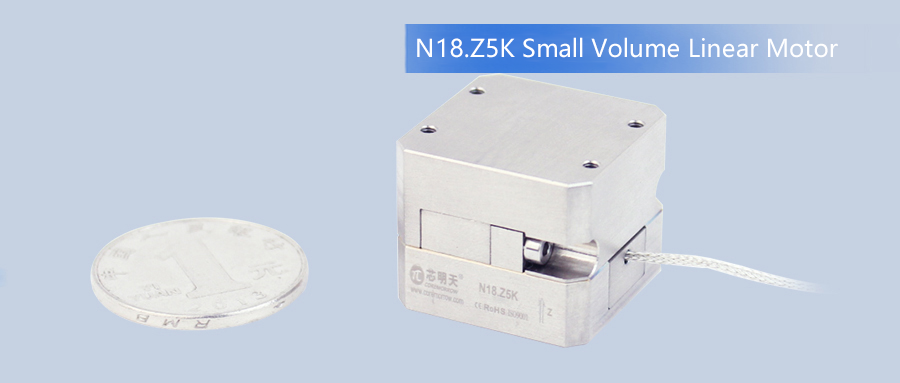

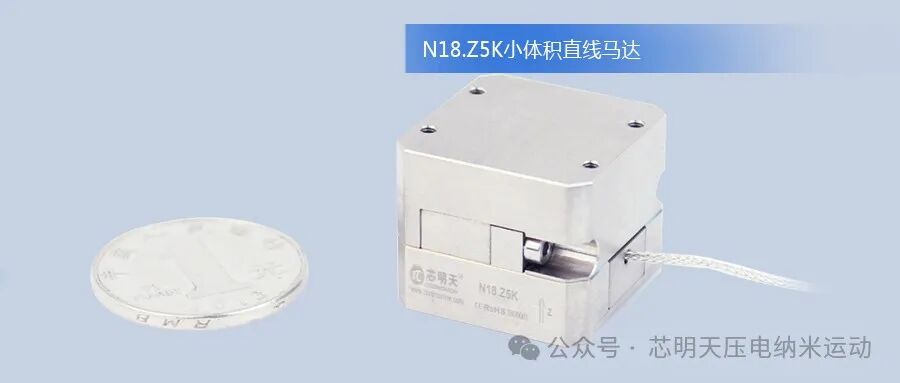

N18.Z5K piezo motor adopts the stick-slip principle, and the micro deformation of piezo ceramics is output by the special structure to achieve high-precision positioning. The N18.Z5K is a Z motion piezo motor platform with 5mm travel range, 6nm resolution, and 3mm/s speed, which can be used in vacuum, low temperature and non-magnetic application environments. Its motion surface to make Z-axis motion, and carry the sample without shield. It has a small size of only 24×24×20mm^3, which was designed for space-limited applications. The product is shown in the following figure.
Characteristics
Z-axis motion
Travel range up to 5mm
Resolution up to 6nm
Load capaticy to 0.15kg
Max speed 3mm/s
Vacuum, low temperature, no magnetic environment available
Application
Superresolution imaging sample movement
Optical fiber docking
Nano focusing and scanning
Atomic force microscope
Semiconductor precision positioning
Micro and nano equipment and manufacturing
Technical Data
|
Model |
|
|
Active axes |
|
|
Nominal travel range |
|
|
Max speed |
|
|
Resolution |
|
|
Push/pull force |
|
|
Holding force (Self-locking at rest) |
|
|
Max load (Horizontal mounting) |
|
|
Max speed (Horizontal mounting) |
|
|
Max load (Vertical mounting) |
|
|
Max speed (Vertical mounting) |
|
|
Operating temperature |
|
|
Cable length |
|
|
Material |
titanium |
|
Mass |
|
Recommended Controller

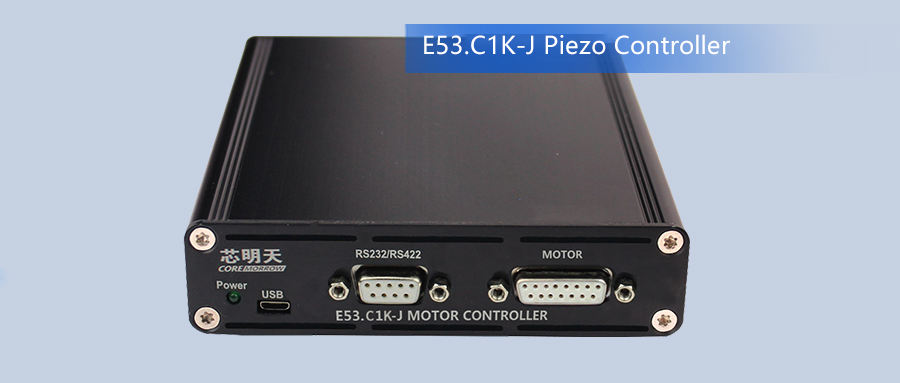

CoreMorrow E53.C1K-J piezo controller is very suitable for driving the N18.Z5K piezo motor. It is a single-channel open-loop piezo controller adopts digital control, 24VDC power supply, static power consumption is less than 5W, and the communication interface is TYPE-C, RS-422, RS-232, which is very easy to operate. It has a compact structure of 105×103×30.1mm^3, very easy to integrate.
For more details please contact CoreMorrow by calling 0451-86268790, 17051647888(Wechat ID)!
