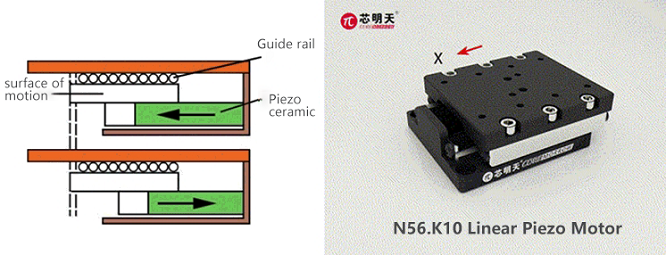

CoreMorrow linear piezo motor adopts the stick-slip principle to achieve millimeter travel stroke and nanometer positioning accuracy. It has the advantages of small size, large stroke, high precision and fast positioning. The closed-loop servo sensor is optional inside to achieve accurate positioning.
N55 piezo motor is a new product of small volume piezo motor with 21mm travel range, 5mm/s speed, 5nm resolution, 0.5kg load, and 21g weight. It has self-locking function at rest and a compact structure with overall size of 32×17×10mm^3, which is very easy to integrate. The product is shown in the following figure.
Characteristics
Large stroke, high resolution
Small size for easy integration
Optional XY, XYZ version
Self-locking at rest
Open and closed loop versions are available
Optional vacuum version
Application
Small load, large stroke nano positioning
Scientific research
Optical fiber docking
Micromachining
Atomic force microscope
Precision positioning and micro - and nano-manipulation of semiconductors
Technical Data
Model |
|
Active axes |
|
Integrated sensor |
Grating sensor/- |
Nominal travel range |
21mm or ±10.5mm |
Max speed |
|
Resolution |
|
Max blocking force |
|
Holding force(Self-locking at rest) |
|
Max load(Horizontal mounting) |
|
Max load(Vertical mounting) |
|
Operating temperature |
|
Cable length |
|
Material |
Al, Steel |
Mass |
|
Recommended Controller
CoreMorrow E53.D1E/C1K-J piezo controller is very suitable for driving the N55 series piezo motor. It is a single-channel piezo controller adopts digital control, 24VDC power supply, static power consumption is less than 5W, and the communication interface is TYPE-C, RS-422, RS-232, which is very easy to operate. It has a compact structure of 105×103×30.1mm^3, very easy to integrate.

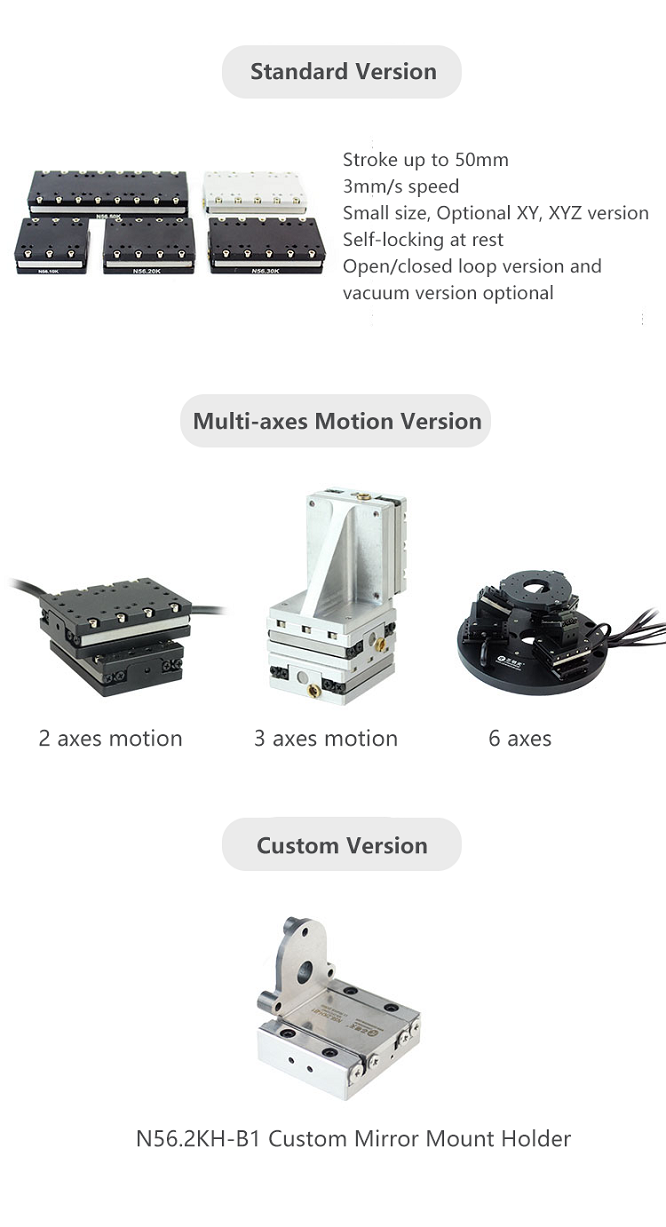

Small-Sized Congeneric Products - N56
