P60.X200 1-Axis High-Precision Nanopositioning Stage For Optical Measurement

Update time：2024-08-09 08:32:08Clicks：1153second

Optical measurement is a non-contact measurement technology that uses the properties of light such as light propagation, reflection, refraction, interference, diffraction, etc., to accurately measure length, shape, angle, color, etc., and has been widely used in industrial, medical, aerospace and other fields. With the continuous progress and innovation of technology, optical measurement technology is developing in the direction of higher precision and more efficient. With its high precision and fast response speed, CoreMorrow nanoscale positioning stage provides nanoscale precision positioning in optical measurement technology, which can make the measurement results more accurate.

Note: The image is from the Internet

P60.X200 1-Axis High-Precision Nanopositioning Stage

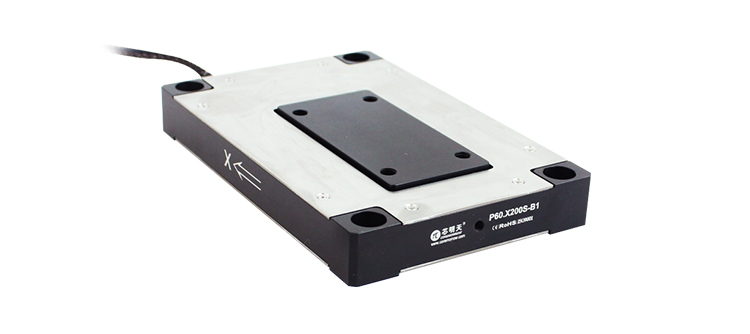

P60.X200 piezo nanopositioning stage adopts amplification mechanism and flexible hinge to support the transmission. Driven by high reliable piezo ceramic, it can realize 200μm X-axis linear motion, 2nm resolution, 1.3kg load and 30ms unloaded step time @ open loop condition, optional closed-loop sensor canbe configured for high-precision scanning and positioning. P60.X200 is a 1 axis X-motion stage, it can realize 2 or 3 axes motion by combining more stage. The stage is shown as the figure below.

Characteristics

X motion, travel range up to 200μm

Load capacity up to 1.3kg

2nm resolution

Open/closed loop version and UHV version available

Optional 2 or 3 axes motion

Applications

Optical measurement

Optical detection

Microscanning

Laser interferometry

Biotechnology

Technical Data

Model	P60.X200S/K
Active axes	X
Drive control	1 driving channel, 1 sensing channel/1 driving channels
Travel range（0~120V）	160μm
Travel range（0~150V）	200μm
Sensor	SGS/-
Closed/open loop resolution	7nm/2nm
Closed-loop linearity	0.02%F.S./-
Closed-loop repeatability	0.01%F.S./-
Pitch/yaw/roll	＜15μrad
Closed/open-loop unloaded step time	50ms@20μm、1300g / 30ms
Unloaded resonant frequency	370Hz
Unloaded resonant frequency	120Hz
El. capacitance	10.8μF
Working temperature	-20~80℃
Load capacity	1300g
Material	Steel, Aluminum
Mass	630g

Recomended Controller

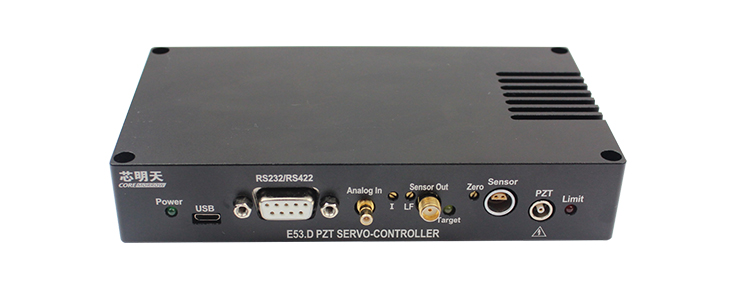

E53 piezo controller is ideal for driving P60.X200 piezo nanopositioning stage. It is a single-channel controller designed for small volume applications with a compact and easy integration size of 148×27.5×80mm^3, and 350g weight, 24VDC/1A power supply. It has a cooling area, which can quickly export the generated heat. The upper computer software supports secondary development .
