S34 piezo tip/tilt stage is designed with a frictionless flexible hinge parallel guiding structure, and the external mechanical structure realizes single-axis or multi-angle deflection movement through the expansion of the piezo ceramics inside. The deflection angle is small, and the motion accuracy and stability are very high.The built-in high-precision sensor is used for closed-loop control to achieve sub-micro radian resolution and micro radian positioning.

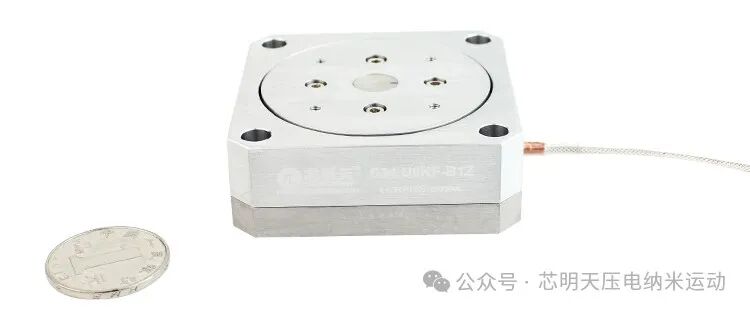

The previous S34 products mainly cylindrical large load and high dynamic application design, but this time we made an innovation and launched a square model S34.U0KF-B1. This type of piezo tip/tilt stage can carry out θx deflection range up to 0.108mrad. Its unloaded resonant frequency can be up to 9kHz, resonant frequency to 2.7kHz @200g load, and its load capacity is 1kg. It can be used in vacuum environment and equipped with aviation connectors. It is a large load, high frequency, high precision piezo tip/tilt stage as the following figure shown.
Characteristics
Square, small, easy to integrate
θx deflection
Resolution up to 0.02μrad
Unloaded resonant frequency up to 9kHz
Oad capacity up to 1kg
Equipped with aviation connectors
Vacuum version, closed-loop version is available
Application
Optical measurement
Light path regulation
Laser communication
Laser rapid scanning
Image processing and stabilization
Technical Data
Model |
S34.U0KF-B1 |
Active axis |
θx |
Drive Control |
2 driving channels |
Tilt angle(0~120V) |
0.09mrad(≈ 19 sec.) |
Tilt angle(0~150V) |
0.108mrad(≈22 sec.) |
Resolution |
0.02μrad(<0.01sec.) |
Unloaded resonant frequency |
9kHz |
Resonant frequency |
6.4kHz@20g
2.7kHz@200g |
El. capacitance |
0.7μF |
Material |
Steel, Aluminum |
Mass |
290g |

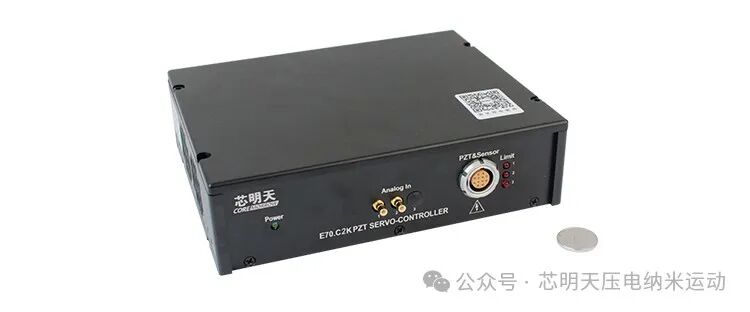

Recomended Controller
