New Product|P66.X2K-B1Z 1-Axis High Precision Vacuum Piezo Nanopositioning Stage

Update time：2024-07-19 15:59:10Clicks：1394second

P66 is a piezo nanopositioning stage with 1~3 axes motion using a direct-drive mechanism or amplified-drive mechanism, which could reach millisecond response time, sub-nano accuracy, and optional high-precision sensors for closed-loop control. It is ideal for positioning applications such as optical path length correction in interference, sample positioning in microscopy or scanning applications, etc.

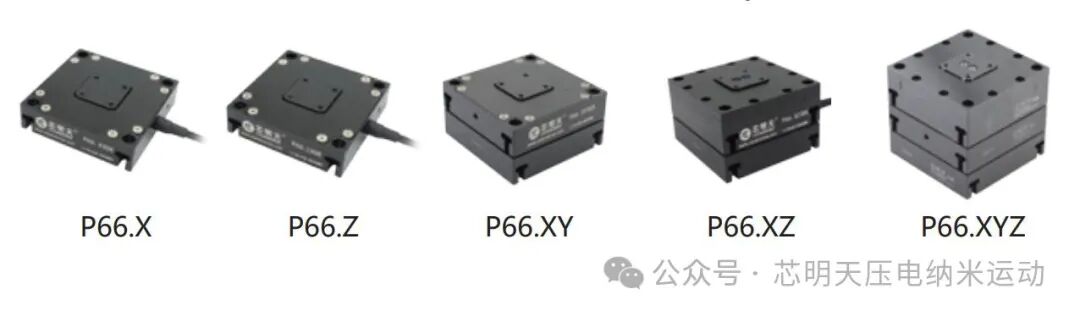

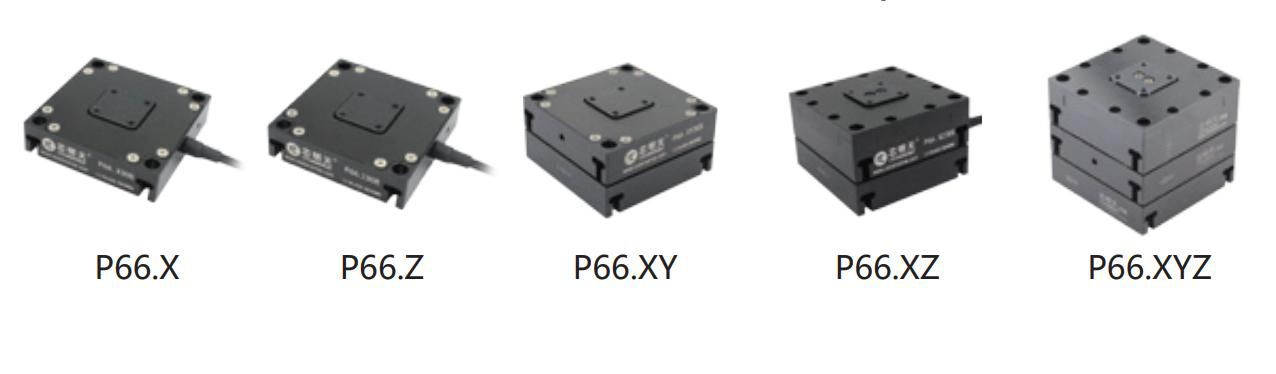

P66 1~3 axes piezo nanopositioning stage

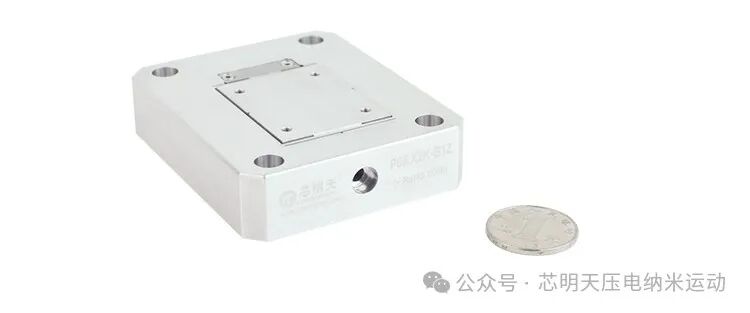

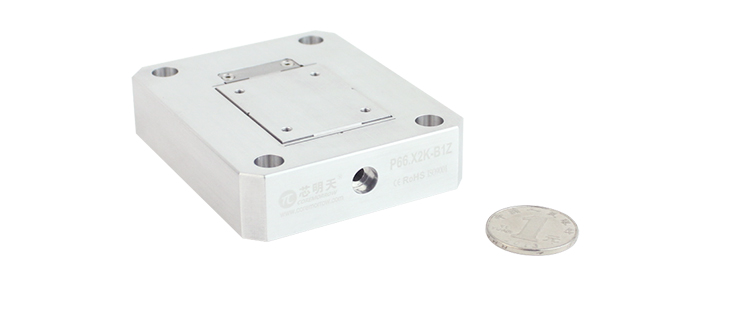

P66.X2K-B1 is a new 1-axis vacuum piezoelectric nanopositioning stage of the P66 series. The product adopts direct drive structure, the maximum travel range in X is 2.4μm, the open-loop resolution can be up to 0.5nm, load capacity to 2kg, resonance frequency to 12kHz. It has a small body with the size of 70mm×85mm×20.5mm. The customized aviation connector can be used in a vacuum environment, and CoreMorrow provides custom product working in 2E-11mbar vacuum environment. The following figure shows P66.X2K-B1.

Characteristics

Motion in X

Resolution to 0.5nm

Load to 2kg

Resonant frequency to 12kHz

Millisecond response time

Custom aviation connectors

UHV version, closed loop available

Application

Interference

Microscopy/Scanning

Optical measurement

Micromachining/precision control

Metering

Technical Data

Model	P66.X2K-B1Z
Active axis	X
Drive Control	1channel driving
Traval range(0~120V)	1.9μm
Travel range(0~150V)	2.4μm
Open loop resolution	0.5nm
Unloaded resonant frequency	12kHz
Loaded resonant frequency	10kHz@20g
Step time	2ms
El. capacitance	0.58μF
Working temperature	-20~80℃
Load capacity	2kg
Material	Stainless steel, Aluminum
Mass	310g

Recommended Controller

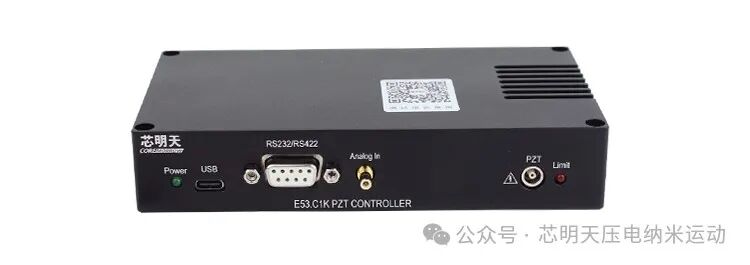

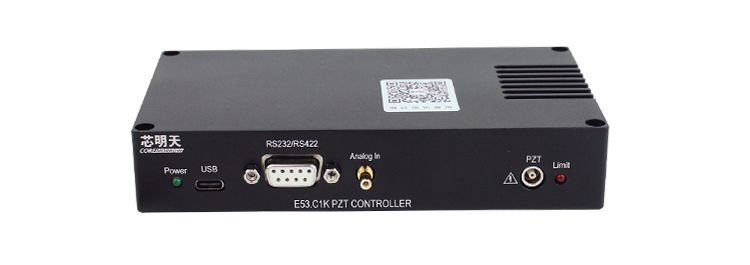

E53.C1K is ideal for driving the P66.X2K-B1Z piezoelectric nanopositioning stage. It is a small single-channel piezo controller, 24VDC/1.5A power supply, analog or digital control, USB/RS-422/RS-232 communication interface, 10kHz bandwidth. 148mm×27.5mm×80mmsize makes it compact and easy for integration.
