P35A.U1S/K θx Large Load Piezo Tip/Tilt Platform, 45°Inclined Mounting!

Update time：2024-03-14 10:25:42Clicks：1328second
CoreMorrow P35A.U1S/K is a θx-direction piezo tip/tilt platform with large load and high frequency. Its deflection angle can be up to 1.5mrad, resolution can up to 0.1μrad. Its special structural design makes it outstanding in carrying capacity which is up to 1kg, and higher frequency up to 550Hz with a 350g load.

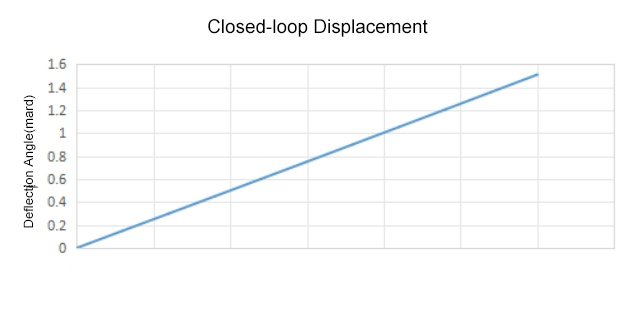

Control Voltage VS Deflection Angle Curve



The P35A.U1S/K piezo tip/tilt platform can be equipped with a closed-loop sensor. Under closed-loop condition, the curve between the drive control voltage and the actual deflection angle is shown in the following figure.

Specially Designed Load Mounting Structure



The P35A.U1S/K piezo tip/tilt platform is mounted in the side, and it is designed for installation at a 45°angle and can carry 1kg load.


High Resonant Frequency



The experimental results show that the no-load resonance frequency of P35A.U1S/K piezo tip/tilt platform is greater than 5000Hz, and the resonant frequency of 350g piezo tip/tilt platform can be up to 550Hz.


Closed-loop Fast Step



P35A.U1S piezo tip/tilt platform 200μrad angle step time can be up to 2.5ms. It can be adjusted according to the user's needs before delivery.


Typical Applications



P35.U1S piezo tip/tilt platform can be widely used in optical applications such as image processing/stabilization, interlace scanning/dithering, light filtering/switching, laser scanning, beam deflection and stabilization, scanning microscopy, etc.

Technical Data



Model
P35A.U1S/K
Active axis
θx
Driving
2 channels driving，1 channel sensing
Tilt angle（0~120V）
±0.6mrad（≈124”）
Tilt angle（0~150V）
±0.75mrad（≈155”）
Integrated sensor
SGS/-
Open/closed loop resolution
0.2μrad（≈0.04”）/0.1μrad（≈0.02”）
Linearity
0.15%F.S./-
Repeatability
0.1%F.S./-
Loading capacity
1kg
Unloaded resonant frequency
5400Hz
Resonant frequency with load
550Hz@350g
Closed-loop operating frequency（-3dB）
200Hz@200μrad/-
Step time
2.5ms@200μrad、300g/1.5
El. capacitance
28.8μF
Material
Invar Steel, Alluminum
Mass
1.05kg

Recommended Controller



E70 Piezo Controller

E70 piezo controllers are ideal for driving P35A.U1S/K piezo tip/tilt platforms. It is a three-channel piezo ceramic controller with small size, high power, low power consumption, high bandwidth and low ripple noise characteristics.  It is simple and convenient with 24VDC power supply, digital communication through serial port, USB or network port, and optional open/closed loop.

E80.D3-O Piezo Controller

The E80.D3-O piezo controller is mainly designed to drive the piezo tip/tilt platform and has 3 output channels, of which the third one is a constant voltage output, suitable for differential drive. With 20~30V DC power supply, analog closed-loop, digital control, it has two forms, optional package or board card.
