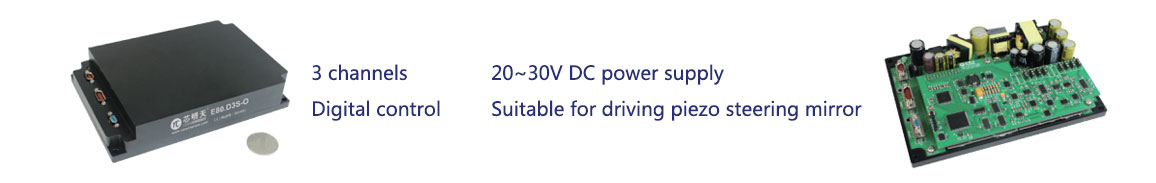

E80.D3S-O Multi-channel Piezo Controller is for driving piezo tip/tilt platform, features 3 outputs, and the third channel is constant voltage output that is suitable for differential drive. It has two types, packaged type and board type for choice.
Characteristics
|
|
|
|
|
|

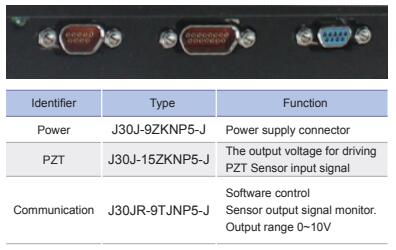

Panel Introduction
|
| Technical Data | |
|
Type |
E80.D3S-O |
|
Function |
Digital controller |
|
Channels |
3 |
|
Ananog input(V) |
- |
|
Output voltage(V) |
-20~120(optional -20~100/150), the 3rd |
|
Input power(W) |
56 |
|
Peak current(A) |
1/channel |
|
Ave.current(mA) |
70/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
5/channel(2.2μF) |
|
PZT connector |
J30J-15ZKNP5-J |
|
Communication connector |
J30JR-9TJNP5-J |
|
Sensor type |
SGS |
|
Servo |
P.I+low pass |
|
Sensor output connector |
J30JR-9TJNP5-J |
|
Communication port |
RS-422（J30JR-9TJNP5-J） |
|
Baud rate |
9600、38400、57600、115200 |
|
Settable baud rate for |
9600、19200、38400、57600、 |
|
Processor |
ARM 32bit |
|
D/A converter |
16bit ±10V |
|
A/D converter |
16bit ±10V |
|
PC software control function |
Output voltage and displacement, |
|
PC software waveform |
Programmable/standard |
|
Secondary development |
VC++, Matlab, LabView, DLL |
|
Operating temperature(°C |
-40~65 |
|
Overcurrent protection |
Yes |
|
Static power(W) |
11 |
|
Cooling |
At the bottom of the shell |
|
Size(mm) |
160×110×30 |
|
Mass(g) |
495 |
|
Power supply |
20~30V DC3A |
|
Control mode |
Digital signal control |
