New Product| 360°Two-Way Rotation Stage N61.K20H-B

Update time：2024-03-04 10:38:10Clicks：1220second
Piezo stage has become a popular motion control component in scientific research and industry with the advantages of small size, large stroke and high precision. It is widely used in semiconductor technology, optical instruments and equipment, medical biotechnology, precision machining equipment, aerospace and other fields.

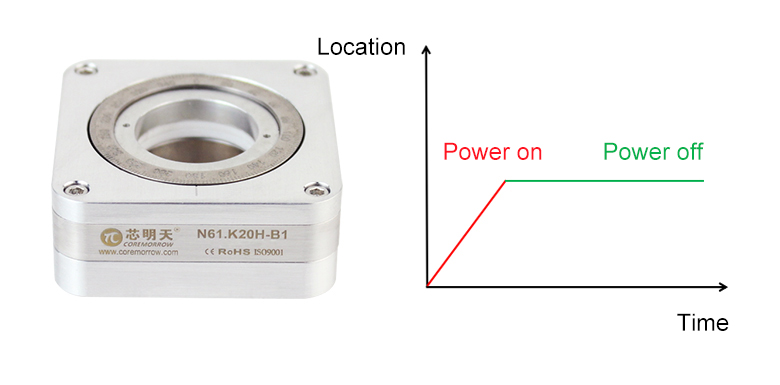

According to users’ feedback, CoreMorrow continuously improve and create new piezo stage members to satisfy market demand and provide customers with more high-quality precision positioning technology solutions. Today we recommend a small volume 360°two-way rotation stage N61.K20-B. It is an open-loop piezo motor directly driven by piezoelectric ceramics, using a special mechanical structure design, the linear micro-displacement generated by piezoelectric ceramics can be converted into a macroscopic angle rotating motion of the mechanical platform, which can be 360°bidirectional rotating motion, the speed limit is 20°/s, the load can be up to 0.5kg, and resolution can be up to 10μrad. The product is shown in the following figure.


Characteristics


1

Small Volumn




2

360°Two-Way Rotation




3

Speed up to 20°/s




4

Self-locking at Rest




5

Customizable with Optional Vacuum Version


Application


Optical instrument, precision instrument, medical equipment, and microdose syringe

Technical Data


Model
N61.K20-B
Active axes
360°，Two-way
Speed limit
20°/s
Maximum axial load
0.5kg
Open-loop Resolution
10μrad

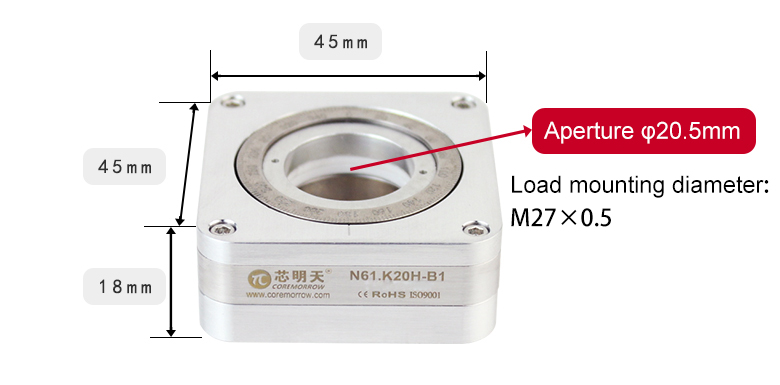

Eccentricity
0.02mm
Cable length
1.5m
Operating temperature
10~40℃
Storage temperature
-10~40℃
Material
Steel, Steel
Mass（Including cable and connector）
165g

Recommended Controller


E53.D1E/C1K-J Piezo Motor Servo Controller is designed for driving CoreMorrow 360° piezo rotation motor. With a single channel output, N61.K20H-B optional E53.C1K-J (open loop control) piezo controller adopts digital control. It has a small size, only 105×103×30.1mm^3, it is small in size and compact in structure, very suitable for integration.
