Z motion Large Load Piezoelectric Nanopositioning Scanner-P70.Z200

Update time：2023-12-15 11:32:32Clicks：1567second

P70.Z200 piezoelectric scanner is a Z-motion scanner with small volume, large stroke and large load. It adopts the mechanism amplification principle with frictionless flexible hinge guide mechanism driven by high reliability piezoelectric ceramic built-in. It has a central through hole which can drive the objective lens or sample to achieve nano-precision Z-direction lifting movement with travel range up to 200μm and bearing load up to 500g. The built-in sensor is connected through the full bridge mode, without drift, and can achieve accurate positioning in the nanometer range, closed-loop resolution of 6nm, repeated positioning accuracy of 0.02%F.S. The products are widely used in microscopic imaging, optical detection, biotechnology, image processing and other fields.

Small Volume Center Through Hole Design

P70.Z200 piezo scanner has a very small size and a φ10mm central through-hole, the size is shown as below figure.

Easy Load Installation

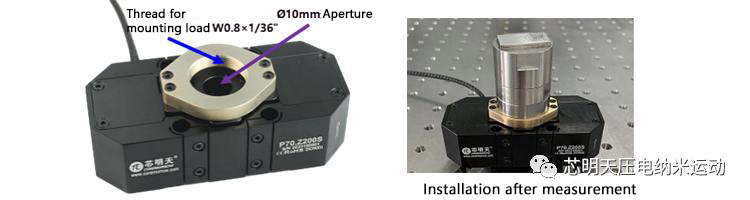

P70.Z200 piezo scanner is equipped with a load thread hole in the central part to facilitate the installation of loads such as objectives or samples, with a maximum load capacity of 500g. Standard load adapts thread W0.8×1/36 ", thread size can be customized according to different needs of users.

Closed -loop Fast Step

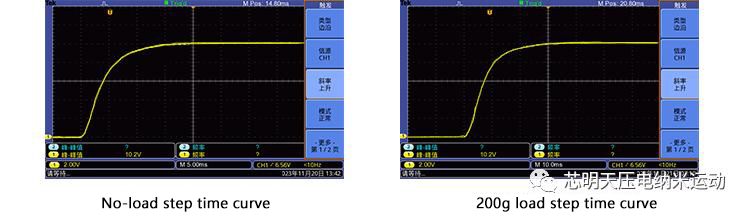

The closed-loop no-load step time of the P70.Z200 piezo scanner is 20ms, and the step time can be up to 30ms with 200g load, and the response speed is fast.

Typical application

Applied to cage structures

CoreMorrow P70.Z200 piezo scanner is equipped with a cage structure mounting through hole, which can be directly integrated into the cage structure. It can be used with a loaded objective lens to adjust the nano-level Z-axis linear motion, and precisely adjust the distance between the focus and the sample after the objective lens is focused.

Microimaging

For high-resolution microscopic imaging technology, piezo scanner is an indispensable part of it, it can carry the objective lens or sample to do Z-direction focusing or sample position adjustment, greatly improve the clarity of imaging, its accuracy can be up to nanometer-level. And the piezo scanner is controlled by electrical signals, so the focusing speed is fast, and the response speed can be up to sub-millisecond or millisecond.

Biotechnology

With the rapid development of biomedical technology, precision positioning technology is also widely used in this field. For example, chromosome cutting, cell separation, cell fusion, nano dispensing, microfluidic, etc., the positioning part can be applied to piezo scanner, which can use its ultra-high resolution, positioning accuracy and anti-interference ability to accurately position.

Technical Data

Model	P70.Z200
Active axes	Z
Driving channels	1 channel Driving，1 channel sensing
Travel range（0~120V）	136μm
Travel range（-20~150V）	200μm
Sensor	SGS
Closed/open-loop resolution	6nm/2nm
Closed-loop linearity	0.05%F.S.
Closed-loop Repeatability	0.02%F.S.
Unloaded resonant frequency	500Hz
Resonant frequency@200g	250Hz
Closed/open-loop unloaded step time	20ms
Load capacity	500g
El. capacitance	7.2μF
Material	Steel, Aluminum
Mass	240g（including 6-core cable）

Recommended Controller

E53.D1S piezo controller is very suitable for driving P70.Z200 piezo scanner. It is a small-size, high-power, low-power consumption, high bandwidth, low ripple noise single-channel piezo ceramic controller. The controller adopts a special operational amplifier circuit to ensure the output capacity of high voltage and large current, and improves the precision and stability of PI regulation and control by optimizing the sensing servo module. The reliable anti-interference design ensures the high frequency response speed of the controller.

For more details Please contact CoreMorrow by calling 0451-86268790/17051647888（Wechat ID）！
