P70.Z200 Piezoelectric Nanopositioning ScannerCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P70.Z200 Piezoelectric Nanopositioning Scanner
  • Introduction
  • Feedback

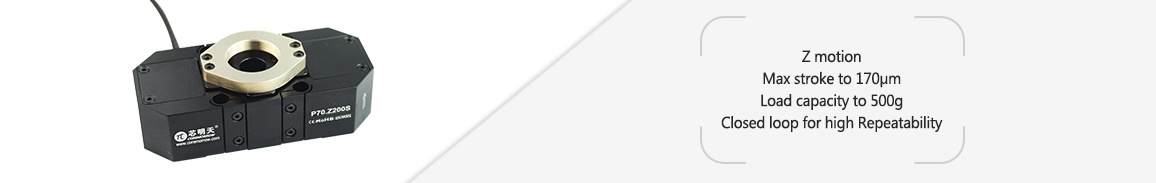

The P70.Z200 can achieve one-dimensional Z-direction movement, and the max stroke can reach 170μm under a driving voltage of 150V. Its built-in sensors are connected through a full bridge method, without drift, and can achieve precise positioning within the nanometer range.Its load capacity is up to 500g,which is ideal for large load applications.


Characteristics


 Z motion

 Max stroke to 170μm

 Load capacity to 500g

 Closed loop for high Repeatability


Application


 Biotechnology

 Optical Inspection

 Microscopy Imaging

 Image processing

    Technical Data

Type

S-Closed loop

K-Open loop

P70.Z200S

P70.Z200K

Units

Active axes

Z

Z

Drive control

1 driving channel

1 sensing channel

1 driving channel

Nominal travel range(0~120V)

136

136

μm±10%

Max.travel range(0~150V)

170

170

μm±10%

Sensor

SGS

-

Closed/open-loop resolution

6

2

nm

Linearity

0.05

-

%F.S.

Repeatability

0.02

-

%F.S.

Unloaded resonant frequency

500

500

Hz±20%

Resonant frequency@200g

250

250

Hz±20%

Step Time

20

2

ms±20%

Load capacity

Horizontal

0.5

0.5

kg

Vertical
0.02 0.02
Inverted
0.02 0.02

El.capacitance

7.2

7.2

μF±20%

Material

Steel,Al

Steel,Al

Mass(Cable included)

240

240

g±5%


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

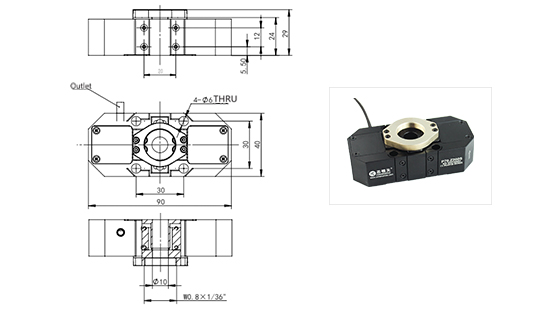

    Drawing (Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
