E00A02V050F10M Power Amplifier, Bandwidth up to 10MHz!

Update time：2023-10-13 15:43:14Clicks：1471second
Power amplifier is an amplifier with internal voltage and power amplifier circuit, which can amplify the weak external analog input signals or analog signals given by DA or other control signals, and then output.
CoreMorrow E00A02V050F10M power amplifier, its output bandwidth can be up to 10MHz, and the gain can be adjusted; Keyboard operation and touch operation areavailable. It can realize host computer communication with optional signal generator; Parameters can be customized.

Characteristics


Output bandwidth up to 10MHz
Output voltage up to 50V
Gain adjustable, 0.05 step
Optional signal generator
Parameters can be customized


Applications


Scientific research experiment
Driving piezo ceramics
Driving piezo transducer
Driving crystal
High power application


Introduction of the Panels



Front Panel

No.
Function discription
1
Menu，Analog/digital control interface switch button；
2
Rin， Input resistance switch button,  1KΩ/2KΩ
3
Rout，Output resistance switch button，1Ω/5Ω；
4
Output，Output button, press to start output；
5
Scale，Magnification adjustment encoder, press to select single step increments，1.0/0.1/0.05；
6
Input，Analog input interface；
7
Monitor，Monitor interface；
8
OUT，Output interface；
9
Reserved : Reserved function key；
10
USB，Upper computer communication interface；
11
 Touch screen display panel

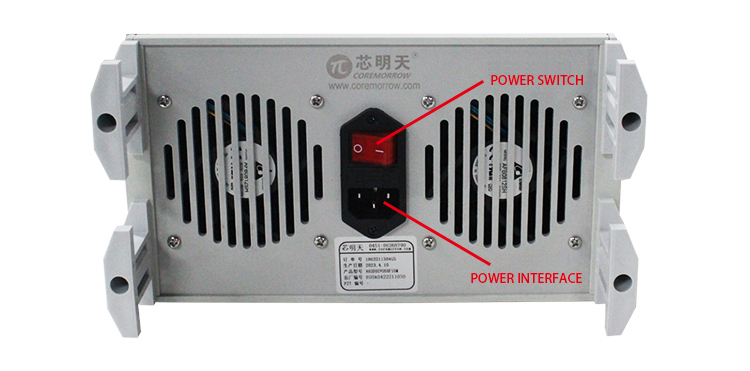

Rear Panel


Technical Data
Model
E00A02V050F10M
External input channel
2
Signal generator channel
2
Output type
Single output
Bandwidth（-3dB）
DC～10MHz
Max. output voltage
50Vp-p(25Vp)
DC offset
-25V～+25V adjustable
Max. output current
1Ap
Maximum output power/channel
25Wp
Fuse
4A/250V
Voltage gain
x0～5（0.05step）
Output resistance
1Ω/5Ω
Input resistance
1kΩ/2kΩ
Input voltage
5Vpp max
Max. capacitance
1μF
Output voltage error
≤±3%F.S.@1kHz
Voltage monitor
100：1（±5%）
Slew rate
1000V/μs
Total harmonic distortion (THD)
≤0.1%@1kHz，50Vp-p
Output voltage zero drift
≤0.2V
Signal to noise ratio (SNR)
≥80dB
Output interface
4mm Banana jack
Communication mode of upper computer
USB（slave computer to RS-232）
Upper computer control software
VB routine
Secondary development
Availble, provide communication protocol
Protection
Over current protection, over temperature protection
Signal Ground
Connected with the chassis and power cord
Power supply voltage
AC220V±10%，50Hz
Operating temperature
0～45℃
Storage temperature
-20～50℃
Operating humidity
≤80%RH，non-condensing
Dimensions (width × height × depth)
270×134×510mm



CoreMorrow Power Amplifier

CoreMorrow has nearly 20 years of experience in power amplifier development and production, we can make custom products according to the needs of users. Fuctions like bandwidth, gain, input/output resistance, shape size, sweep function, ect. all can be customized. The amplifiers can be used to drive CoreMorrow products and imported various types of piezo products and capacitive load.
① Modular power amplifier
E00/E01 series power amplifier, bandwidth up to 50kHz, output voltage up to 1800V, voltage gain up to 180 times.


② Small volume power amplifier
E53 series power amplifiers are single-channel analog and digital controllers with a bandwidth of 10kHz that amplify 0-10V analog input signals to 0-120V or 0-150V.


③ USB power amplifier
E63.C series USB power amplifier, can be controlled by software, and directly inserted into the computer for output voltage size and output frequency control, it’s output voltage is 0-150V, and bandwidth is 1kHz.


④ Hundreds channel power amplifier
E82.C256K-J power amplifier, with 256 output channels, can be connected to the upper computer through the network port to control the output voltage of the amplifier, its bandwidth is up to 1.5kHz.
