E82.C256K-J Chassis-type Piezo ControllerCurrent Location:Product Homepage >> Controllers for PDM>>E82.C256K-J Chassis-type Piezo Controller
E82.C256K-J Piezo Controller for PMDs
  • Introduction
  • Feedback

E82.C256K-J Chassis-type Piezo Controller is designed to drive PDMs and other products. It has 256 output channels, and use Ethernet communication design.

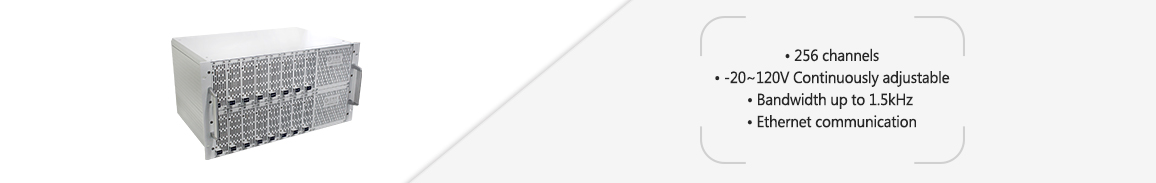

Characteristics


 256 channels

 -20~120V Continuously adjustable

 Bandwidth up to 1.5kHz

 Ethernet communication

 Computer software control

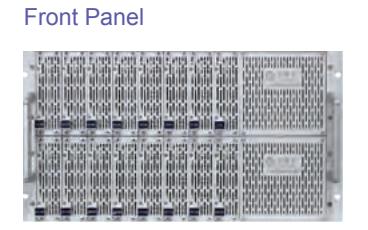

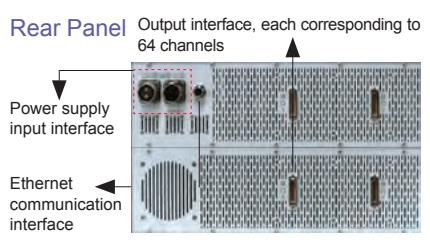

Panel Introduction

Panel Introduction

E82.C256K-J-PW Power Supply Module

    Technical Data

Model

E82.C256K-J

Output channels

256

Output voltage(V)

-20V~+120, continuously adjustable

Output voltage resolution(mV)

10

Output voltage ripple(mV)

< 40

Voltage shock(V)

< 2

Bandwidth(kHz)

1.5

Step time(ms)

110@(1.5kHz, 5V@6.8μF)

Full output power(kW)

2.7

Output protection

Overcurrent protection

Output interface

JONHON J24H-74ZKH

Communication interface

100M Ethernet

AD acquisition

Software display

Supply voltage

135V,40A;35V,20A;24V,10A

Operating temperature(°C)

-10~40

Storage temperature(°C)

-20~50

Size(mm)

486×320×267

Mass(kg)

30

Cooling method

air-cooled heat dissipation

power supply module

E82.C256K-J-PW power supply

Customization

Available

     Drawing (Click on the picture to enlarge it)
Click on the picture to enlarge it
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual

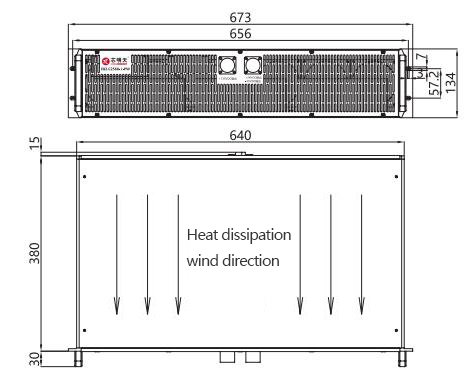

E82.C256K-J-PW Power Supply Module


To power E82.C256K-J Piezo Controller : Input voltage: 220V AC; Output voltage: 135V, 40A; 35V, 20A; 24V, 10A; Size as follows.

    Drawing (Click on the picture to enlarge it)
Click on the picture to enlarge it
