New Product Recommendation XD505.T0S Large Load θx,θy Piezo Tip/Tilt Stage

Update time：2023-11-03 16:32:27Clicks：1169second


CoreMorrow piezo tip/tilt stage makes precise angle adjustment driven by piezoelectric ceramic, and the internal design of the flexible hinge parallel structure with no return error ensures that the product has high deflection accuracy and stability, which can tilts in θx, θy and rotates in Z, or at the same time with linear motion, and the response speed is fast. It is widely used in semiconductor technology, communication and integrated optics, optical instrument equipment, medical biomicroscopy equipment, aerospace and other high-precision positioning systems.


CoreMorrow Piezo Tip/Tilt Stage


XD505.T0S is a large-load two-axes tip/tilt stage designed by CoreMorrow, which can produce θx andθy two axis deflection. Its max load capacity can be up to 20kg. It can carry out high dynamic and high precision motion with load. If configured with closed-loop sensor, its resolution can be up to 0.01μrad. The size is 140×140×40mm^3, with a 60×60mm^2 aperture, which is very suitable for transmitted light applications. The physical appearance is shown as below.

Characteristics

•θx、θy two axis deflection
•Load can be up to 20kg
•Optional open-loop and closed-loop version
•Aperture size of 60×60mm^2

Application

•Transmitted light application
•Large load applications
•Beam deflection/stabilization
•Laser beam coupler

Technical Data


Model

XD505.T0S

Active axes

θx、θy

Sensor

SGS

Nominal tilt angle（0~120V）

0.28mrad/axis

Tilt angle（0~150V）

0.35mrad/axis

Resolution

0.01μrad

Unloaded resonant frequency

4.6kHz/axis

Loaded resonant frequency@5kg

θx 0.4kHz/θy 0.32kHz

Step time

50ms

Load capacity

20kg

El. capacitance

14.4μF

Material

Steel, aluminium

Mass (Including cable)

2100g


Recommended Controller


E70 Piezo Controller

E70 piezo controller is very suitable for driving XD505.T0S, it is a three cahnnel piezo ceramic controller with small volume, high power, low power consumption, high bandwidth, and low ripple noise, which can realize digital communication through serial port, USB or network port.

Typical Applications of Piezo Tip/Tilt Stage


1.Microscopic Imaging


With the continuous development of science and technology, people's exploration of the microcosmic world of materials and organisms is getting deeper and deeper, and ultra-high resolution microscopic imaging technology is becoming more and more important. The ultra-high resolution microscopic imaging technology uses cutting-edge optical systems and sensitive imaging equipment to present high-definition details, and the piezo tip/tilt stage is one of the most important components. It can drive the sample for θx, θy deflection or θz rotation, or z-up and down leveling and focusing, and the built-in precision sensor for full closed-loop position feedback for your option, which has very high motion control accuracy, deflection resolution up to submicro radians, positioning stability time for milliseconds, so that the microscopic imaging resolution is greatly improved.

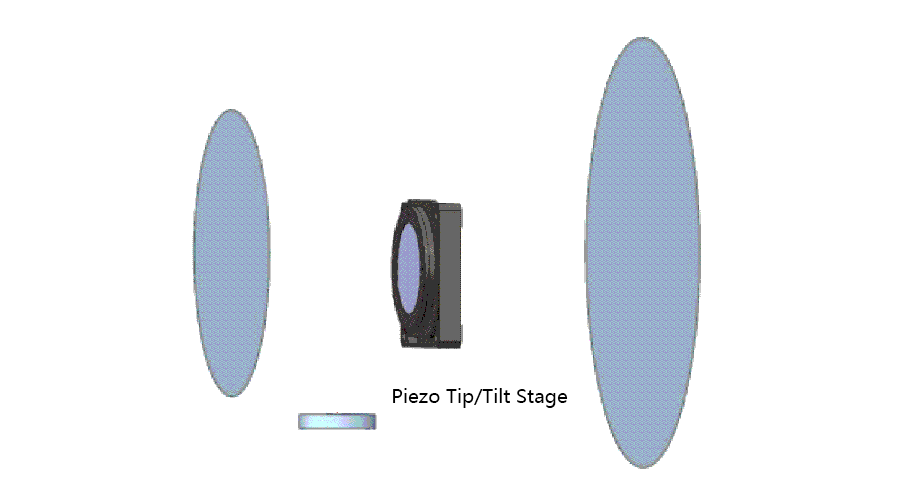

2.Optical Beam Scanning


Tip/tilt stage or mirror is one of the important parts of modern optical machine system, which is mainly used in scanning tracking, optical path modulation and buffeting suppression of high precision optical machine system. Piezo tip/tilt stage can realize fast beam scanning, and ensure not only the accuracy but also fast tracking. It is very suitable for application in the new generation of space optical system, such as laser communication platform, space telescope and reconnaissance camera.


3.Space Disturbance Simulation System


Piezo tip/tilt stage can simulate small disturbances in space, such as small vibration, small rotation, etc., to test and verify the attitude of components and control system performance. By testing the component on the piezo tip/tilt stage, the performance of its attitude or optical path control system can be evaluated, its control algorithm can be optimized, and its stability and accuracy can be improved to ensure that the component can successfully complete the task in the space device.

For more details, please contact us by calling 0451-86268790, 17051647888 (wechat ID).
