P15.XYZ300S/K-C2 Piezo Nanopostioning Scanners is a threedimensional XYZ axis motion piezo nanopositioning stage. The stroke of each axis can reach 300 microns, and the center has a large aperture, which is very suitable for transmitted light applications.

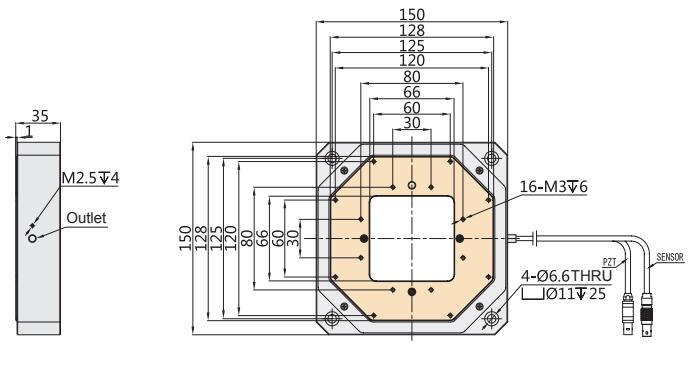

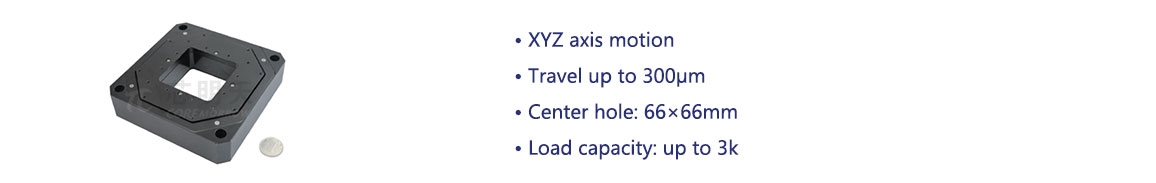

Characteristics
|
|
|
|
|
|

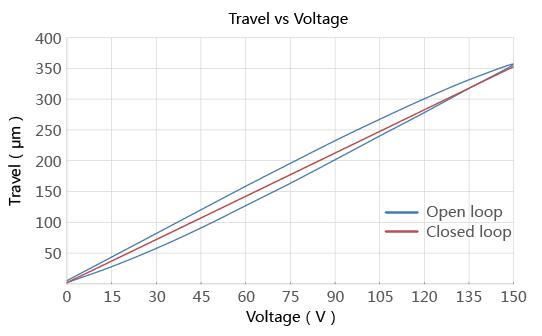

Travel vs Voltage
|

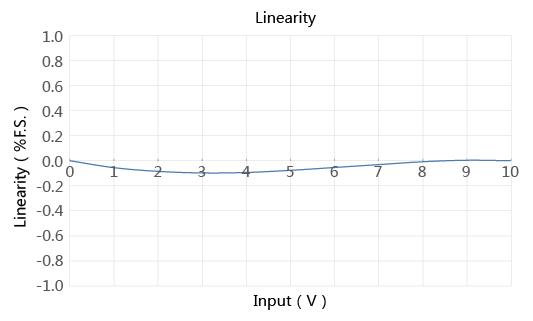

Linearity
|
Application
|
|
|
|
|
| Technical Data | ||||
|
Type |
P15.XYZ300S-C2 |
P15.XYZ300K-C2 |
Units |
|
|
Active axes |
X、Y、Z |
X、Y、Z |
|
|
|
Driving channels |
4 driving channels |
4 driving channels |
|
|
|
Travel（0~120V） |
±120/axis |
±120/axis |
μm±10% |
|
|
Max.travel（0~150V） |
±150/axis |
±150/axis |
μm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Aperture |
66×66 |
66×66 |
mm |
|
|
Size |
150×150×35 |
150×150×35 |
mm |
|
|
Resolution |
10 |
5 |
nm |
|
|
Linearity |
0.2 |
- |
%F.S. |
|
|
Closed loop repeatability |
0.15 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
<100 |
<100 |
μrad |
|
|
Stiffness |
1 |
1 |
N/μm±20% |
|
|
Push/pull force |
200/10 |
200/10 |
N |
|
|
Unloaded resonant frequency |
190/145/249 |
190/145/249 |
Hz±20% |
|
|
Resonant frequency @ 300g |
145/110/145 |
145/110/145 |
Hz±20% |
|
|
Load capacity |
Horizontal |
5 |
5 |
kg |
|
Vertical |
1 | 1 | ||
|
Inverted |
1 | 1 | ||
|
El. capacitance |
21.6/axis |
21.6/axis |
μF±20% |
|
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
