P77.S310 P77.K310 Piezo Phase ShifterCurrent Location:Product Homepage >> X/Z Piezo Nanopositioner>>P77.S310 P77.K310 Piezo Phase Shifter
  • Introduction
  • Feedback

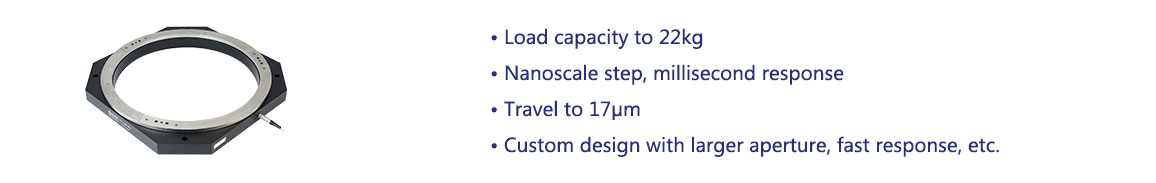

Characteristics


 Z axis motion

 Travel to 17μm

 Aperture:Ø310mm

 Optional horizontal, vertical, inverted mounting

    Technical data

Models

P77.S310
P77.K310

Units

Active axes

Z



Travel range(0~120V)

13.5

μm±10%

Max.travel range(0~150V)

17

μm±10%

Sensor

SGS/-


Aperture

Φ310

mm

Resolution

0.5/0.2

nm

Pitch/Yaw/Roll

-

μrad

Push/pull force

100/220

N

Unloaded resonant frequency

1500

Hz±20%

Unloaded Step time

-

ms±20%

Load capacity

Horizontal

22

kg

Vertical
22
Inverted
22

Electrical capacitance

19.5

μF±20%

Material

Aluminum

steel



Mass

4200

g±5%

Operating temperature

-20~80

Control

1~3



Connector

LEMO



Cable length

1.5

m±10mm

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.


Mounting Method Horizontal Mounting
Vertical Mounting
Inverted Mounting
Definition
   Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table

  Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity

  Place the PZT platform horizontally, but the moving surface is located below the PZT platform

Diagram


Note

When the mounting method is selected as vertical mounting, pay attention to the outlet port

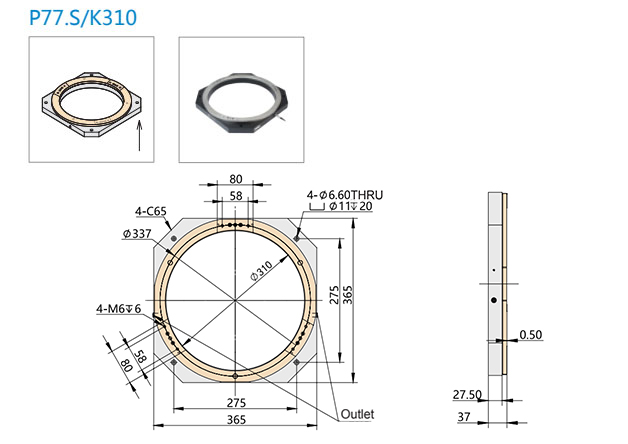

    Drawings(Click on the picture to enlarge it)
     Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
