Characteristics

Z axis motion

Travel to 100μm

Aperture：Ø85mm

Optional horizontal, vertical, inverted mounting

Technical data
Models		P77.100S85	P77.100K85	Units
Active axes		Z	Z
Travel range(0~120V)		80	80	μm±10%
Max.travel range(0~150V)		100	100	μm±10%
Sensor		SGS	-
Aperture		Φ85	Φ85	mm
Resolution		5	1.5	nm
Pitch/Yaw/Roll		＜5	＜5	μrad
Push/pull force		-	-	N
Unloaded resonant frequency		190	190	Hz±20%
Unloaded Step time		20@10μm，1.2kg	5	ms±20%
Load capacity	Horizontal	3	3	kg
	Vertical	1	1
	Inverted	1	1
Electrical capacitance		14.4	14.4	μF±20%
Material		Al, Copper	Al, Copper
Mass		2000	2000	g±5%
Operating temperature		-20~80	-20~80	℃
Cable length		1.5	1.5	m±10mm

Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.

Technical data are measured by CoreMorrow E00/E01 series piezo controller.

Mounting Method	Horizontal Mounting	Vertical Mounting	Inverted Mounting
Definition	Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane. PS: Default direction for carrying capacity in the parameter table	Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity PS:There are multiple vertical installation methods, and the technical data corresponds to the minimum load capacity	Place the PZT platform horizontally, but the moving surface is located below the PZT platform
Diagram
Note	When the mounting method is selected as vertical mounting, pay attention to the outlet port

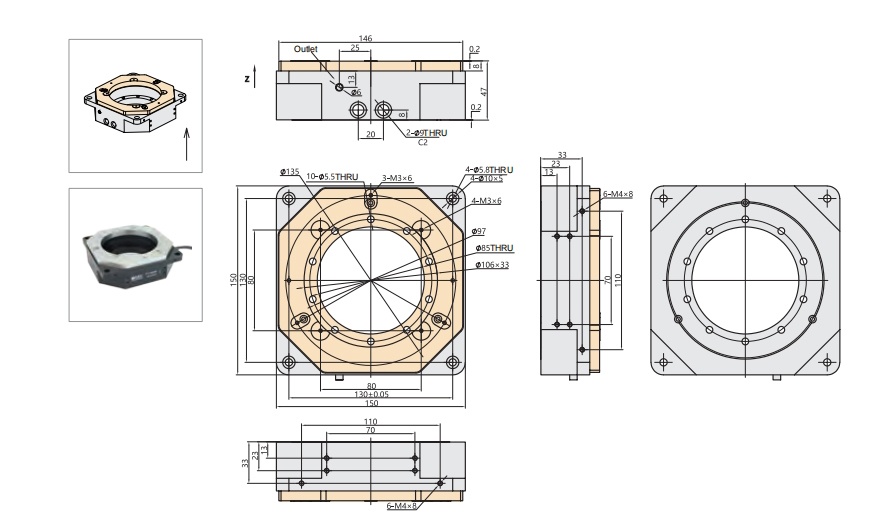

Drawings（Click on the picture to enlarge it）
