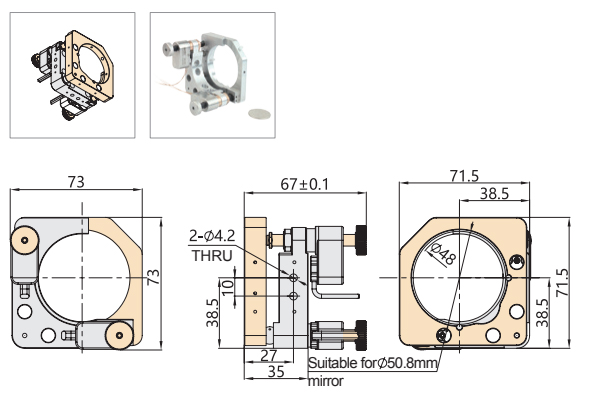

The T50N81K13/T100N81K13 piezoelectric mirror mount is specially designed for automatic angular deflection of large mirror. It has two linear actuation points for two-dimensional θx θy deflection motion adjustment of the mirror.
Characteristics
|
|
|
|
|
|
|
|
|
|
More flexible with motorized operation
|
|
| Technical Data | |||
|
Type |
T50N81K13 |
T100N81K13 |
Units |
|
Type |
Center mount |
Center mount |
|
|
Active axes |
θx, θy |
θx, θy |
|
|
Mirror diameter |
50.8 |
101.6 |
mm |
|
Motorized axes |
2 |
2 |
pcs |
|
Tilt range |
±5 |
±3.5 |
° |
|
Angular resolution |
±0.7 |
±0.7 |
μrad |
|
Actuator |
Piezo screw actuator |
Piezo screw actuator |
|
|
Operating temperature |
10~40 |
10~40 |
℃ |
|
Mass |
285 |
460 |
g±5% |
|
Recommended controller |
E53.C4K-H |
E53.C4K-H |
|
|
PZT connector |
RJ11 |
RJ11 |
|
