E53.D2E-H/E53.C2K-J Compact Piezo Motor Controller is designed for driving CoreMorrow piezo motor, and can drive up to 2 piezo motors simultaneously. It is controlled by digital signal, and features small size.
Characteristics
|
|
|
|
|
|
|
|
| Technical Data | |||
|
Type |
E53.D2E-H |
E53.C2K-J |
Units |
|
Servo control |
Servo control |
Open loop |
|
|
Channels |
2 |
2 |
|
|
Power supply |
24VDC/1A(20~30V) |
24VDC/1A(20~30V) |
|
|
Static dissipation |
<5 |
＜5 |
W |
|
Processor |
32bit 480MHz |
32bit 480MHz |
|
|
D/A converter |
16bit |
16bit |
|
|
Communication interface |
Type-C, RS-232/422 |
Type-C, RS-232/422 |
|
|
Rated output |
9 | 9 | w |
|
Operating temperature |
0~50 |
0~50 |
℃ |
|
Output short-circuited current |
60 | 60 | mA |
|

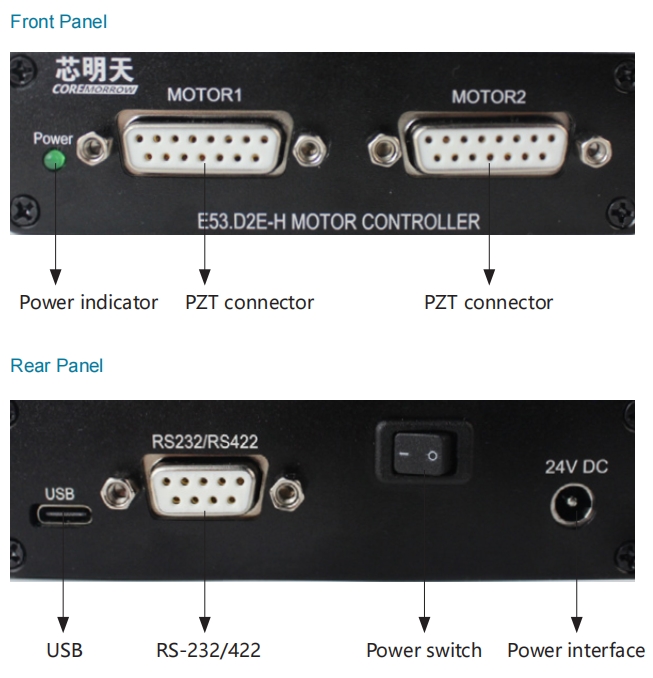

PZT connector |
DB15 |
DB15 |
|
|
Communication connector |
DB9, Type-C |
DB9, Type-C |
|
|
Size |
105×103×30.1 |
105×103×30.1 |
mm³ |
|
Mass |
260 |
260 |
g±5% |
