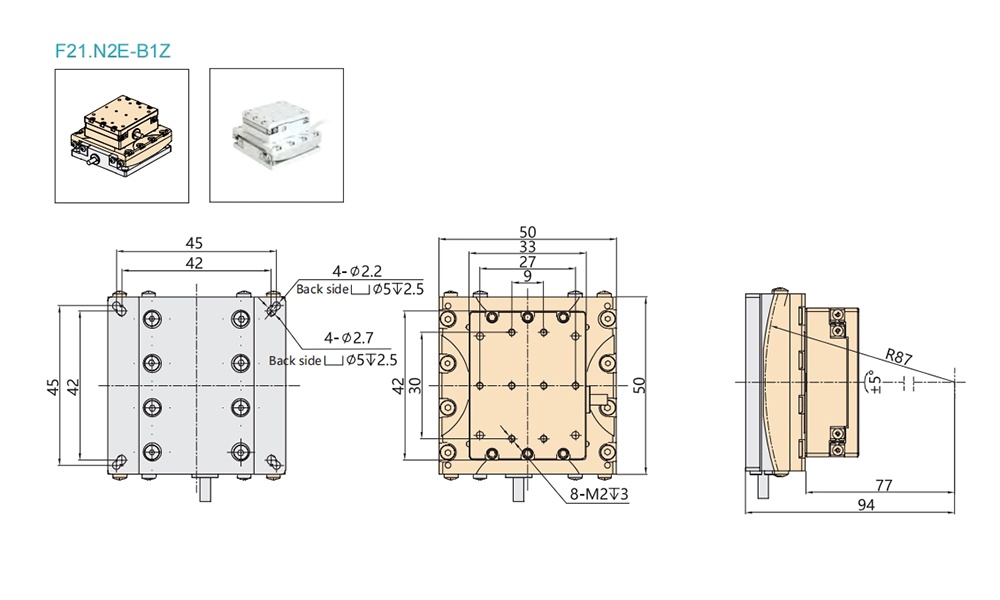

F21.N2E-B1Z is a vacuum two-dimensional motion piezo stage that can perform X-direction linear motion and θx deflection motion. The linear travel of the X-axis can reach 10mm, and the deflection travel of θx can reach 10°. It can carry 600g of samples for motion control. The appearance structure design is compact and the size is small, suitable for various high-precision motion control applications.
Characteristics
|
|
|
|
|
|
|
|
|
|
Applications
|
|
|
|
|
|
|
|
|
|
 Optical fiber alignment
|
Optical testing system
|
Biomedical
|
Super-resolution imaging sample movement
|
|
Recommended Controller  E53.D2E-H |
| Technical Data | ||
|
Type |
F21.N2E-B1Z |
Units |
|
Active axes |
X、θx |
|
| Integrated sensor | Grating sensor |
|
|
Travel range in X |
10 or ±5 |
mm |
|
Travel range in θx |
10 or ±5 | ° |
|
Speed limit in X |
3 |
mm/s±20% |
|
Speed limit in θx |
3 | °/s±20% |
|
Resolution in X |
5 |
nm±20% |
|
Resolution in θx |
1 |
μrad±20% |
| Linearity in X | 0.8 |
μm±20% |
|
Linearity in θx |
0.01 |
°±20% |
| Repeatability in X | 0.1 |
μm±20% |
|
Repeatability in θx |
0.001 |
°±20% |
|
Load capacity |
600 |
g |
|
Operating temperature |
0~40 |
℃ |
| Mass(not include cable) | 200 | g±5% |
| Material | Steel, Al |
|
|
Cable length |
0.7 |
m±10mm |
|
Connector |
DB15male |
|
