N70 Piezo Tilt StageCurrent Location：Product Homepage >> Linear piezo motor>>N70 Piezo Tilt Stage

Introduction
Feedback

N70.U10E/K is a 1-axis θx piezo stage with a travel range of ±5°，and the closed-loop repeatability can reach 0.001°。It is very suitable to use in high precision application field。

Characteristics

θx deflection	Speed up to 3°/s	Closed-loop version for high accuracy	Optional vacuum version
Self-locking at rest, requires no current

Applications

Image processing and stabilization

Laser scanning

Communication field

Laser beam deflection/ stabilization

Technical Data
Type	N70.U10E	N70.U10K	Units
Active axis	θx
Integrated sensor	grating sensor	-
Speed limit	3	3	° /s±20%
Travel range	±5	±5	°
Horizontal central load capacity	0.5	0.5	kg
Vertical central load capacity	0.15	0.15	kg
Resolution	1	10	μrad±20%
Closed-loop repeatability	0.001	-	°±20%
Operating temperature	10~40	10~40	℃
Storage temperature	-10~40	-10~40	℃
Mass	Al,Steel	Al,Steel
Material	135	120	g±5%

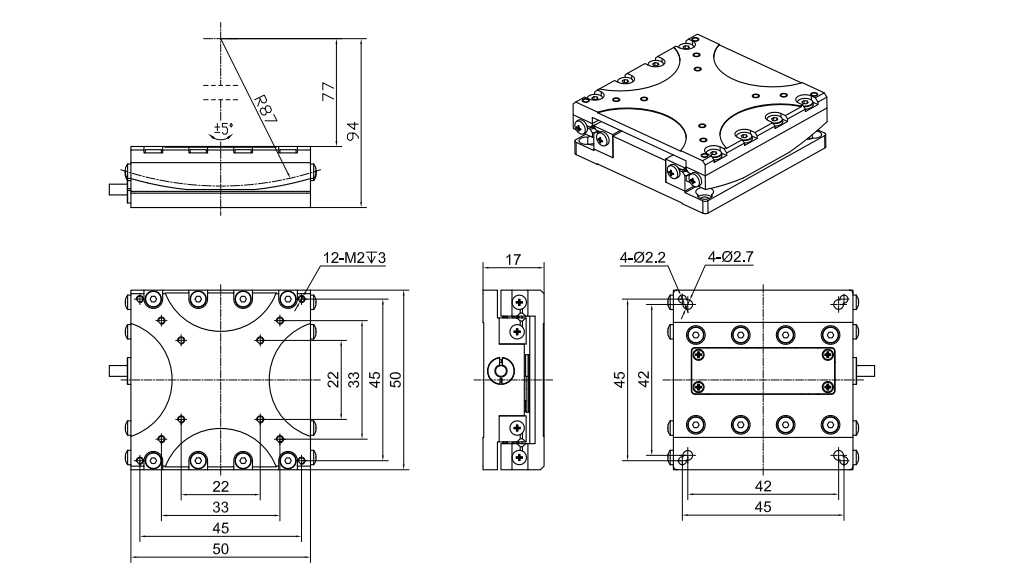

Drawing （Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
