      H80K1T35 features manual deflection and piezo-drive linear motion. The linear displacement is controlled by DC voltage signal and has displacement of about 0.7 μm@150 V, which can be used for fast step phase shifting applications. Max of driving voltage is 800V, and the displacement is ~3.73 μm. H80K1T35-B is designed for image shifting applications and can be ultrafast (μs-level) step-bystep adjustment by voltage control. At the same time, the angle of θx, θy deflection can be adjusted manually with deflection range up to ±4°.

      The H80K1 integrated mirror mounts piezo actuator has two models to choose from, namely H80K1T25 (standard lens diameter of 25.4mm) and H80K1T35 (standard lens diameter of 35mm). It is driven internally by piezo ceramic tubes and can be controlled through DC voltage signals, and has displacement of about 0.7μm@150V, which can be used for fast step phase shifting applications.

       It is designed for image shifting applications and can realize ultrafast(μs-level) step-by-step adjustment by voltage control. At the same time, the angle of θx, θy deflection can be adjusted manually with deflection range up to ±4°. Combining lens adjustment with image shift stepping makes it more convenient for applications such as image shift and interferometry.



Characteristics


 With 0~150V voltage drive, the travel range is about 0.7μm

 Manual adjustment of θx θy two-axis deflection angle

 Single axis adjustment angle range is 0~±4°

 Standard loadable lens diameter is 25.4mm or 35mm, customized

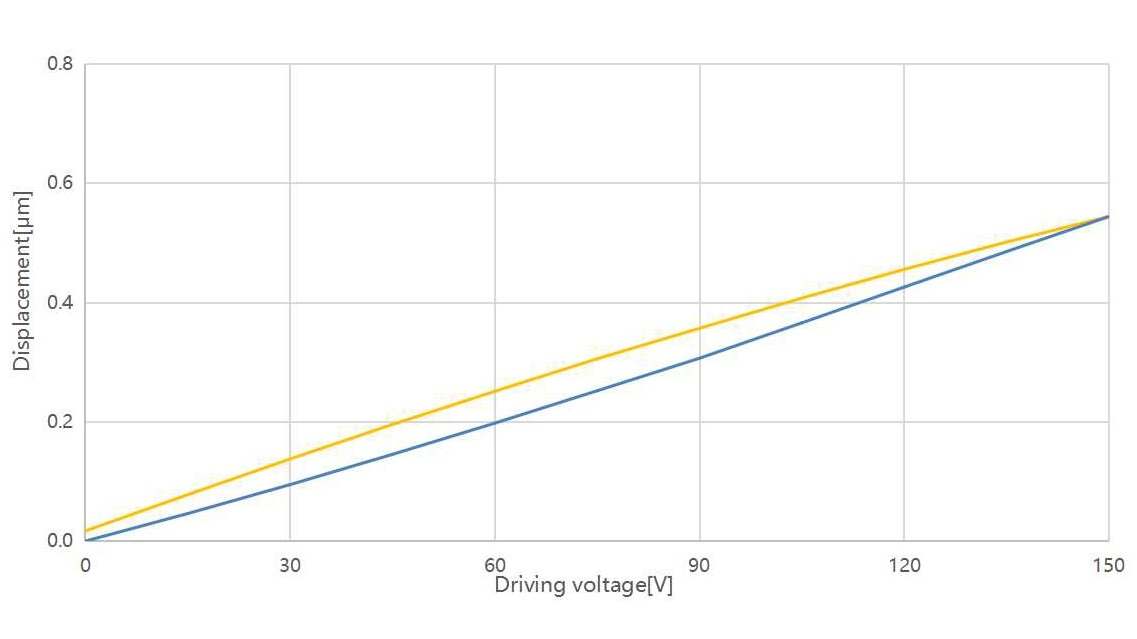

Driving Voltage and Displacement Curve


Applications


 Fast nano-stepping

  phase shiftingt

 optical path adjustment

  interferometry

 fast step adjustment

 stepping

 interference

  metering

    Technical Data

Types

H80K1T25

H80K1T35

Units

Active axes

Piezo drive

Z

Z



Manual

θx θy

θx θy



Travel (piezo)

0.7@150V

0.7@150V

μm±20%

Manual θx θy tilt angle

±4

±4

°/axis

Unloaded resonant frequency

47.8

47.8

kHz±20%

El.capacitance

48

48

nF±20%

Standard loadable lens diameter

Φ25.4 (Customizable)

Φ35 (Customizable)

mm

Max.driving voltage

0~800

0~800

V

Mass

170

175

g±5%

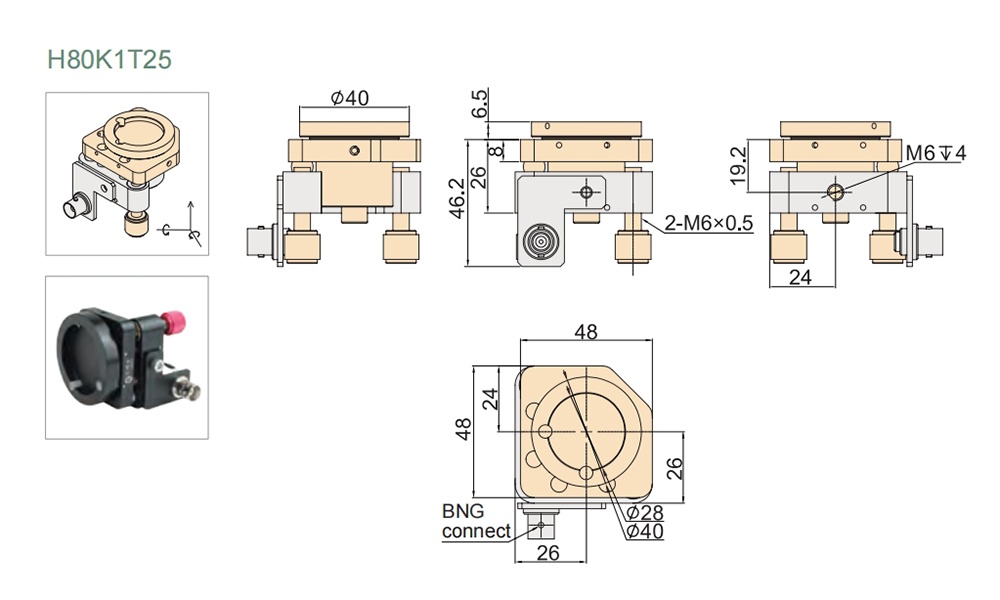

    Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual

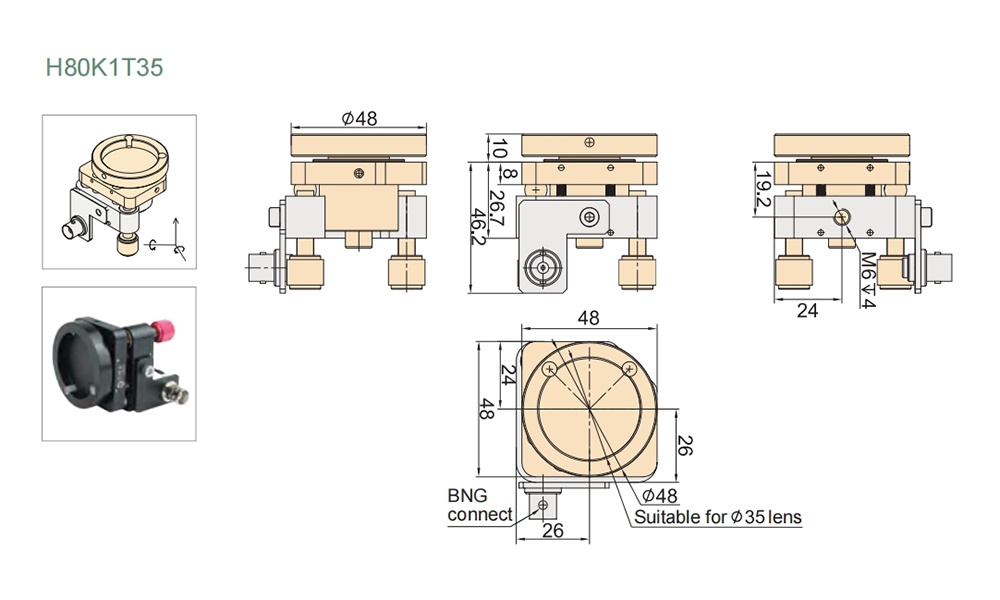

    Drawings(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual



     3D diagram presentation
     Downloads
