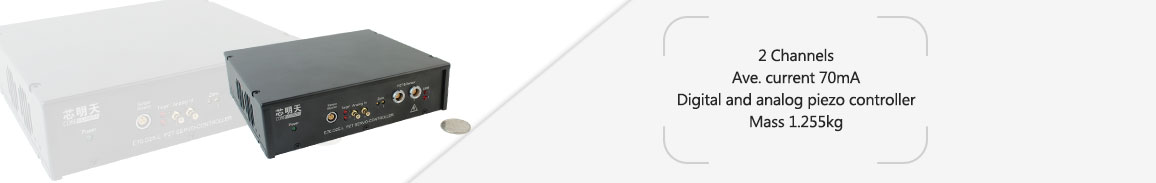

E70.D2S/C2K-L Multi-channel Piezo Controller is a two-channel piezoelectric controller designed based on the standard E70 piezoelectric controller. It can carry out digital communication through serial port, USB or network port.
Characteristics
|
|
|
|
Front panel ![]() |

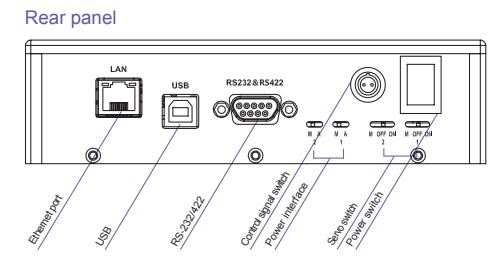

Rear panel ![]() |
Technical Data | ||
Type |
E70.C2K-L |
E70.D2S-L |
Functions |
Digital and analog piezo controller |
|
Drive |
||
Channels |
2 |
|
Nominal analog input(V) |
-1.67~10 (±10V for constant voltage version) |
|
Nominal output voltage(V) |
-20~120(Optional -20~100/150 and one constant voltage) |
|
Input power(W) |
56 |
|
Peak current(A) |
1.1/channel |
|
Ave. current(mA) |
70/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
5/channel(2.2μF) |
|
PZT and sensor connector |
ZCG.0B.306.CLLV |
|
Control input connector |
SMB |
|
Servo contro |
||
Sensor type |
- |
SGS |
Servo |
- |
P.I+Low pass+Notch filter |
Sensor output connector |
|
0~10(±10V for constant voltage version) |
Sensor output voltage(V) |
- |
EPG.0B.304.HLN |
Sensor output ripple(mV) |
- |
10 |
Master control |
||
Communication |
RS-232/422(D-SUB 9), USB(Micro Type-female seat) |
|
Baud rate |
9600, 38400, 57600, 115200 |
|
Settable baud rate for Software secondary development |
9600, 19200, 38400, 57600, 76800, 115200, 128000, 230400, 256000 |
|
PC software control function |
Output voltage & displacement, waveform control, setting parameters |
|
PC software waveform control |
Programmable/standard waveform output |
|
Secondary development |
VC++, Matlab, LabView, DLL dynamic link library functions, etc |
|
Others |
||
Operating temperature(°C) |
0~50 |
|
Over-current protection |
Yes |
|
Static power(W) |
11 |
|
Cooling method |
Fan |
|
Size(mm) |
147×170×45.5 |
|
Mass(kg) |
1.255 |
|
Power supply |
24V DC3A |
|
Control way |
Analog/digital signal |
|
|
