To meet the small-volume application requirements, CoreTomorrow develops E53 series piezo controller. It is a single-channel controller controlled by analog and digital signals. It has three specification versions with different functions. Its the power supply is 24VDC/1A. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|
|
|
E53.A Driving Principle
|
E53.A Panel Introduction
|
|
E53.B Driving Principle
|
E53.B Panel Introduction
|
|
E53.C Driving Principle
|
E53.C Panel Introduction
|
|

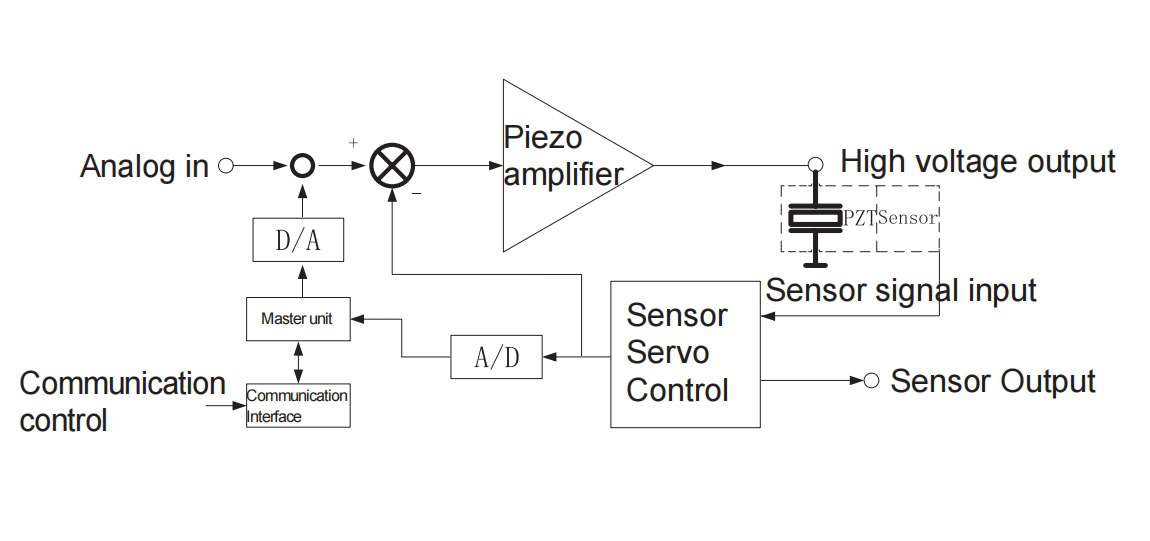

E53.D Driving Principle
|
E53.D Panel Introduction
|
|
Frequency, Ouput Voltage and Load Curves
|
Selection Guide
|
| Technical data | ||||
|
Models |
E53.A1K-H |
E53.B1S-H |
E53.C1K-H |
E53.D1S-H |
|
Channels |
1 |
|||
|
Input voltage (V) |
-1.67~10 |
|||
|
Output voltage (V) |
-20~120(Optional -20~150) |
|||
|
Peak current(A) |
1 |
|||
|
Ave. current(mA) |
60 |
|||
|
Bandwidth(kHz) |
10 |
|||
|
Ripple(mVpp) |
10(@2.2μF) |
|||
|
PZT connector |
ZPL.00S.250.HLN |
ZPG.0B.306.HLN |
ZPL.00S.250.HLN |
ZPG.0B.306.HLN |
|
Input connector |
SMB |
|||
|
Sensor |
||||
|
Sensor type |
- |
SGS |
- |
SGS |
|
Servo characteristic |
- |
Analog P-I+Notch filter +Low pass filter |
- |
Analog P-I+Notch filter +Low pass filter |
|
Sensor connector |
- |
ZPG.0B.306.HLN |
- |
ZPG.0B.306.HLN |
|
Sensor output connector |
- |
SMA |
- |
SMA |
|
Interfaces and operation |
||||
|
Communication interface |
- |
- |
USB(TYPE-C), RS-422(D-SUB9), RS-232(D-SUB9) |
|
|
Baud rate |
- |
- |
9600、19200、38400、115200 |
|
|
Software Secondary development baud rate |
- |
- |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
|
|
Processor |
- |
- |
32Bit 168MHz |
|
|
D/A converter |
- |
- |
16Bit |
|
|
A/D converter |
- |
- |
16Bit |
|
|
Others |
||||
|
Operating temperature(°C) |
0~50 |
|||
|
Output current, short-circuit (mA) |
60 |
|||
|
Overcurrent indication |
Overcurrent indicator lights when output ave. current > 60mA |
|||
|
Static power(W) |
1.8 |
<4 |
<5 |
<5 |
|
Size(mm) |
85×27.5×80 |
123×27.5×80 |
148×27.5×80 |
148×27.5×80 |
|
Mass(kg) |
0.24 |
0.32 |
0.35 |
0.37 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
|||
