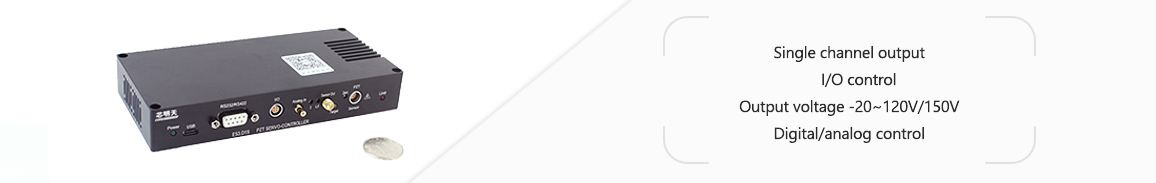

The E53. D1S-H9 customized piezo controller is designed based on the standard E53.D1S-H9 piezo controller, adds I/O control function. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|
Appliciation
|
|

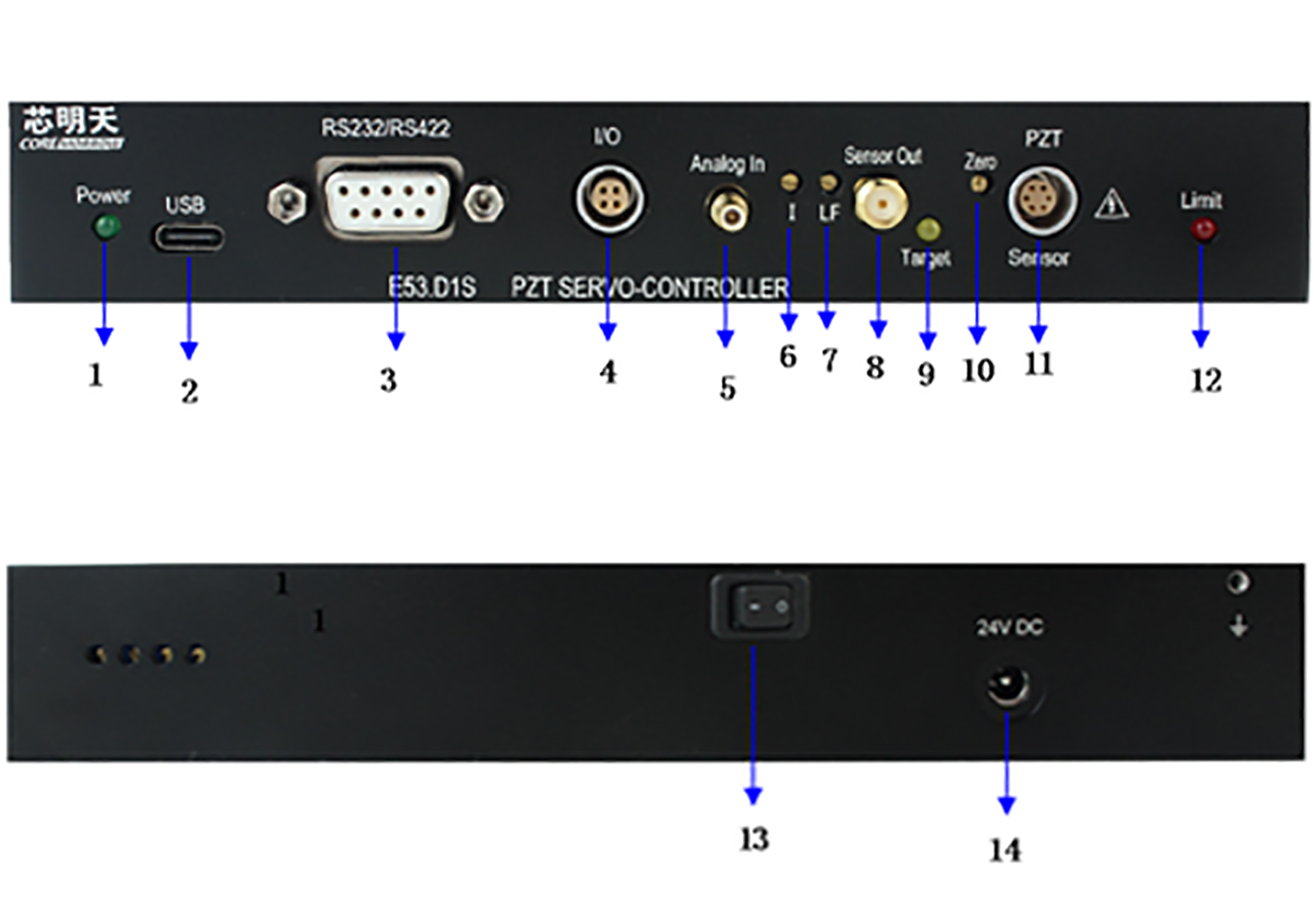

Panel Introduciton ![]() |

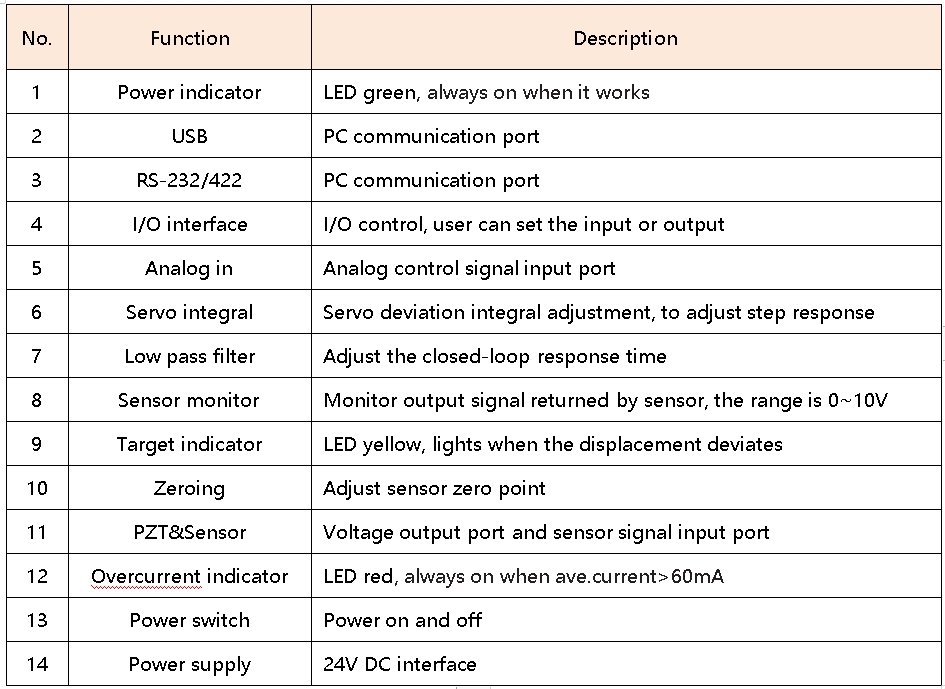

Panel Introduciton ![]() |
Technical Data | |
Type |
E53.D1S-H9(Customized version) |
Channels |
1 |
input voltage(V) |
-1.67~10 |
Output voltage(V) |
-20~120(Optional -20~150) |
Peak current(mA) |
1 |
Ave.current(mA) |
60 |
Bandwidth(kHz) |
10 |
Ripple(mVpp) |
10(@2.2μF)) |
PZT connector |
ZPG.0B.306.HLN |
Input connector |
SMB |
Sensor type |
SGS |
Servo characteristics |
Analog P-I+Notch filter +Low pass filter |
Sensor connector |
ZPG.0B.306.HLN |
Sensor output connector |
SMA |
I/O interface |
Setting the input or output |
I/O connector |
EPG.0B.304.HLN |
Communication interfaces |
USB, RS-232/422 |
Baud rate |
9600, 19200, 38400, 115200 |
Secondary development baud rate |
9600, 19200, 38400, 57600, 76800, 115200 , 128000, 230400, 256000 |
Processor |
32Bit 168MHz |
D/A converter |
16Bit |
A/D converter |
16Bit |
Operating temperature(°C) |
0~50 |
Output current, short-circuit(mA) |
60 |
Overcurrent indicator |
Lights when output ave.current > 60mA |
Static power(W) |
<5 |

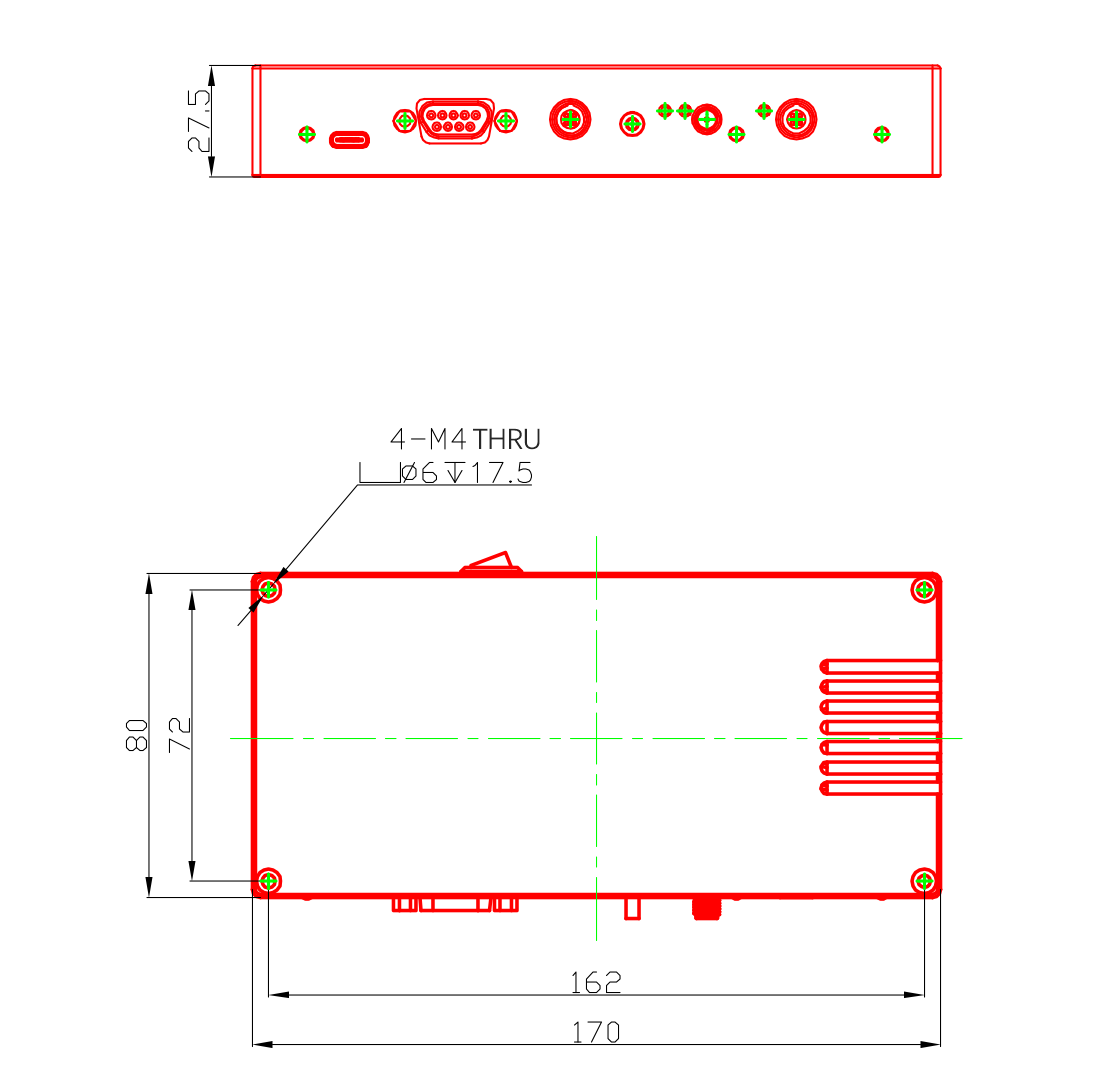

Size(mm^3) |
170×27.5×80 |
Mass(kg) |
0.4 |
Power supply |
24V(20~30V)DC1.5A(36W) |
|
|
