E53.D1C-H Compact Piezo Controller are servo controllers controlled by analog and digital signals, designed and developed specially for driving piezo products equipped with capacitive sensors. This model has a size of 165×27.5×147mm^3, and the power supply is 24VDC/1A. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|
|

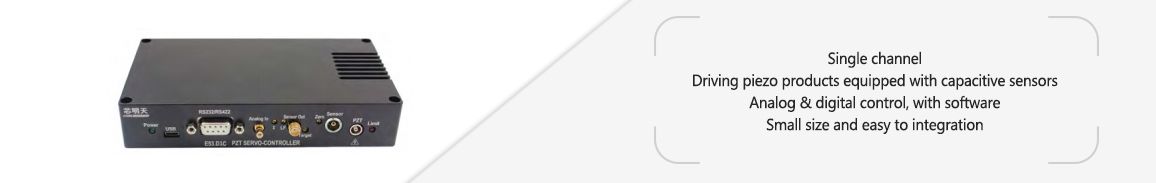

Single channel|

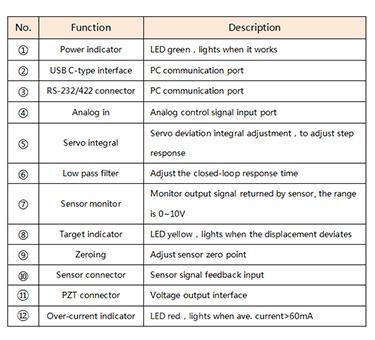

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.D1C-H |
|
Channels |
1 |
|
Nominal input voltage(V) |
-1.67~10 |
|
Nominal output voltage (V) |
-20~120V(optional -20~150V) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mV) |
10(@2.2μF) |
|
Input connector |
SMB |
|
PZT connector |
ZPL.00S.250.HLN |
|
Sensor type |
CAP |
|
Servo characteristics |
Analog P-I+Notch filter+Low pass filter |
|
Sensor connector |
G10S0C-FT1LJG0-000L |
|
Sensor output connector |
SMA |
|
Interface |
TYPE-C，D-SUB9 |
|
Baud rate |
9600、19200、38400、115200 |
|
Secondary development baud rate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
|
Processor |
32Bit 168MHz |
|
D/A converter |
16Bit |
|
A/D converter |
16Bit |
|
Operating temperature(°C) |
0~50 |
|
Output current,short-circuit(mA) |
60 |
|
Over-current indicator |
Lights when output ave. current > 60mA |
|
Static power(W) |
＜ 5 |
|
Size(mm) |
165×27.5×147 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
