The S50.U0C/K piezo stage is an X deflection stage, which is specially designed for heavy load applications. It features 7kg load capacity, the deflection angle under 100V driving voltage of 0.19mrad, and the corresponding closed-loop step time of 17ms.

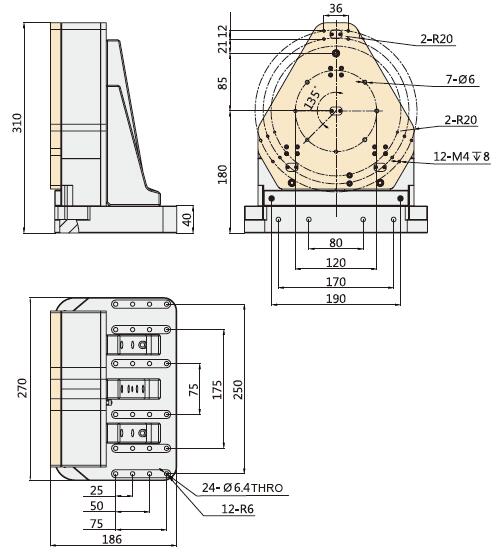

Characteristics
|
|
|
|
|
| Technical Data | |||
|
Type |
S50.U0C |
S50.U0K |
Units |
|
Active axis |
θx |
θx |
|
|
Drive control |
2 driving channels 1 sensing channel |
2 driving channels |
|
|
Tilt angle@100V |
0.19 |
0.19 |
mrad±10% |
|
Integrated sensor |
CAP |
- |
|
|
Closed-loop linearity |
1.25 |
- |
%F.S. |
|
Closed-loop repeatability |
1 |
- |
%F.S. |
|
Unloaded resonant frequency |
1000 |
1000 |
Hz±20% |
|
Resonant frequency @7kg load |
210 |
210 |
Hz±20% |
|
Closed/open-loop step time |
17 |
16 |
ms±20% |
|
Load capacity |
7 |
7 |
kg |
|
El. capacitance |
40 |
40 |
μF±20% |
Note: The above parameters are measured using E00/ E01 piezo controllers. The max driving voltage can be -20~150V; For high-reliability and long-term operation, the recommended driving voltage is 0~120V.
|
|
|
|
