S37 Fast steering mirror, piezo tip tilt platformCurrent Location:Product Homepage >> Fast Steering Mirrors>>S37 Fast steering mirror, piezo tip tilt platform
  • Introduction
  • Feedback

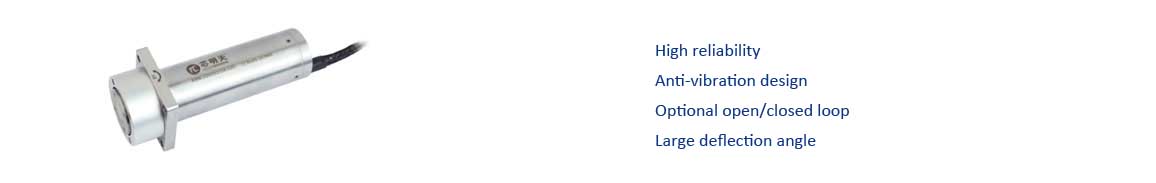

Characteristics


 High reliability

 Anti-vibration design

 High accuracy

 Optional open/closed loop

 Large deflection angle





Tilt Angle Test

Anti-vibration Test

    S37.xxS/KF Technical Data

Types

S-closed loop

K-open loop

S37.T2SF

S37.T2KF

S37.T3SF

S37.T3KF

S37.T4SF

S37.T4KF

S37.T5SF

S37.T5KF

S37.T6SF

S37.T6KF

S37.T8SF

S37.T8KF

Units

Active axis

θX,θY

θX,θY

θX,θY

θX,θY

θX,θY

θX,θY

Drive control

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels

3 driving channels

2 sensing channels

Tilt angle(0~120V)

2.5/±1.25

4/±2

5/±2.5

6.8/±3.4

7.5/±3.75

10/±5

mrad±20%

Max.tilt angle(0~150V)

3.5/±1.75

5.5/±2.75

6.8/±3.4

9.5/±4.75

10/±5

13.5/±6.75

mrad±20%

Integrated sensor

SGS/-

SGS/-

SGS/-

SGS/-

SGS/-

SGS/-

Resolution

0.08(≈0.02″)

/

0.03(<0.01″)

0.15(≈0.03″)

/

0.04(<0.01″)


0.2(≈0.04″)

/

0.05(0.01″)


0.25(≈0.05″)

/

0.07(≈0.01″)


0.25(≈0.05″)

/

0.08(≈0.02″)


0.35(≈0.07″)

/

0.1(≈0.02″)


μrad

Linearity

0.1/-

0.1/-

0.1/-

0.1/-

0.1/-

0.1/-

%F.S.

Repeatability

0.02/-

0.02/-

0.02/-

0.02/-

0.02/-

0.02/-

%F.S.

Unloaded resonant frequency

6.5

6.4

6.3

6.2

6.1

6

kHz±20%

El. capacitance

3.6

5.2

7.2

9

11

14.5

μF±20%

Material

Steel, titanium

Steel, titanium

Steel, titanium

Steel, titanium

Steel, titanium

Steel, titanium

Mass

200

230

250

275

300

350

g±5%

Platform Length

37

46

55

64

73

91

mm±0.1

Specs Sheet Downloa


Step/span>

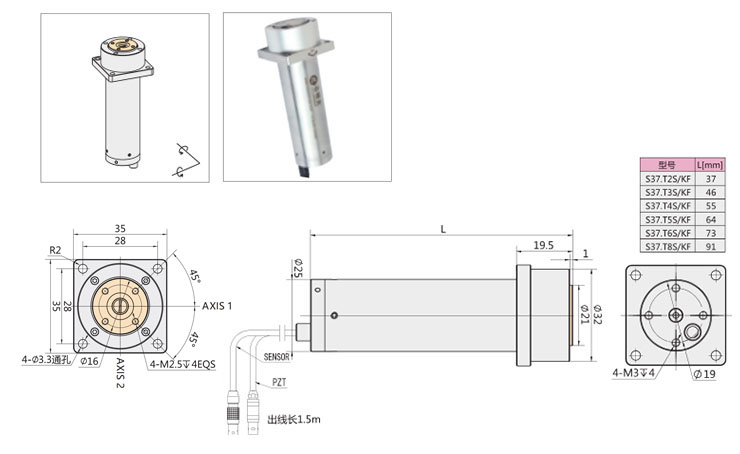

    S37.xxS/KF Drawing(Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Manual
    S37.xxS/KY 尺寸图 (点击图片可放大查看)
点击图片可放大查看
     三维图演示
