S34.T2SY S34.T2SK Piezo tip tilt platform, fast steering mirrorCurrent Location：Product Homepage >> Fast Steering Mirrors>>S34.T2SY S34.T2SK Piezo tip tilt platform, fast steering mirror

Introduction
Feedback

Characteristics

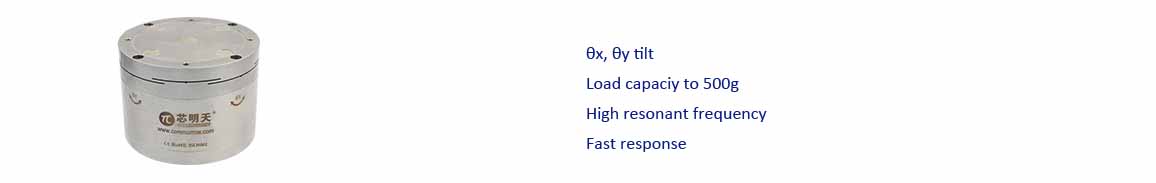

θx, θy tilt

Load capaciy to 500g

High resonant frequency

Fast response

Tilt Travel vs Voltage

Linearity

Technical Data
Type	S-closed loop K-open loop	S34.T2SY	S34.T2KY	Units
Active axes		θx θy	θx θy
Drive control		3 driving channels 2 sensing channels	3 driving channels
Tilt angle(0~120V)		0.8（≈ 165"）	0.8（≈ 165"）	mrad±10%
Max.Tilt angle(0~150V)		1（≈ 200"）	1（≈ 200"）	mrad±10%
Integrated sensor		SGS	-
Resolution		0.05（≈0.01″）	0.02（<0.01″）	μrad
Linearity		0.5	-	%F.S.
Repeatability		0.2	-	%F.S.
Unloaded resonant frequency		2800	2800	Hz±20%
Resonant frequency@500g		600	600	Hz±20%
Step Time		5	3	ms±20%
El. capacitance		14.5	14.5	μF±20%
Material		Steel, Aluminum	Steel, Aluminum
Mass		2000	2000	g±5%

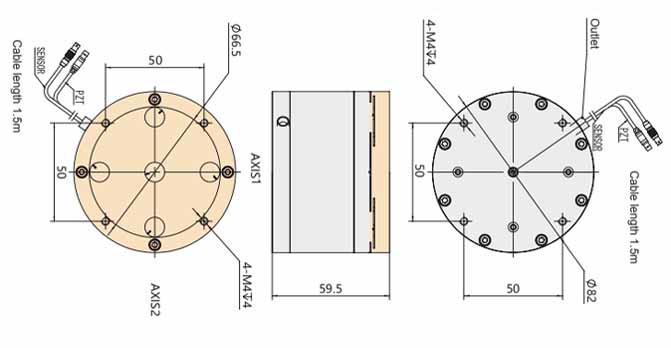

Drawing(Click on the picture to enlarge it)

点击图片可放大查看

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
