P35A Piezo Fast Steering MirrorCurrent Location:Product Homepage >> Fast Steering Mirrors>>P35A Piezo Fast Steering Mirror
  • Introduction
  • Feedback

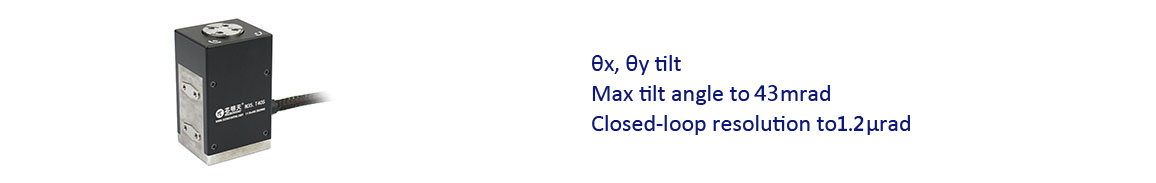

Characteristics


 θx or θx, θy tilt

 Max tilt angle to 43mrad

 Customizable

 Optional closed loop sensor

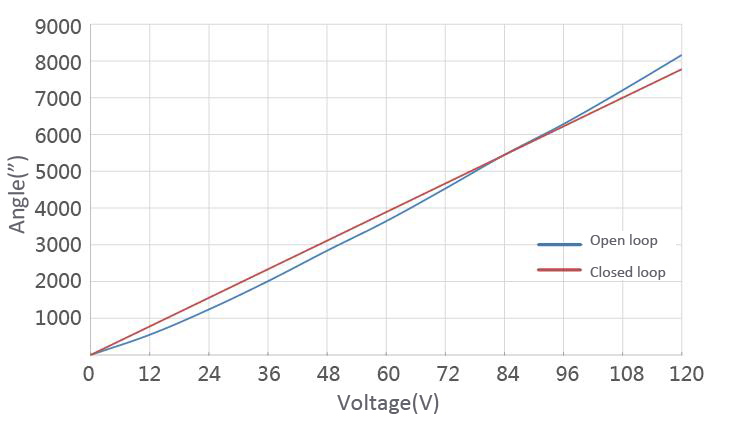

Tilt Angle vs Voltage

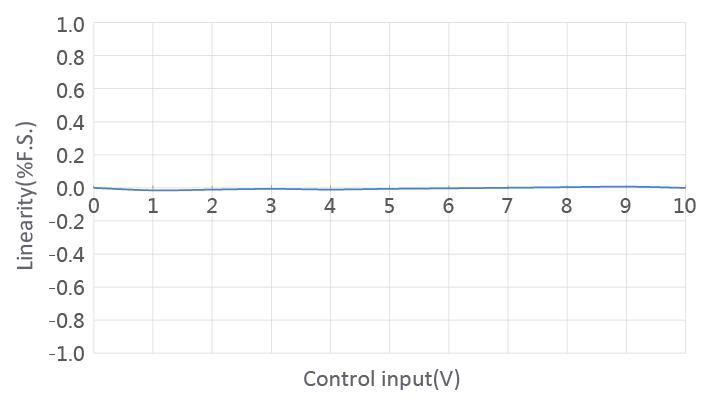

Linearity

    Technical data

Types

S-closed loop

K-open loop

P35A.T40S
P35A.T40K

P35A.T35S
P35A.T35K

P35A.U1S
P35A.U1K

Units

Active axes

θx θy

θx θy

θx



Drive control

3 driving channels

2 sensing channels

3 driving channels
2 sensing channels

2 driving channels
1 sensing channel



Nominal tilt angle(0~120V)

±17.5/axis(≈±3610″)

±14.8/axis(≈±3053″)

±0.60(≈124″)

mrad±20%

Max.tilt angle(0~150V)

±21.5/axis(≈±4435″)

±18.5/axis(≈±3816″)

±0.75(≈155″)

mrad±20%

Integrated sensor

SGS/-

SGS/-

SGS/-



Resolution

1.2(≈0.24″)/0.4(≈0.08″)

1.2(≈0.24″)/0.4(≈0.08″)

1.2(≈0.24″)/0.4(≈0.08″)

μrad

Linearity

0.05/-

0.13/-

0.15/-

%F.S.

Repeatability

0.02/-

θx0.05/θy0.025/-

0.1/-

%F.S.

Unloaded resonant frequency

1300

2000

5400

 Hz±20%

loaded resonant frequency

1050(@Φ12.7×3mm mirror)

1800@Φ12.7×3mm mirror
1100@Φ24.5×3mm mirror

550@350g

Hz±20%

Closed-loop operating frequency(-3dB)

50(@12.7×3mm mirror)

-

200@200μrad/-

Hz±20%

step time

1.4/-

7@Φ12.7×3mm mirror
8@Φ24.5×3mm mirror

2.5@200μrad, 300g/1.5

ms±20%

El. capacitance

7.2/axis

7.2/axis

28.8

μF±20%

Material

Ti

Ti, Al

Invar, Al



Mass

223

155

1050

g±5%

   P35A.T40 Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF

Step

Specs Sheet
Manual

   P35A.T35 Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF
Step

Specs Sheet
Manual

   P35A.U1 Drawing (Click on the picture to enlarge it)
点击图片可放大查看
    Downloads
Auto CAD PDF

Step

Specs Sheet
Manual
