S33.T1SYH Piezo Tip/Tilt PlatformCurrent Location：Product Homepage >> Fast Steering Mirrors>>S33.T1SYH Piezo Tip/Tilt Platform
  • Introduction
  • Feedback

Characteristics

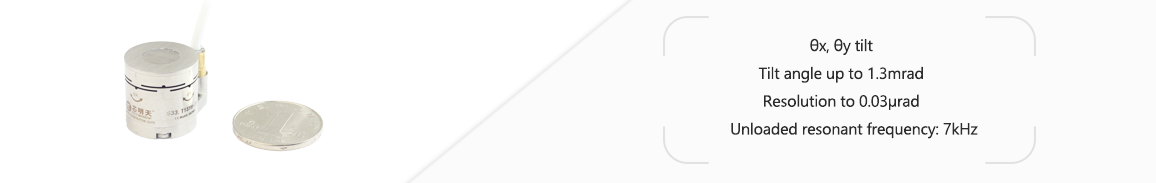

 θx, θy tilt

 Tilt angle up to 1.3mrad

  Resolution to 0.03μrad

  Unloaded resonant frequency: 7kHz

    Technical Data

Type

S33.T1SYH

Units

Active axes

θx、θy



Drive control

3 driving channels
2  sensing channels



Nominal tilt angle(0~100V)

1/±0.5（≈±103″）

 mrad±10%

 MAX.tilt angle(0~120V)

1.3/±0.65（≈±134″）

mrad±10%

Integrated sensor

SGS


Resolution

0.03（＜0.01″）

μrad

 Linearity 0.3 %F.S.
 Repeatability 0.1 %F.S.

Unloaded resonant frequency

7

kHz±20%

El.capacitance

1.6/axis

μF±20%

Material

Steel, Copper alloy


Mass(including wires)

52

g±5%

     Drawing （Click on the picture to enlarge it）
点击图片可放大查看
     Downloads
Auto CAD PDF
Step

Specs Sheet

Manual
