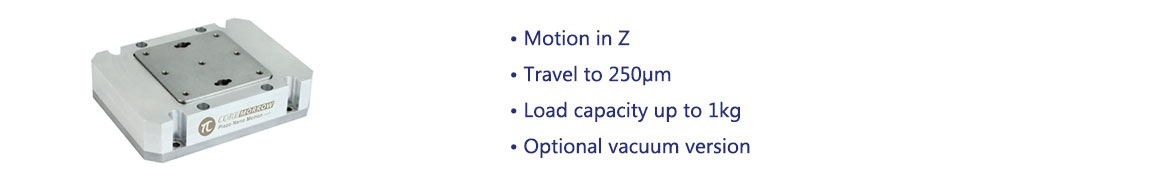

- Introduction
- Feedback

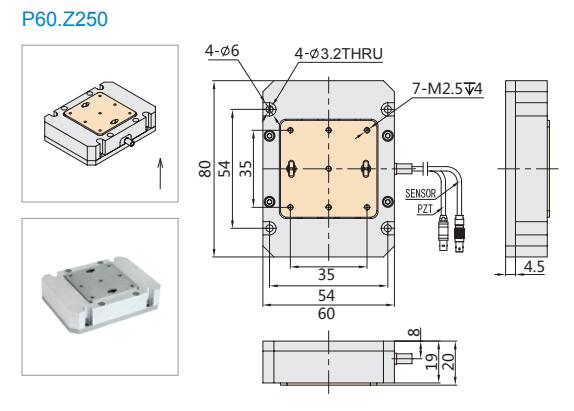

Characteristics
|
|
|
|
|
| Technical Data | ||||
|
Type |
P60.Z250S |
P60.Z250K |
Units |
|
|
Active axes |
Z |
Z |
|
|
|
Drive control |
1 driving channel 1 sensing channel |
1 driving channel |
|
|
|
Travel range(0~120V) |
200 |
200 |
µm±10% |
|
|
Max.travel range(0~150V) |
250 |
250 |
µm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Resolution |
7 |
0.25 |
nm |
|
|
Linearity |
0.4 |
- |
%F.S. |
|
|
Repeatability |
0.1 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
260 |
260 |
Hz±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
|
Vertical |
0.05 | 0.05 | ||
|
Inverted |
0.1 | 0.1 | ||
|
El. capacitance |
21.6 |
21.6 |
μF±20% |
|
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
|
Mass(with no cable) |
0.4 |
0.4 |
kg±20% |
|
|
Vacuum |
1×10^(-5) |
1×10^(-5) |
mbar |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
