Piezo nanopositioning platform plays a vital role in the precision positioning field. It can be integrated into all kinds of high-precision equipment to provide nanoscale motion control, and has a wide range of applications, such as microscanning, optical path adjustment, nanomanipulation technology, laser interference, nanolithography, biotechnology, optical communication, nanomeasurement, micromanipulation, nanoimprint, etc. With the continuous progress of science and technology, the travel range, load, precision requirements for positioning system are also rising. Harbin Core Tomorrow Technology Co., Ltd. continues to strengthen the technical strength and research and development ability, continue to overcome technical barriers and improve product performance, in order to meet the application requirements of large stroke, large load, high precision.

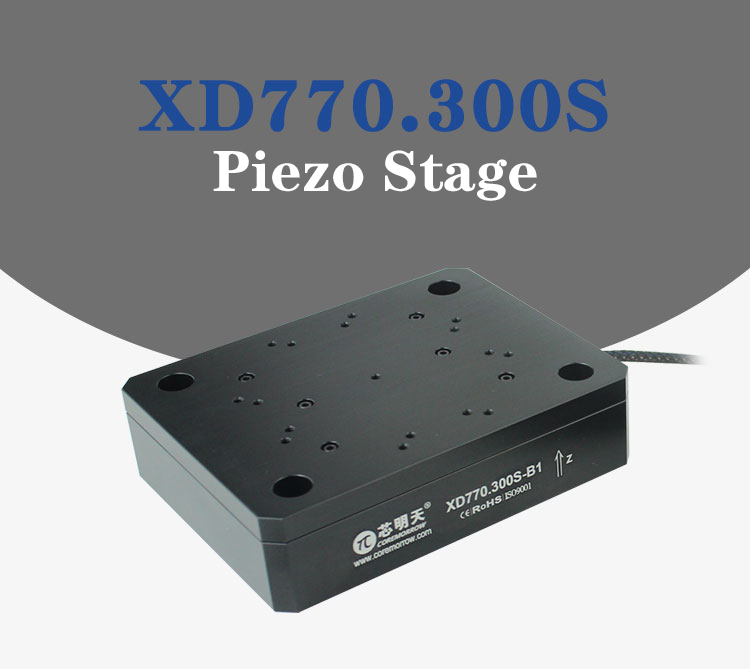

This time we introduce a 1-axis piezo nano-positioning platform with large stroke and large load. XD770.300S with the size (130×100×33) mm^3. The physical appearance is shown in the figure below.
Z Motion, High Load Capacity, Long travel
The XD770.300S piezo nanopositioning platform is a Z axis motion platform, with a travel range of 300μm and a load of up 5kg. It realizes the double improvement of travel range and load capacity, and provides a high-quality solution for applications with large travel and large load at the same time. Work with CoreMorrow piezo controller, to realize high resolution, fast response.
Equipped with Closed-loop Sensor, Higher Accuracy
The piezo nano-positioning platform is equipped with a closed-loop sensor, which can reflect the accurate position of the electric signal feedback, and make real-time adjustment of the motion position of the piezo nano-positioning platform, to provide higher accuracy. The measured results show that its linearity can be up to 0.08%F.S. and repeated positioning accuracy can be up to 0.02%F.S.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Compact Size, Multiple Mounting Holes
With high load capacity, the volume of XD770.300S does not increase too much, but is very compact. On its moving upper surface, there are 16 load mounting holes, which is very easy to install the load.
Technical Data
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Recommended Controller
XD770.300S piezo nano-positioning platform can be driven by CoreMorrow E53.D series single-channel controller, which can be controlled by analog input or upper computer software. It has the characteristics of small size and easy integration.
