Characteristics
• Integrated
• 12-channel output
• Output voltage 0~120V
• Closed loop servo control
• Drive 4 piezoelectric deflection mirrors at the same time

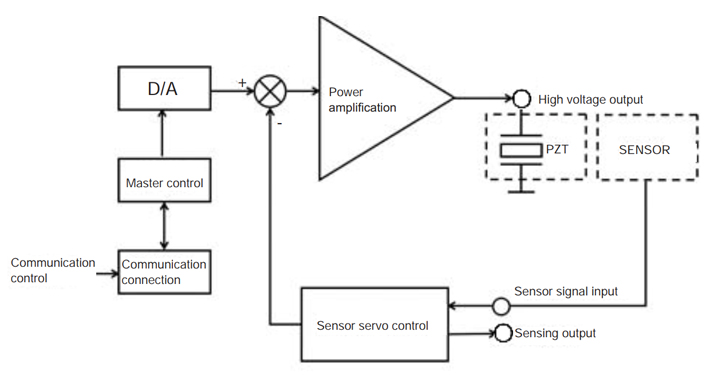

Driving Principle

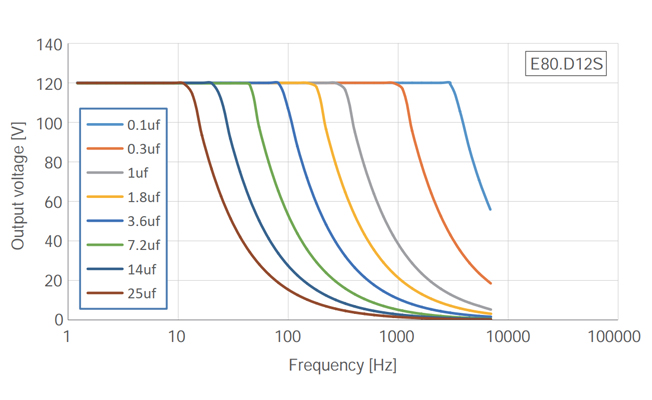

Frequency Load Curve
Technical Data
Model: E80.D12S
Function: Digital integrated piezoelectric controller
Number of channels: 12
Output voltage: 0~120V
Output voltage ripple: <5mV/channel@2.2μF
Sensor type: SGS/LVDT
Servo characteristics: analog P-I
Sensing output ripple: 10mV
Communication interface: RS-422
Processor: ARM 32 bit
D/A converter: 16 bits
Overcurrent protection: Yes
Heat dissipation method: shell heat dissipation
Size: 292×232×35mm
Weight: 1.9kg
Power supply voltage: 24~30V DC
Operating temperature: 0~+50℃
For different applications of piezoelectric nanopositioning products, there will be different parameter requirements for piezoelectric controllers. CoreMorrow has a variety of standard piezoelectric ceramic controllers, which can provide suitable solutions for different applications such as scientific research, experiment, and industry. At the same time, we also provide customized services for piezoelectric ceramic controllers according to specific requirements such as output voltage, frequency, power, volume and other special parameters requirements.
