The 32-channel E82.C32K series piezoelectric ceramic controller has a USB communication interface to realize real-time communication with the host computer. 32 channels voltage output can be controlled by the upper computer, and the real-time voltage can be read through AD. It also supports the secondary development of the upper computer software. The upper computer communication software can set voltage parameters.
Features
32 channels
The average current reaches 13mA/channel
USB communication
Bandwidth up to 1kHz
Support secondary development

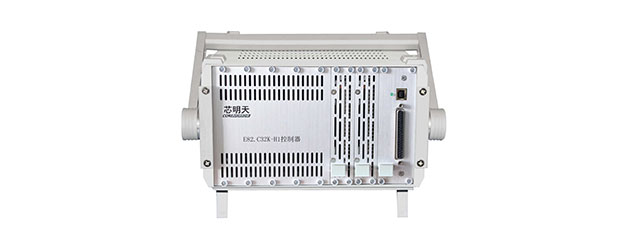

Panel Introduction

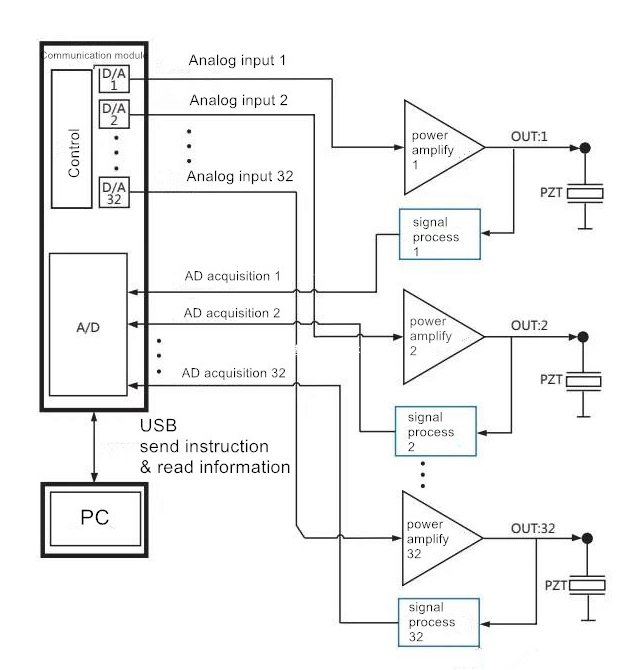

Principle Block Diagram
Technical Parameter
Model: E82.C32K
Function: Piezo Controller
Output voltage range (V): 0~100
Communication interface: USB
Peak current (mA): 170/channel
Average current (mA): 13/channel
Amplifier bandwidth (Hz): 1k/channel
Output ripple voltage (mVpp): 10/channel
Operating temperature range (℃): 0~50
Over-temperature protection range (℃): 70±5 Piez controller stops working
Over temperature protection recovery (℃): 60±5
Power supply: 220VAC
Control output connector: D-SUB
Dimensions (mm): 280×370×175
Weight (kg): 1
