E51 is a multi-model, multi-channel optional closed-loop piezoelectric controller designed for multi-channel drive applications. It is used to drive piezoelectric tilt, yaw, differential drive and other systems. The controller uses special operational amplifier circuit to ensure high voltage and large current output, and the power supply part uses switching power supply technology. Reliable circuit optimization and anti-interference design ensure high frequency response speed. Applications include precision calibration and automation, semiconductor technology, photonics, bio-nanotechnology, metrology, microscopy, micromanipulation, etc.

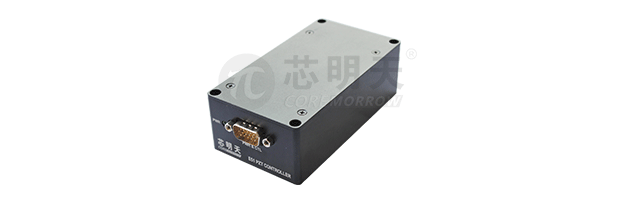

E51.B3S

E51.B3S is 3-channel closed-loop controller, it is small and compact, only 110×36×60mm, analog input control, simple connection control method, optimized sensor servo module improves the accuracy and stability of PI adjustment and control. It can drive piezoelectric actuator, piezoelectric nano positioning stage, piezoelectric fast steering mirror, etc.

· Three-channel closed loop

· Analog control

· Output voltage 0~120V

· Average current 25mA

· Bandwidth 1kHz

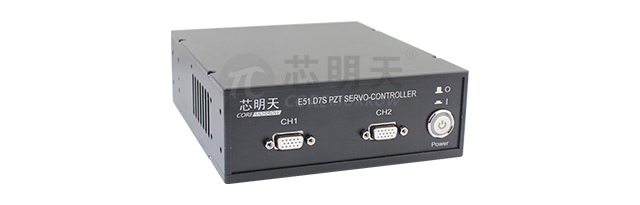

E51.D7S

E51.D7S is low-power, low-ripple, 7-channel closed-loop piezoelectric controller designed for small-volume, multi-channel applications. It is compact and easy to integrate. Digital signal control, while software supports secondary development. It can drive piezoelectric actuator, piezoelectric fast steering mirro, piezoelectric objective scanners, etc.

· 7 channels closed loop

· digital control

· Output voltage 0~120V

· Average current 25mA

· Bandwidth 1kHz

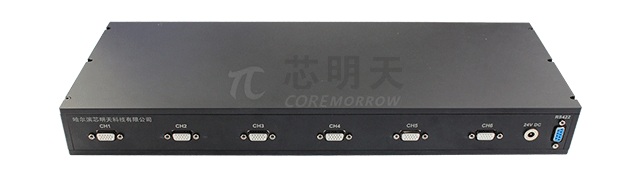

E51.D12S

E51.D12S is high-power, high-bandwidth 18-channel closed-loop piezoelectric controller, which is controlled by the host computer software, and the host computer software supports secondary development, which is convenient and fast. RS-422 communication interface is easy to connect and can drive multiple piezoelectric deflection mirrors simultaneously.

· 18 channels closed loop

· digital control

· Output voltage 0~120V

· Average current 25mA

· Bandwidth 1kHz

Standard and customized versions

CoreMorrow has more than 10 years of R&D experience in piezoelectric nanotechnology, can provide customers with suitable solutions for different applications such as scientific research, experiment, industry, etc., and can provide customized services for piezoelectric ceramic controllers, customized according to specific requirements Output voltage, frequency, power, size and other parameters.
