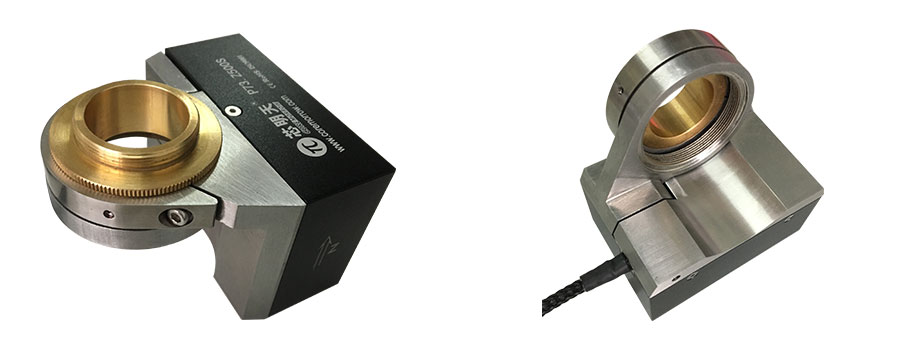

P73 is large-stroke piezo objective scanner. The linear movement range of Z axis could be selected from 200μm, 500μm, and 1mm. It adopts flexible hinge design mechanism, which has no friction, good linearity of motion, and high positioning accuracy of closed-loop models. Separate screw adapter design, can be adapted to a variety of microscopes, widely used in large-scale microscopic imaging, two-photon microscope and other fields.
Features
• Optional travels: 200μm/500μm/1mm
• Capacity: 0.4kg
• Millisecond response time
• Closed loop for higher repeatabilit
• Excellent focus stability

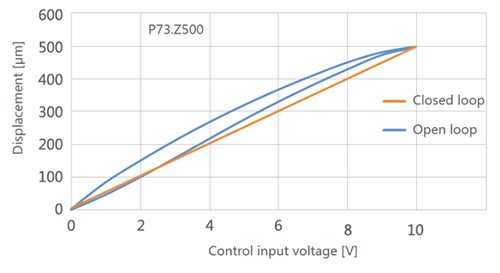

Open/Closed-loop Curves(with 200g load)

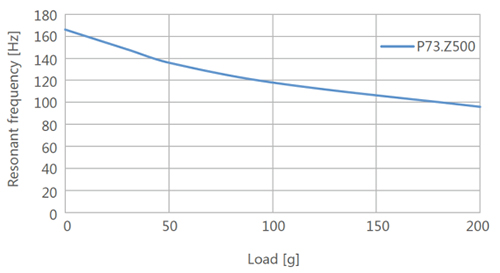

Frequency and Load Curve

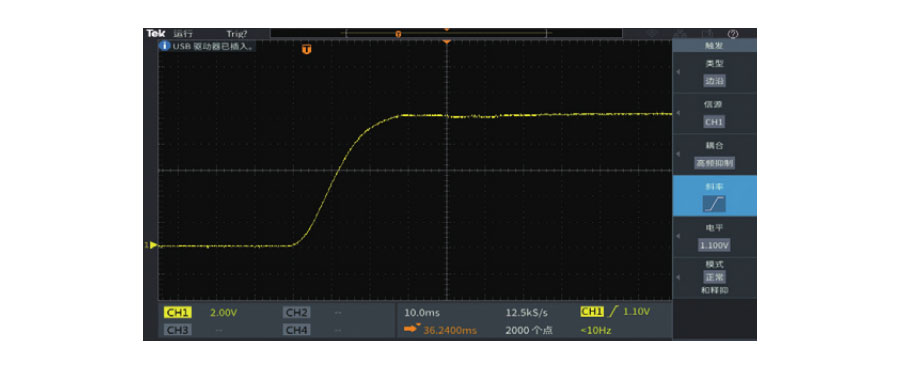

Closed-Loop Step Time
Thread Adapter for Easy Integration

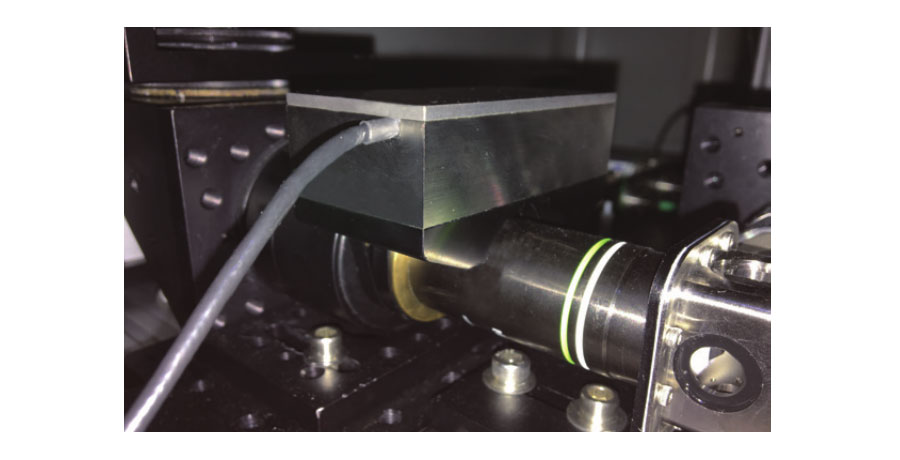

P73 series objective positioner is connected to the objective lens through an adapter to quickly make the objective lens in the desired position. A variety of thread adapters are available, such as M27×0.75, M26×0.75, M26×1/36”, M25×0.75, W0.8×1/36”, etc., which can also be customized for easy integration with the microscope.
Typical Applications

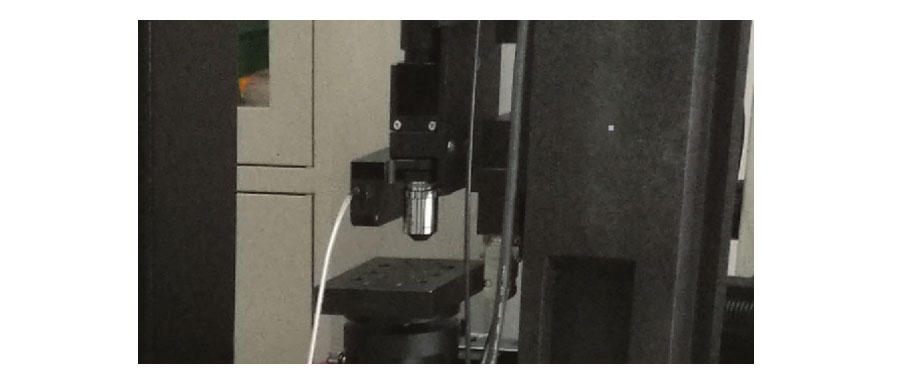

· 3D imaging · Interference/metering · Semiconductor test
· Biotechnology · Surface structure analysis · Confocal microscope
Surface Analysis
Fluorescence microscopy
Technical Data
Models |
Suffix S-Closed loop |
P73.Z200S P73.Z200K |
P73.Z500S P73.Z500K |
P73.Z1000S P73.Z1000K |
Units |
Active axis |
Z |
Z |
Z |
|
|
Travel range(0~120V) |
160 |
400 |
800 |
μm±20% |
|
Travel range(0~150V) |
200 |
500 |
1000 |
μm±20% |
|
Sensor type |
SGS/- |
SGS/- |
SGS/- |
|
|
Resolution |
11/5 |
18/7 |
- |
nm |
|
Linearity |
0.1/- |
0.1/- |
- |
%F.S. |
|
Repeatability |
0.05/- |
0.05/- |
- |
%F.S. |
|
Push/pull force |
80/10 |
80/10 |
- |
N |
|
Stiffness in motion direction |
0.25 |
0.2 |
0.2 |
N/μm±20% |
|
Unloaded resonant frequency |
280 |
170 |
- |
Hz±20% |
|
Unloaded step time |
20/10 |
20/10 |
- |
ms±20% |
|
Closed-loop unloaded operating frequency |
10% travel |
40 |
40 |
- |
Hz±20% |
100% travel |
10 |
10 |
- |
||
Load capacity |
0.2 |
0.4 |
0.12 |
kg |
|
El.capacitance |
7.2 |
14 |
43.2 |
μF±20% |
|
Material |
Steel, Al |
Steel, Al |
Steel, Al |
|
|
Mass |
360 |
450 |
900 |
g±5% |
