Piezo phase shifter is a phase shifting device based on the principle of piezoelectric effect, with built-in high-performance piezo ceramics, which can realize the phase shifting function by applying voltage to piezo ceramics to generate micro-motion. Due to the high precision and fast response speed of piezo ceramics, nanoscale stepping motion and millisecond fast response can be generated to achieve high-precision and fast phase shifting. It can carry out phase modulation more accurately, and is widely used in many fields such as optics, communication, and medical treatment.

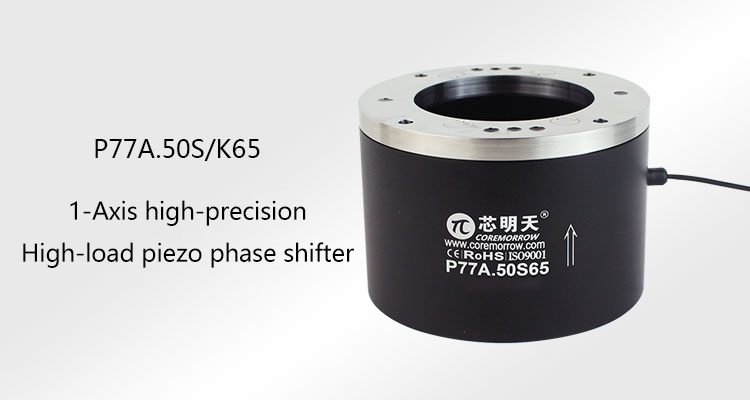

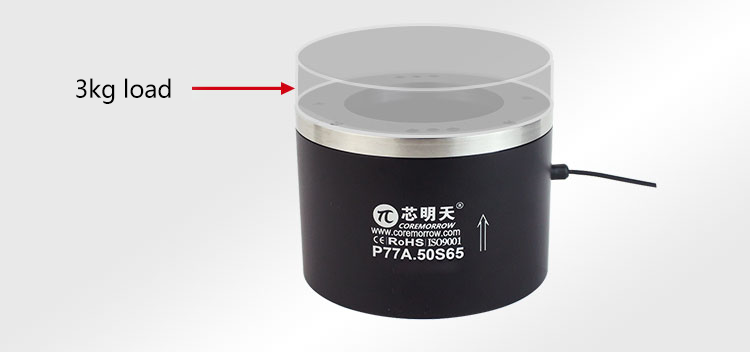

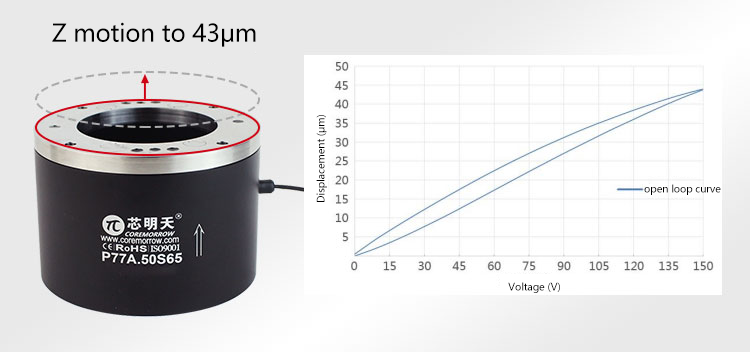

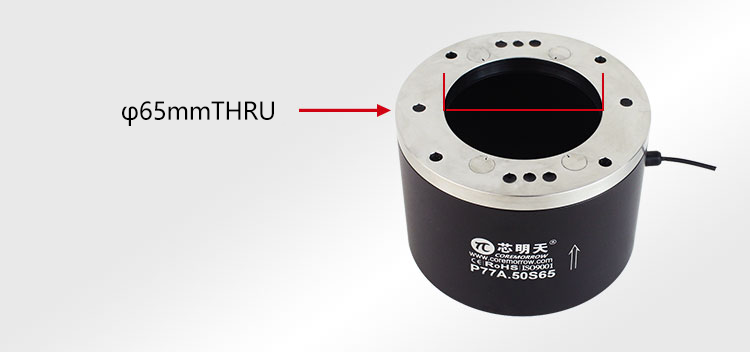

P77A.50S/K65 is a 1 axis Z-motion piezo phase shifter with high precision and high load capacity. It can travel to 43μm and carry 3kg. Equipped with closed-loop sensor, it has a resolution up to 1.5nm. It is a hollow cylinder, the size of the through hole is 65mm. Horizontal mounting, vertical mounting, and inverted mounting are available to choose. The product is shown in the following figure.
Characteristics

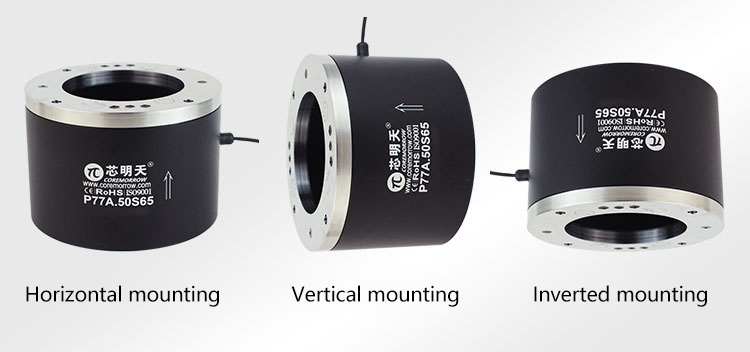

The load carrying capacity varies according to the mounting mode, and please do not exceed the load carrying capacity under the corresponding mounting mode.
Application
CoreMorrow piezo phase shifters provide nano-scale high-precision phase modulation in radar systems, communication systems, optical interference and other applications. In addition, they can also be used in microscopic imaging, surface inspection and other applications to provide precision motion control at the nanoscale.
Note: The picture comes from the Internet
Technical Data
Model |
|
|
Active axis |
|
|
Sensor |
|
|
Travel range(0~120V) |
|
|
Max. travel range(0~150V) |
|
|
Aperture |
|
|
OD |
|
|
Height |
|
|
Resolution |
|
|
Pitch/yaw/roll |
|
|
Pull/push force |
|
|
Unloaded resonant frequency |
|
|
Unloaded step time |
|
|
Load capacity |
Horizontal mounting |
|
Vertical mounting |
|
|
Inverted mounting |
|
|
El. capacitance |
|
|
Material |
Steel, Alluminum |
|
Mass |
|
|
Working temperature |
|
|
Cable length |
|
Recommended Controller

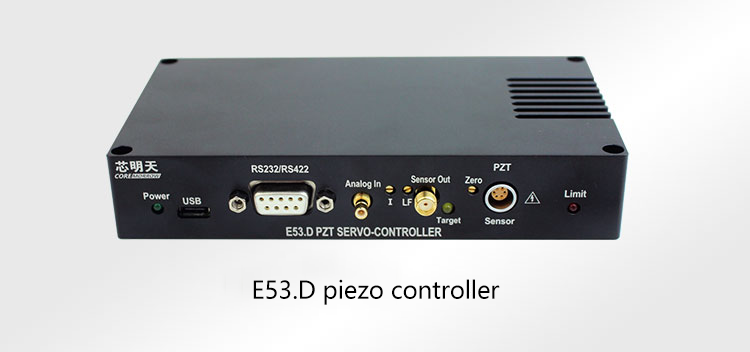

E53.D piezo controller is ideal for driving P77A.50S/K65 piezo phase shifter. It is a single-channel controller with small size, high power, low power consumption, high bandwidth, and low ripple noise. Its band with can be up to 10kHz, 24VDC/1.5A power supply. It has a compact size of 148×27.5×80mm^3 with 350g weight. It has a cooling area, which can quickly export the generated heat. The upper computer software supports secondary development.
